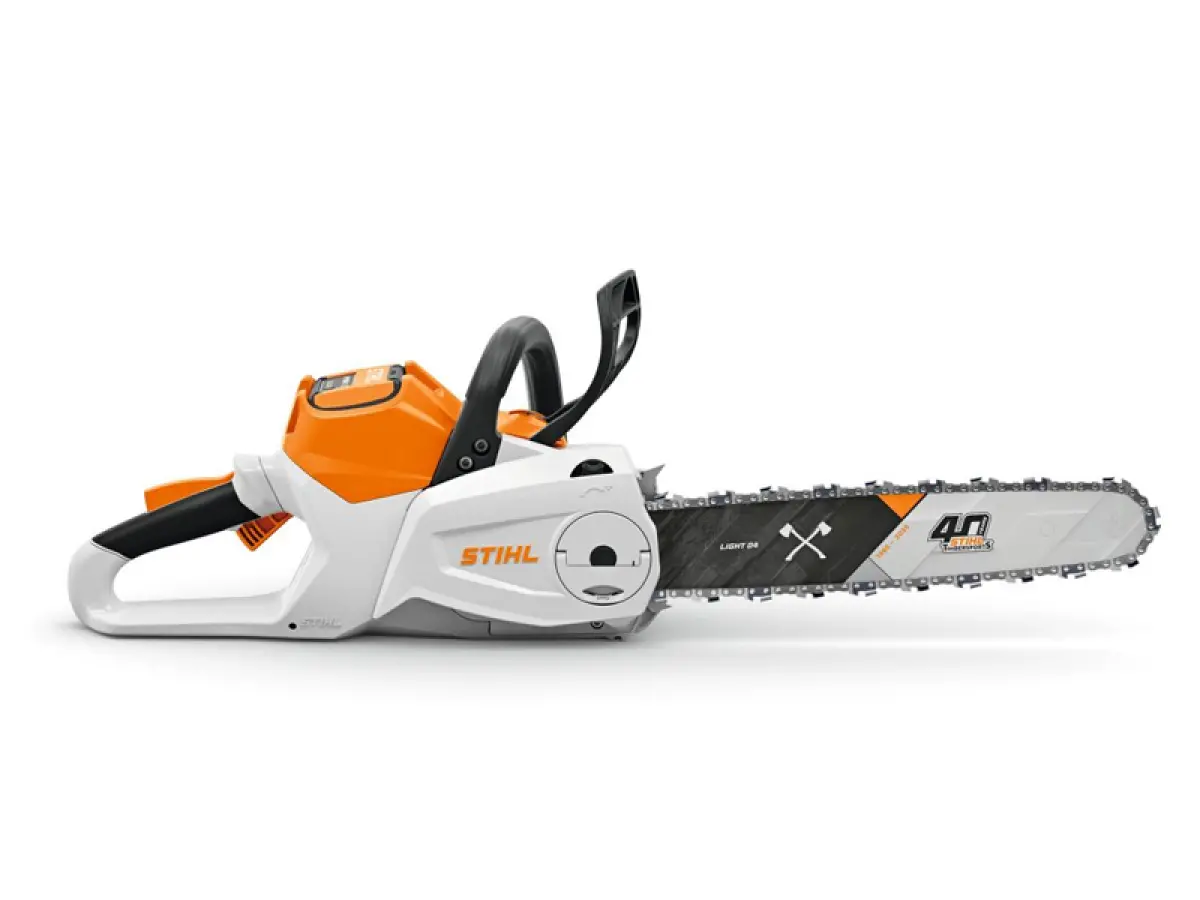

Stihl MSA 220 C-B Battery Chainsaw 40 Years of STIHL TIMBERSPORTS Edition

Compatible with AP and AR series batteries

• The powerful STIHL MSA 220 C-B battery chainsaw, equipped with a professional cutting unit, is perfect for felling small trees, limbing, cutting to length, and tree care
• The chainsaw comes with a high-performance, low-kickback STIHL 3/8" PS3 Pro chain mounted on a commemorative bar celebrating 40 years of STIHL TIMBERSPORTS
• This full-chisel chain stands out for its excellent cutting performance and high-quality finish
• With the STIHL MSA 220 C-B, you can work even in noise-sensitive areas, both in green maintenance and craft applications
• In woodworking, the emission-free, low-maintenance EC motor allows you to operate indoors thanks to its quietness
• Maximum cutting power is achieved by combining the high-performance EC motor with the STIHL AP 300 S battery
• The ergonomic handle and comfortable rear grip ensure safe and comfortable work

SOLD WITHOUT BATTERY AND CHARGER

TECHNICAL DATA

CHAINSAW

Rated voltage: 36 V
STIHL Oilomatic chain type: Picco Micro 3
Pitch: 3/8" P
Bar length: 40 cm
Weight: 2.9 kg (without battery, bar and chain)
Total weight: 3.6 kg
Sound pressure level: 89 dB(A)
Sound power level: 100 dB(A)
Vibration value left/right: 4.8/3.6 m/s²
Chain pitch: 1/4" P

BATTERY

Recommended battery: AP 300 S
For cutting solid wood 10x10 cm (with battery AP 200): 150 cuts
To cut solid wood 10x10 cm (with battery AP 300): 200 cuts
To cut solid wood 10x10 cm (with battery AP 300 S): 270 cuts
Operating time with battery AP 200 (STANDARD performance): 42 minutes
Operating time with battery AP 300 (OPTIMAL performance): 35 minutes
Operating time with battery AP 300 S (MAXIMUM performance): 37 minutes
Operating time with battery AP 500 S (MAXIMUM performance): 48 minutes
Operating times with backpack battery AR 2000 L (ULTRA performance): 220 minutes
Operating times with  backpack battery AR 3000 L (ULTRA performance): 310 minutes

EQUIPMENT

Tool-free tank cap
Special oil tank cap designed for easy opening and closing without difficulties

Quick chain tensioner (B)
Easy chain tensioning

 QuickStop Super chain brake (Q)
Exclusive STIHL braking system ensuring enhanced safety. The chain stops instantly, not only in case of a strong kickback or activation of the front hand guard, but also when releasing the rear handle

EC Electric Motor
The electronically controlled EC electric motor operates brushless, experiences minimal mechanical wear, and impresses with a significantly higher efficiency compared to traditional electric motors.

Quiet
Products in the COMPACT line are so quiet that no hearing protection is required
