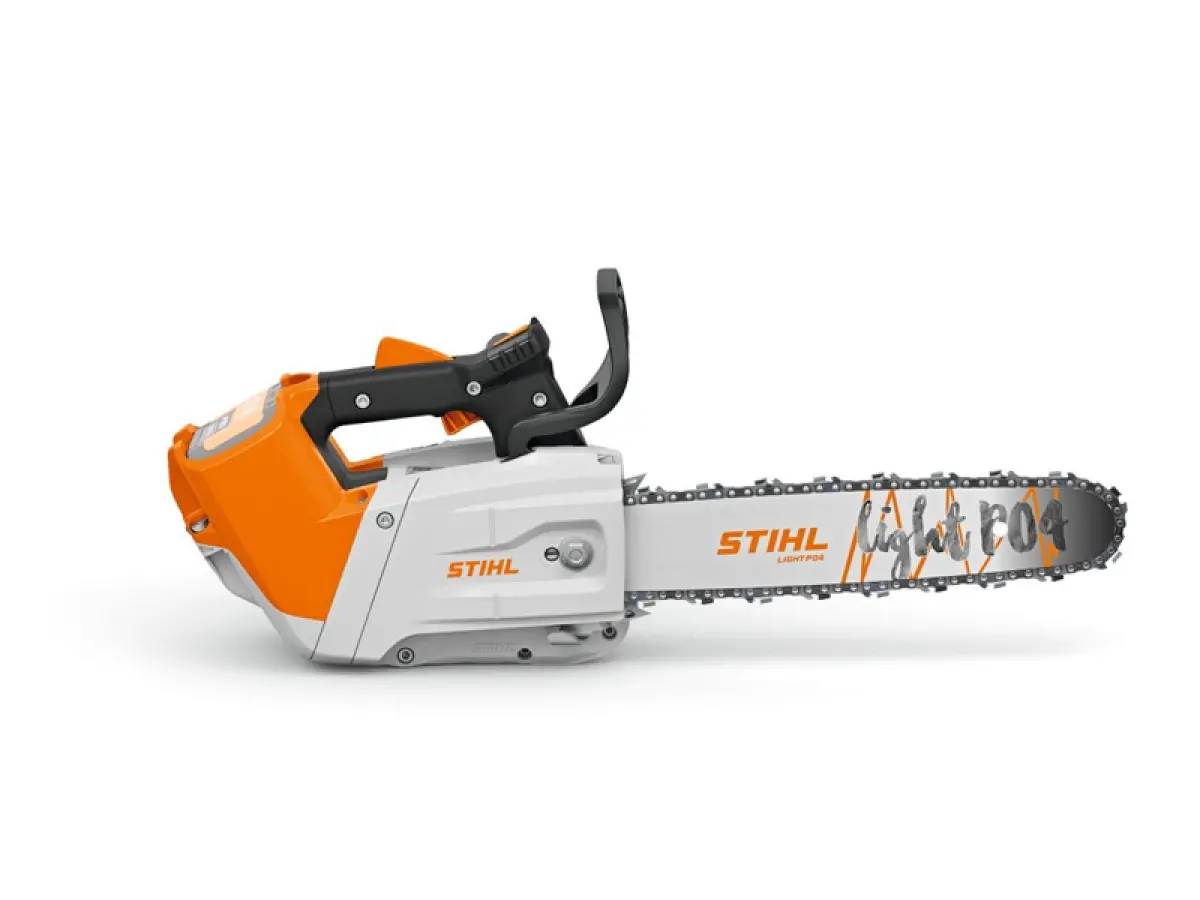

Stihl MSA 220 T Cordless Chainsaw

Compatible with AP series batteries

• The powerful STIHL MSA 220 T battery chainsaw stands out in tree care thanks to its powerful EC motor
• When combined with the powerful STIHL AP 300 S battery, it achieves particularly high cutting capacity
• Using this chainsaw with that battery, the STIHL MSA 220 T is one of the most powerful top-handle chainsaws in the STIHL range
• Thanks to the electronic control system with status LED and the mechanical chain brake, also with status LED, operation is particularly intuitive
• The LEDs are grouped in a 180° display cockpit, so you are always quickly informed about the status of your tree care chainsaw
• The robust metal-toothed claw secures the chainsaw to the wood, allowing precise cuts with ease
• The cooling air is cleaned by a fleece filter, providing long-term protection for the electronics and motor parts; the cooling air filter can be cleaned quickly and effectively
• In case of intensive use or a depleted battery, the power electronics automatically reduce the current and thus the torque via de-rating
• Bar length: 30 / 35 cm
• Weight: 3.3 kg
• Rated voltage: 36 V
• Recommended battery for optimal performance: AP 300 S
• Number of cuts (wood 10x10 cm) with battery AP 300 S: up to 270 cuts
• Operating time with battery AP 300 S: up to 50 minutes



Sold without battery and charger

35 cm bar and 1/4" P chain included
LIGHTP04 bar 3/8"  P 1.3 mm 50 links
PM3 chain 3/8" P 1.3 mm 50 links

30 cm bar and 1/4" P chain included
ROLLOMATIC E MINI bar 1/4"  P 1.1 mm 64 links
PM3 chain 1/4" P 1.1 mm 64 links

TECHNICAL DATA

Nominal voltage: 36 V
Max voltage: 40 V
Power consumption: 2.10 kW
Power: 1.70 kW
Battery system: AP
Device weight without battery: 2.7 kg
Bar length: 30 / 35 cm
Groove width: 1.30 mm
Chain pitch: 3/8"P
Protection rating IP: IPX4
Sound pressure level: 94 dB(A)
Sound power level: 104 dB(A)
Vibration value left: 3 m/s²
Vibration value right: 3.4 m/s²


BATTERY
Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with battery AP 20: up to 12 minutes
To saw squared wood (10x10 cm) with battery AP 20: up to 115 cuts
To saw squared wood (10x10 cm) with battery AP 30: up to 28 minutes
To saw squared wood (10x10 cm) with battery AP 30: up to 280 cuts
To saw squared wood (10x10 cm) with battery AP 200 S: up to 16 minutes
To saw squared wood (10x10 cm) with battery AP 200 S: up to 150 cuts
To saw squared wood (10x10 cm) with battery AP 300 S: up to 29 minutes
To saw squared wood (10x10 cm) with battery AP 300 S: up to 290 cuts
To saw squared wood (10x10 cm) with battery AP 500 S: up to 34 minutes
To saw squared wood (10x10 cm) with battery AP 500 S: up to 340 cuts

EQUIPMENT

Velcro filter
The new MSA 300's velcro air filter ensures consistent performance, even under the highest loads. Its extremely fine-pored filtering material keeps even the finest dust and dirt away from the power electronics and electric motor. To clean, spray the removed air filter with STIHL Varioclean, after a short waiting time wash it with lukewarm water and let it dry. It is then ready for use again

Side chain tensioning
The side chain tensioner allows simple, quick, and safe chain tensioning and replacement. The tensioning screw is operated from the side through the sprocket cover

EC motor
Thanks to its compact design, low weight, and high functionality, the EC motor enables energy-efficient operation. Additionally, this motor is distinguished by its long service life

Two-hand control
The STIHL chainsaw features an ergonomic tubular handle and a comfortable rear control grip made with soft components.
