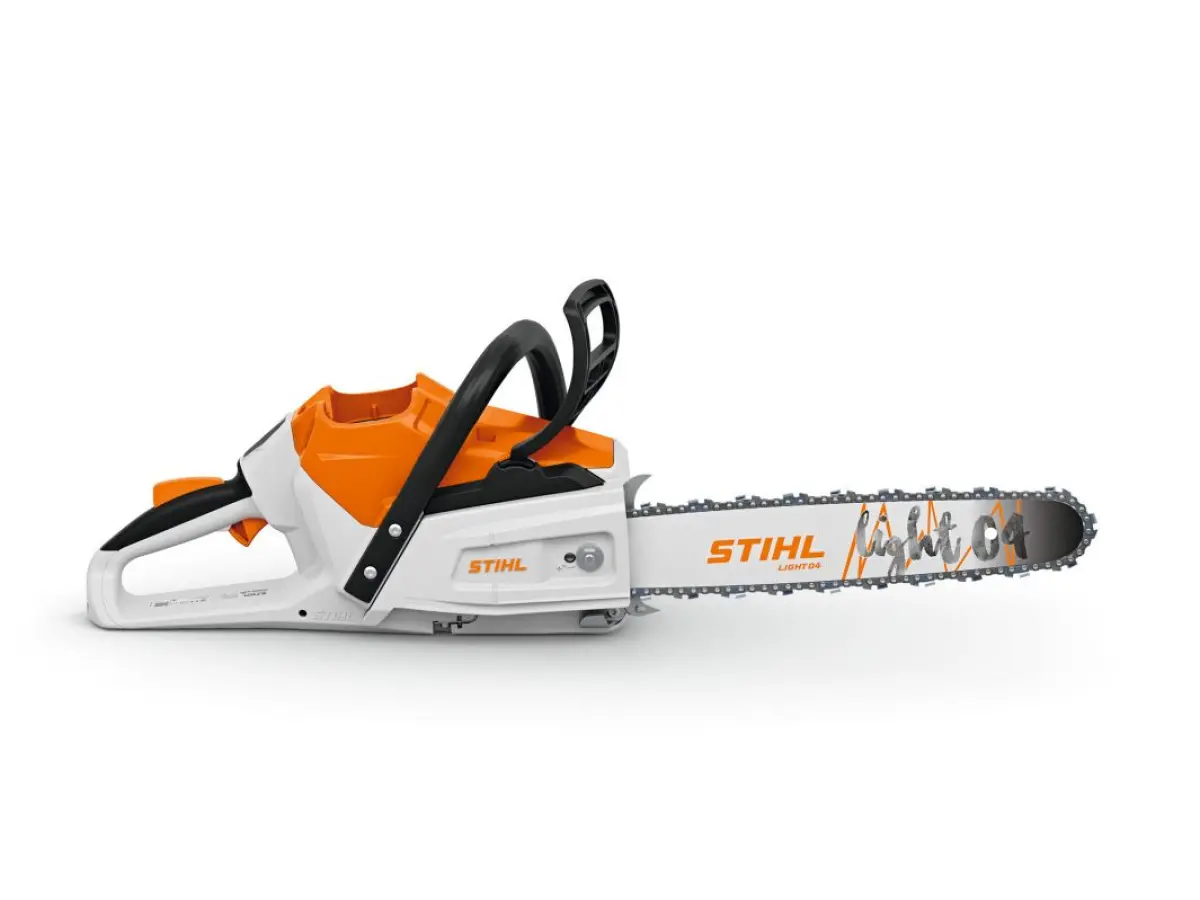

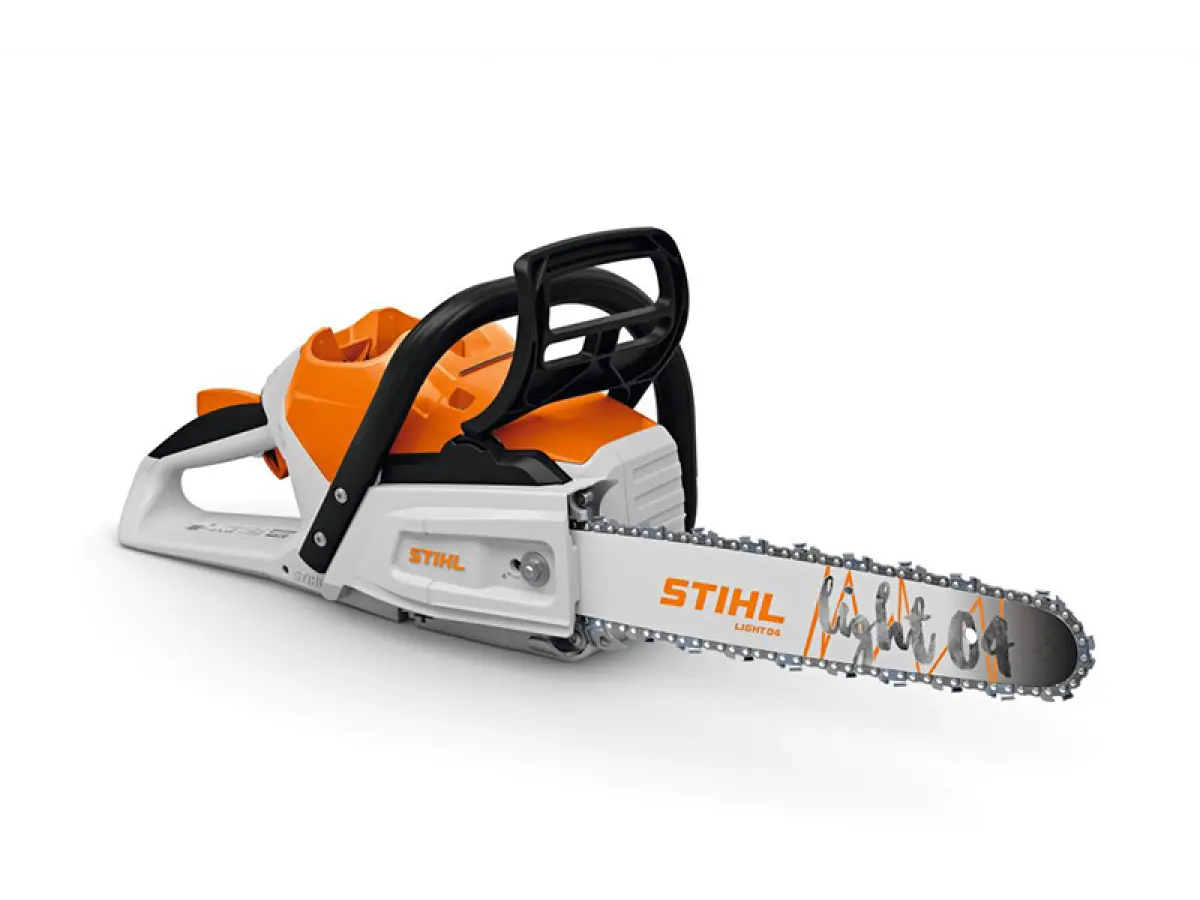

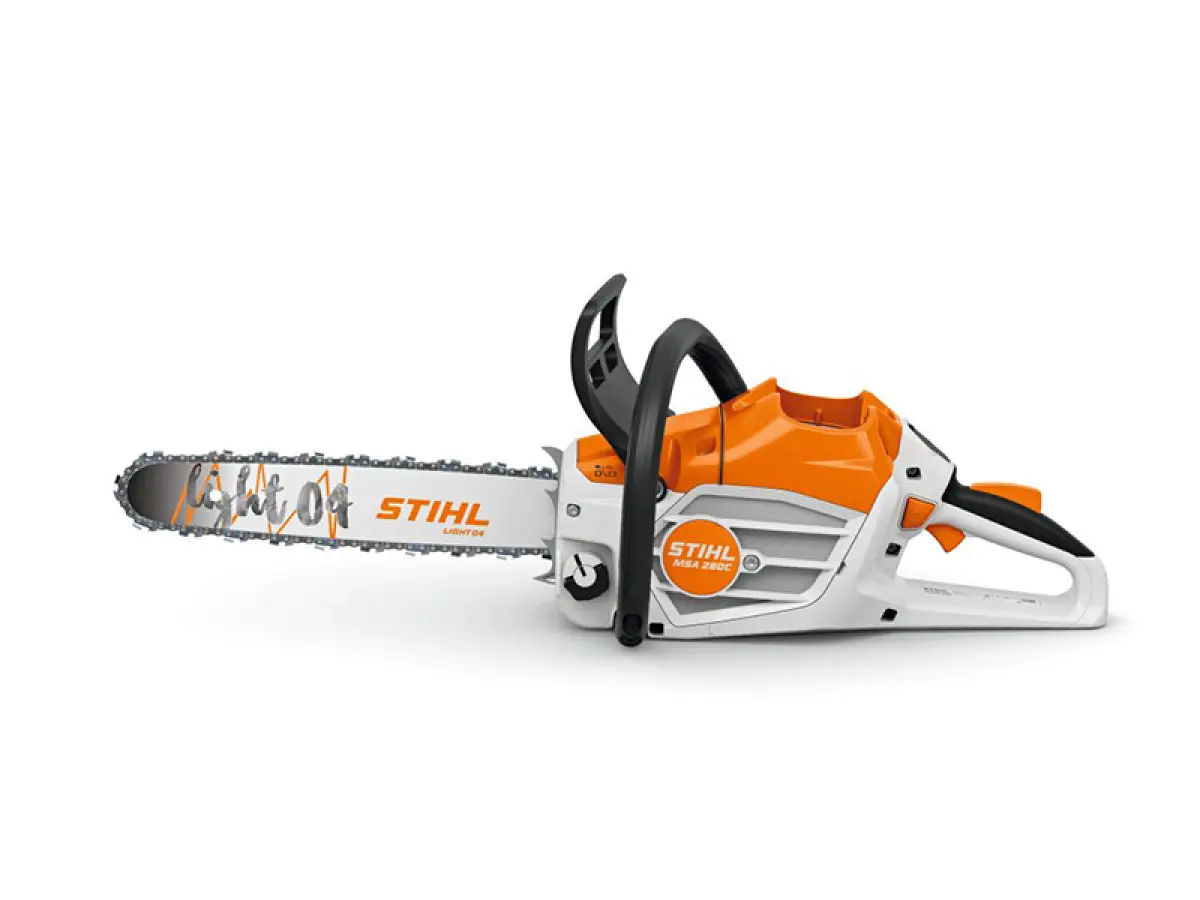

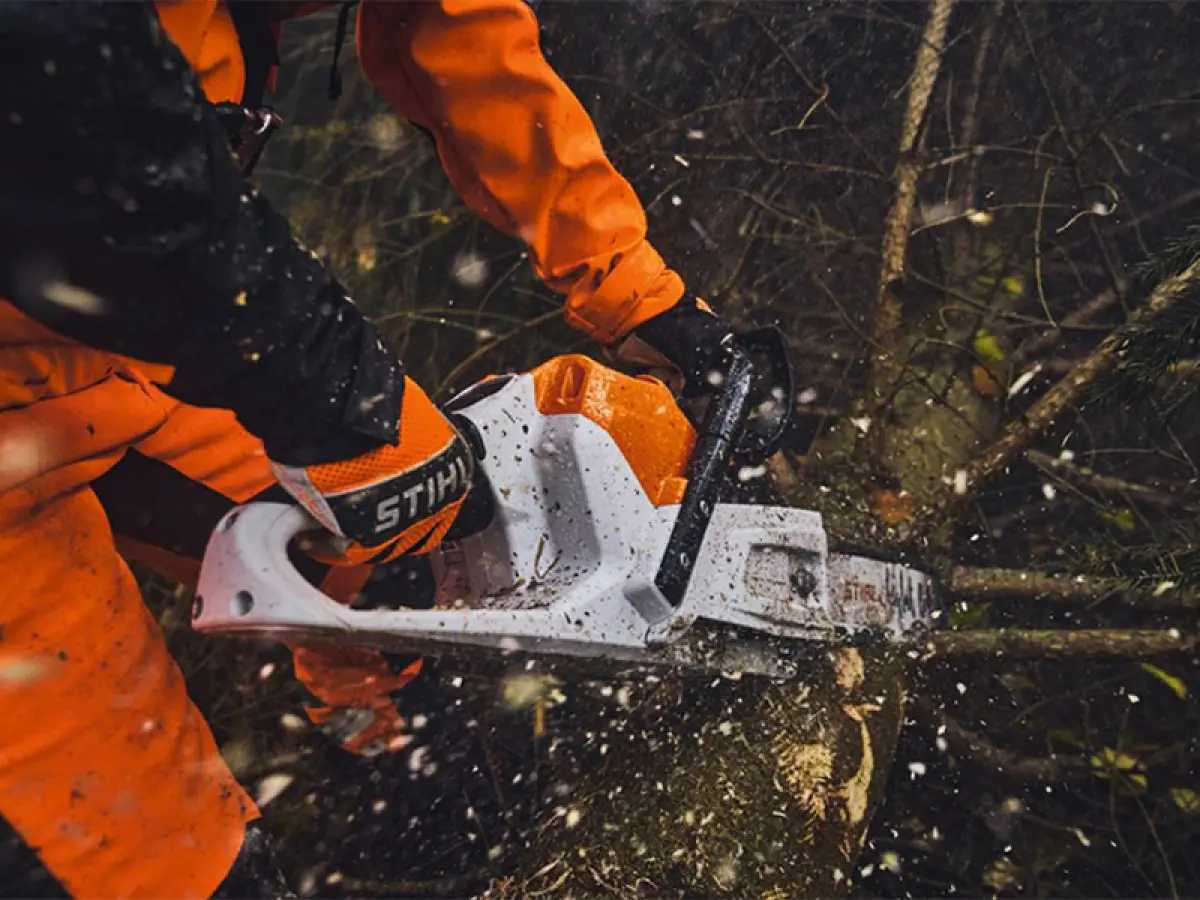

Stihl MSA 260 C-O Battery-Powered Chainsaw

• With the STIHL MSA 260 C-O battery chainsaw from the STIHL ALLPRO system, gardening, forestry, and municipal service professionals can perform their work with exceptional efficiency
• The excellent power-to-weight ratio of the chainsaw makes it particularly efficient for felling and pruning small to medium-sized trees
• The combination of high mechanical performance and low weight ensures effective and long-lasting work, even during extended work sessions. The interchangeable sprocket allows easy switching between 3/8" P and .325" pitch. This enables the MSA 260 CO chainsaw to be optimally adapted to different applications. For maximum energy efficiency, the motor starts in just 5 seconds. If the motor is started but work cannot begin immediately, it automatically switches off after a short interval, saving energy
• The oil sensor constantly measures the amount of oil in the chain, allowing you to work with minimal interruptions. This also reduces the amount of oil needed for the job
• The STIHL MSA 260 CO battery chainsaw is IPX4 certified, meaning it is protected against water splashes and can be used even in the rain

35 cm bar and 3/8" P chain included
LIGHT 04 35 cm 3/8 P 1.1 mm 50-link chainsaw bar
PS3 PRO 35 cm 3/8 P 1.1 mm 50-link chainsaw chain

40 cm bar and 3/8" P chain included
LIGHT 04 40 cm 3/8 P 1.1 mm 55-link chainsaw bar
PS3 PRO Chainsaw Chain 40 cm 3/8 P 1.1 mm 55 Links

TECHNICAL DATA

CHAINSAW
Nominal voltage: 36 V
Maximum voltage: 40 V
Power consumption: 2.39 kW
Performance: 2 kW
Device weight without battery: 3.7 kg
System weight without battery: 4.28 / 4.36 kg
Guide bar length: 35 / 40 cm
Groove width: 1.10 mm
Chain pitch: 3/8"P
Device length, including claw stop: 463 mm²
Sound pressure level: 89 dB(A)
Sound power level: 97 dB(A)
Vibration value left: 2.9 m/s²
Corrected vibration value: 2.7 m/s²
Protection rating IP: IPX4

BATTERY
Battery system: ALLPRO/AP
Recommended battery: AP 200 S
Maximum battery life AP 30: 34 min
Maximum battery life AP 200 S: 24 min
Maximum battery life AP 300 S: 26 min
Maximum battery life AP 500 S: 36 min

EQUIPMENT

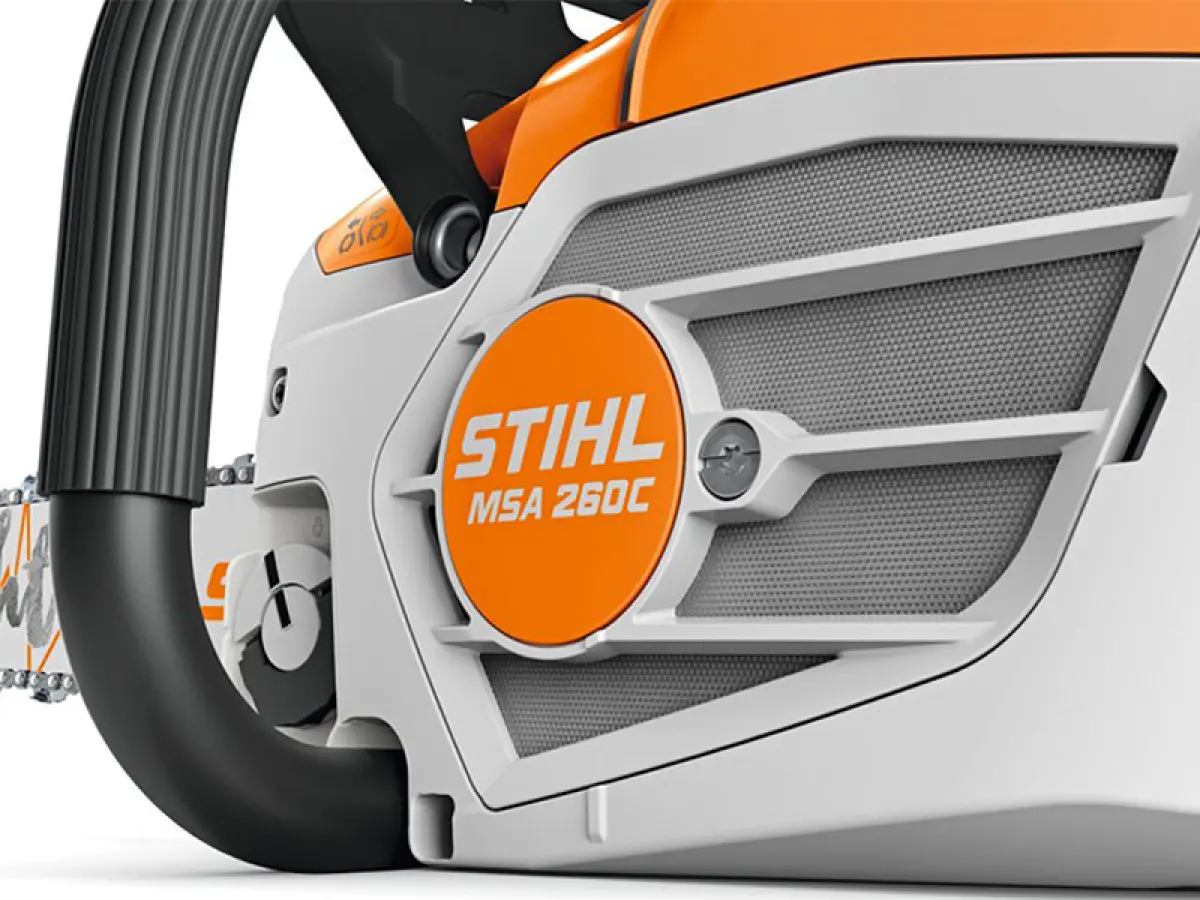

LATERAL CHAIN TENSION
For easy and secure tightening. The lateral chain tensioning allows you to safely, easily, and quickly retension and replace the chain. The tensioning screw is operated laterally through the sprocket cover



CONTROL LEVER WITH POTENTIOMETER FUNCTION
For greater ease of handling. Using the control lever with potentiometer function, it is possible to continuously adjust the speed of the battery chainsaw, easily controlling and adapting its performance. In chainsaws for domestic use, the potentiometer function is integrated into the throttle lever

OIL/FUEL TANK CAP
Quick and easy to use. Thanks to the bayonet closure, the tank cap can be opened and closed in a few simple steps without the need for tools

TRANSPARENT OIL TANK
Makes it easy to check the fill level. Thanks to the transparent oil tank, it is possible to quickly and easily monitor the chain oil level. This way, you will always know when it is necessary to refill the chain oil to continue working efficiently

IPX4 CERTIFICATION
Protection against splashes. IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in several stages. IPX4 tests protection against water splashes from all sides. Battery-powered devices with this certification are designed for everyday use, even in the rain

TWO-HAND OPERATION
The STIHL chainsaw is equipped with an ergonomic tubular handle and a comfortable rear control grip made with soft components. Thanks to the two-hand control, it is possible to work comfortably, effortlessly, and safely in all positions.

CONTROL PANEL AND NOTIFICATIONS
The MSA 300 features an electronic command and notification cockpit with an LED display. It offers the user three selectable operating modes and ensures easy and safe machine operation. Furthermore, thanks to the large LED display, the user always has all important information about the chainsaw’s status at a glance, such as the chainsaw or chain brake condition.
