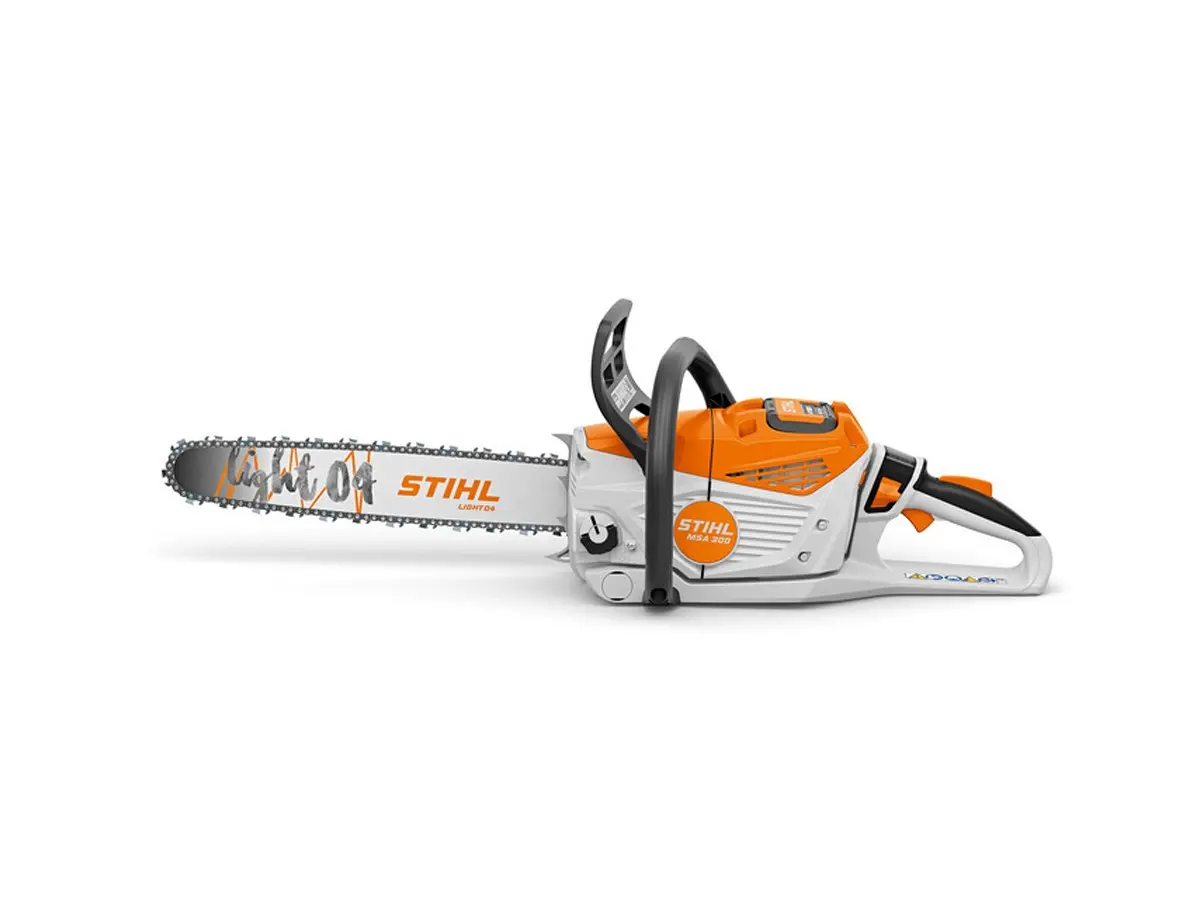

Stihl Battery-powered chainsaw MSA 300

Compatible with AP series batteries

• The most powerful STIHL battery chainsaw for professional use
• High performance and three selectable operating modes to enable optimal operations across a wide range of applications such as felling, branch thinning, or custom cuts
• High ergonomics even during extended use thanks to the compact and manageable design, excellent balance, and STIHL anti-vibration system
• Intuitive control and indicator panel with LED display, integrated cooling air filter, captive nut on the sprocket cover, adjustable oil pump, .325" RS PRO chain for high cutting performance
• Standard with oil sensor and LED display for active notifications in case of low oil level
• Enabled for STIHL Smart Connector 2 A within the device body
• Recommended battery for optimal performance:  AP 500 S
• Number of cuts (wood 10x10 cm) with battery  AP 500 S: up to 320 cuts
• Operating time with battery  AP 500 S: up to 44 minutes

Sold without battery and charger

40 cm bar and .325" P chain included
LIGHT 04 40 cm .325 P 1.3 mm 67-link chainsaw bar
RM Pro 40 cm . 325 P 1.3 mm 67 links

45 cm bar and chain. 325″ P included
LIGHT 04 45 cm chainsaw bar. 325 P 1.3 mm 74 links
RS Pro 45 cm chainsaw chain. 325 P 1.3 mm 74 links

TECHNICAL DATA

CHAINSAW
Nominal voltage: 36 V
Max voltage: 40 V
Power consumption: 3 kW
Power output: 2.50 kW
Battery system: AP
Device weight without battery: 4.5 kg
Bar length: 40 / 45 cm
Groove width: 1.30 mm
Chain pitch: .325"
Protection rating: IPX4
Sound pressure level: 93 dB(A)
Sound power level: 104 dB(A)
Vibration value left: 2.6 m/s²
Vibration value right: 2.8 m/s²

BATTERY
Recommended battery for optimal performance:  AP 500 S
For cutting squared wood (10x10 cm) with AP 500 S battery: up to 44 minutes
For cutting squared wood (10x10 cm) with AP 500 S battery: up to 320 cuts

EQUIPMENT

Control panel and notifications
The MSA 300 features an electronic cockpit for control and notification with an LED display. Offers the user three selectable operating modes and allows easy and safe operation of the machine. Additionally, thanks to the large LED display, the user always has all the important information about the chainsaw’s status at a glance, such as the chainsaw or chain brake status

Control Handle
FOR COMFORTABLE HANDLING. Thanks to the soft component on the control handle, your work tool fits comfortably in your hand and can be guided safely. Furthermore, the grip is enhanced by the soft grip, especially when wet

Velcro Filter
The velcro air filter of the new MSA 300 ensures consistent performance, even under the highest loads. Its extremely fine-pored filtering material keeps even very fine dust and dirt away from the power electronics and electric motor. To clean, spray the removed air filter with STIHL Varioclean, after a short soaking time wash it with lukewarm water and let it dry. It is then ready for use again
