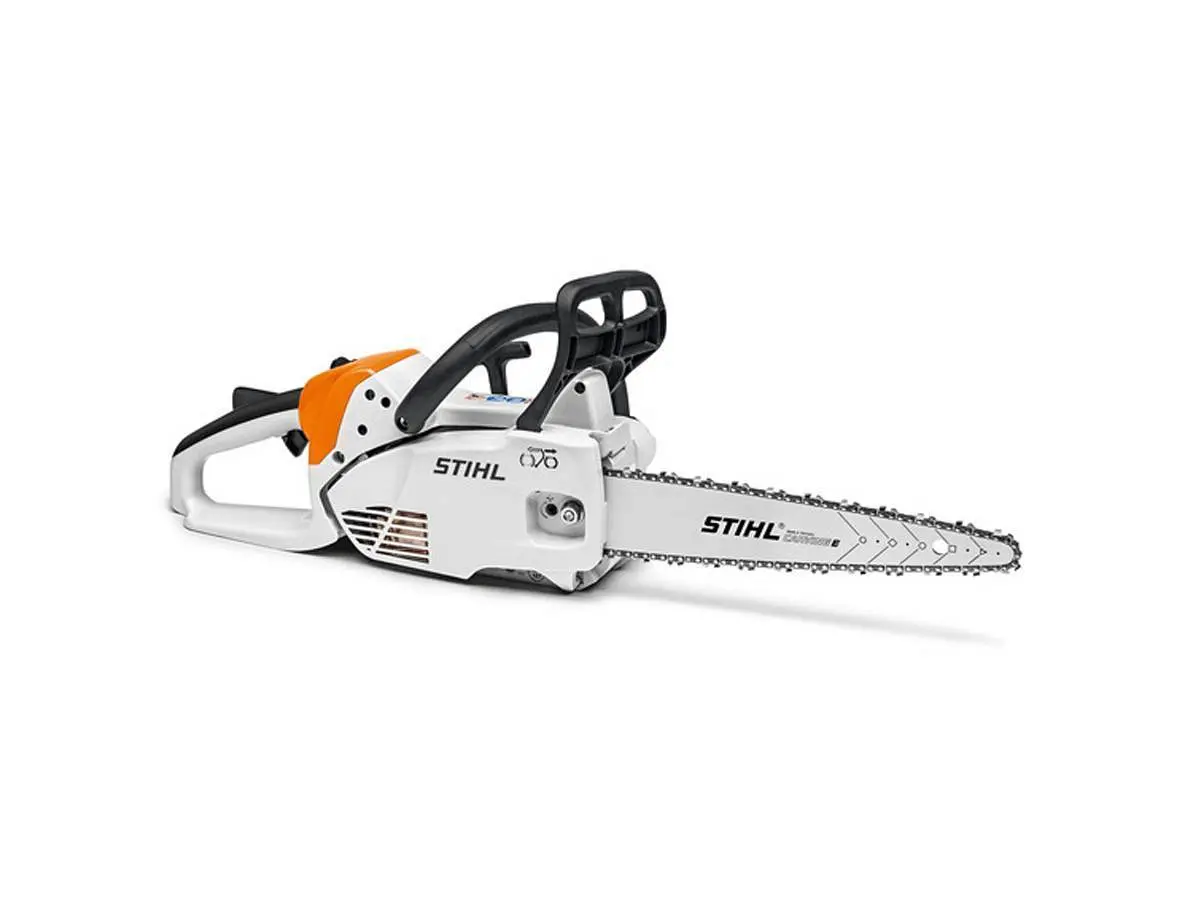

Stihl MS 151 C-E CARVING Chainsaw

• The lightest STIHL Carving chainsaw
• The manual fuel pump and the STIHL ErgoStart (E) system ensure easy starting
• New 2-MIX engine for high cutting performance
• Bar length: 30 cm
• Weight: 2.8 kg
• Displacement: 23.6 cm³
• Power: 1.5 HP

30 cm bar and 1/4″ P chain included
CARVING 30 cm 1/4 1.1 mm 64-link chainsaw bar
PM3 30 cm 1/4"P 1.1 mm 64-link chainsaw chain

TECHNICAL DATA

Displacement: 23.6 cm³
Power: 1.5 HP
Pitch: 1/4" P
Fuel tank volume: 270 cm³
Weight: 2.8 kg (without fuel, bar and chain)
Sound pressure level: 96 dB(A)
Sound power level: 110 dB(A)
Vibration value left: 4.9 m/s²
Vibration value right: 4.9 m/s²
Chain pitch: 1/4" P
Tank capacity: 0.20 l
Max rpm: 10,000
Chain oil tank capacity: 150 cm³

EQUIPMENT

Long-life air filter with pre-filtration
This innovative system significantly extends filter life. Thanks to the pre-filtration, it removes coarser dirt particles, reducing the workload on the actual filter. The chainsaw can operate longer without the need to clean the filter compared to a chainsaw without this type of filter

Single-lever control
All functions such as starting, running, and stopping can be controlled with one hand

STIHL 2-MIX engine
The STIHL 2-MIX engine is powerful and economical at the same time. The separation of exhaust gases from inert gas minimizes unburned particle emissions, increasing performance and saving fuel

Compensator
Ensures a constant fuel-air mixture even when the air filter becomes dirtier

QuickStop chain brake (Q)
Specially positioned damping zones reduce the transmission of vibrations from the engine and chain to the handle and grip

Ematic chain lubrication system
Depending on the type of guide bar and wood, the STIHL Ematic system reduces chain oil consumption by up to 50%. It consists of an Ematic guide bar, Oilomatic chain, and an oil pump with adjustable and reduced flow. The lubricant is thus delivered precisely and with minimal loss exactly where it is needed.

Anti-vibration system
Special cushioning zones precisely positioned reduce the transmission of vibrations from the engine and chain to the handle and grip

Tool-free fuel cap
Special caps for the fuel tank and oil tank allow easy opening and closing without difficulty

Side chain tensioner
The chain is tensioned laterally through the sprocket. This prevents any contact between the operator’s hand and the sharp chain

HD2 filter
Keeps even the finest dust away from the engine, ensuring particularly long durability. It can be easily cleaned with water

STIHL ErgoStart (E)
Easy starting. STIHL ErgoStart halves the force needed to start the machine and reduces the starting speed by two thirds. A spiral spring, located between the starter rope reel and the crankshaft, compensates force peaks to prevent them from being transmitted to the rope

Manual fuel pump (Purger)
Thanks to the manual pump, fuel is directed to the carburetor, facilitating re-ignition after a long work break.
