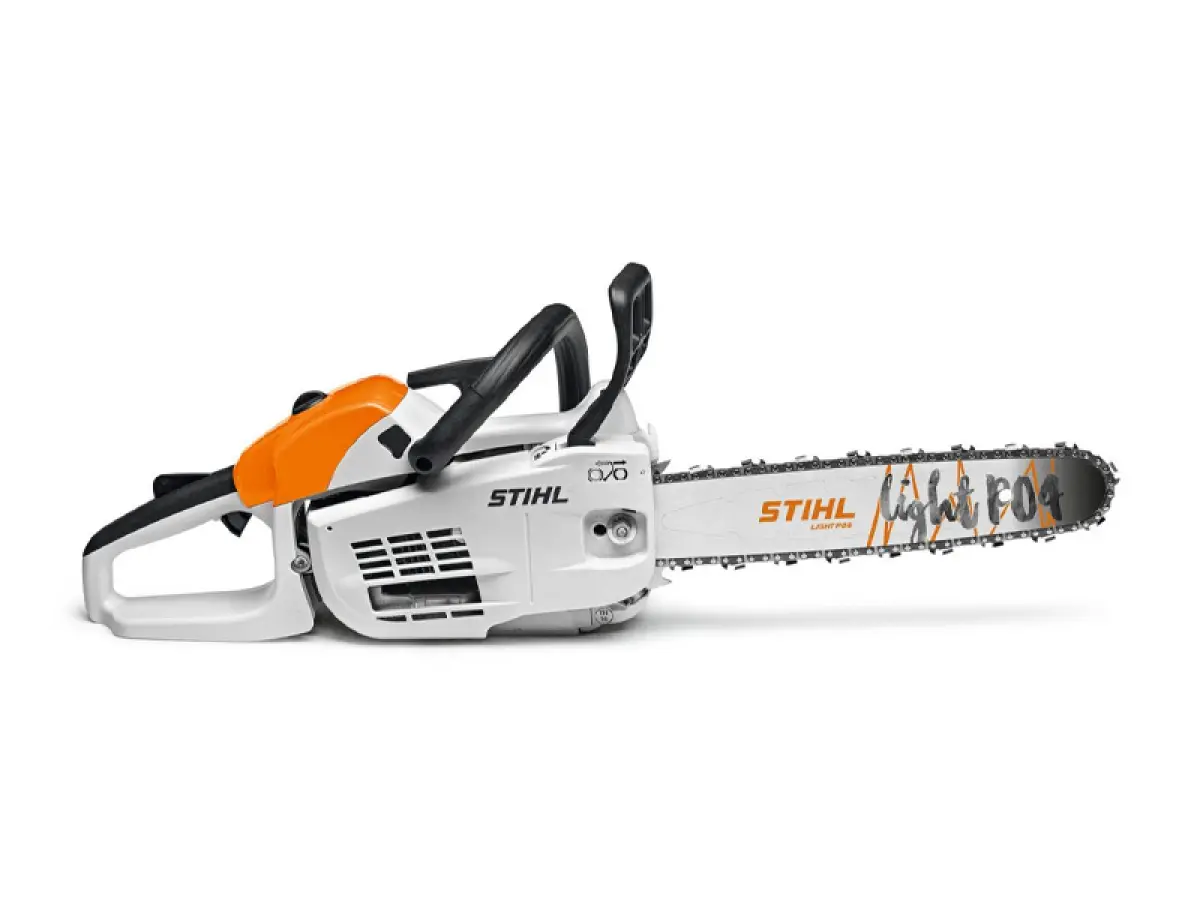

Stihl Chainsaw MS 201 C-M

• STIHL MS 201 C-M makes daily work in forestry operations easier
• Weighing only 4.0 kg, the MS 201 C-M is a very lightweight professional chainsaw from STIHL for forestry work. It is therefore ideal for pruning tasks where a highly maneuverable saw is required
• This chainsaw is also suitable for caring for young plantations. The STIHL MS 201 C-M is equipped with a powerful STIHL 2-MIX engine delivering 1.8 kW (2.4 hp)
• Thanks to STIHL M-Tronic, you always have optimal engine power
• M-Tronic electronically and precisely adjusts the ignition timing and fuel delivery under all operating conditions
• When starting the MS 201 C-M, STIHL ElastoStart supports you by absorbing force peaks, allowing you to start the chainsaw smoothly
• The STIHL 3/8''-PS chain offers high cutting performance. The loss-proof nuts on the sprocket cover facilitate quick and easy chain changes

35 cm bar and chain included
LIGHT 04 35 cm 3/8 P 1.3 mm 50-link chainsaw bar
PS3 35 cm 3/8 P 1.3 mm 50-link chainsaw chain

40 cm bar and chain included
LIGHT 04 40 cm 3/8 P 1.3 mm 55-link chainsaw bar
Chainsaw Chain PS3 40 cm 3/8 P 1.3 mm 55 Links

TECHNICAL DATA

Displacement: 35.2 cm³
Pitch: 3/8" P
Tank capacity: 390 cm³
Weight: 4.9 kg (without fuel, bar and chain)
Power-to-weight ratio: 2.2 kg/kW
Sound pressure level: 99 dB(A)
Sound power level: 110 dB(A)
Vibration value left: 3.3 m/s²
Vibration value right: 3.3 m/s²

EQUIPMENT

STIHL 2-MIX engine
The STIHL 2-MIX engine is both powerful and economical. The separation of exhaust gases from inert gas minimizes unburned particle emissions, increasing performance and saving fuel.

Compensator
Ensures a constant fuel-air mixture even when the air filter becomes clogged.

QuickStop chain brake (Q)
Precisely positioned damping zones reduce the transmission of vibrations from the engine and chain to the handle and grip.


ElastoStart
Thanks to the exclusive STIHL ElastoStart starter handle, combined with the manual fuel pump and decompression valve, kickback during starting is significantly reduced.

Ematic chain lubrication system
Depending on the type of bar and wood, the STIHL Ematic system reduces chain oil consumption by up to 50%. It consists of an Ematic bar, Oilomatic chain, and an adjustable low-flow oil pump. The lubricant is delivered precisely and with minimal loss exactly where it is needed.

Anti-vibration system
Special damping zones placed with precision reduce the transmission of vibrations from the engine and chain to the handle and grip.

Tool-free tank cap
Special caps for the fuel tank and oil tank allow for easy opening and closing without difficulty.

Side chain tensioner
The chain is tensioned laterally through the sprocket. This prevents any contact between the operator’s hand and the sharp chain.

Single-lever control
All functions such as starting, running, and stopping can be controlled with one hand.

STIHL M-Tronic (M)
Fully electronic fuel metering and ignition timing adjustment. The STIHL M-Tronic (M) system ensures optimal engine performance, constant speed, and excellent acceleration behavior in every operating condition. Manual carburetor adjustment is no longer necessary.
