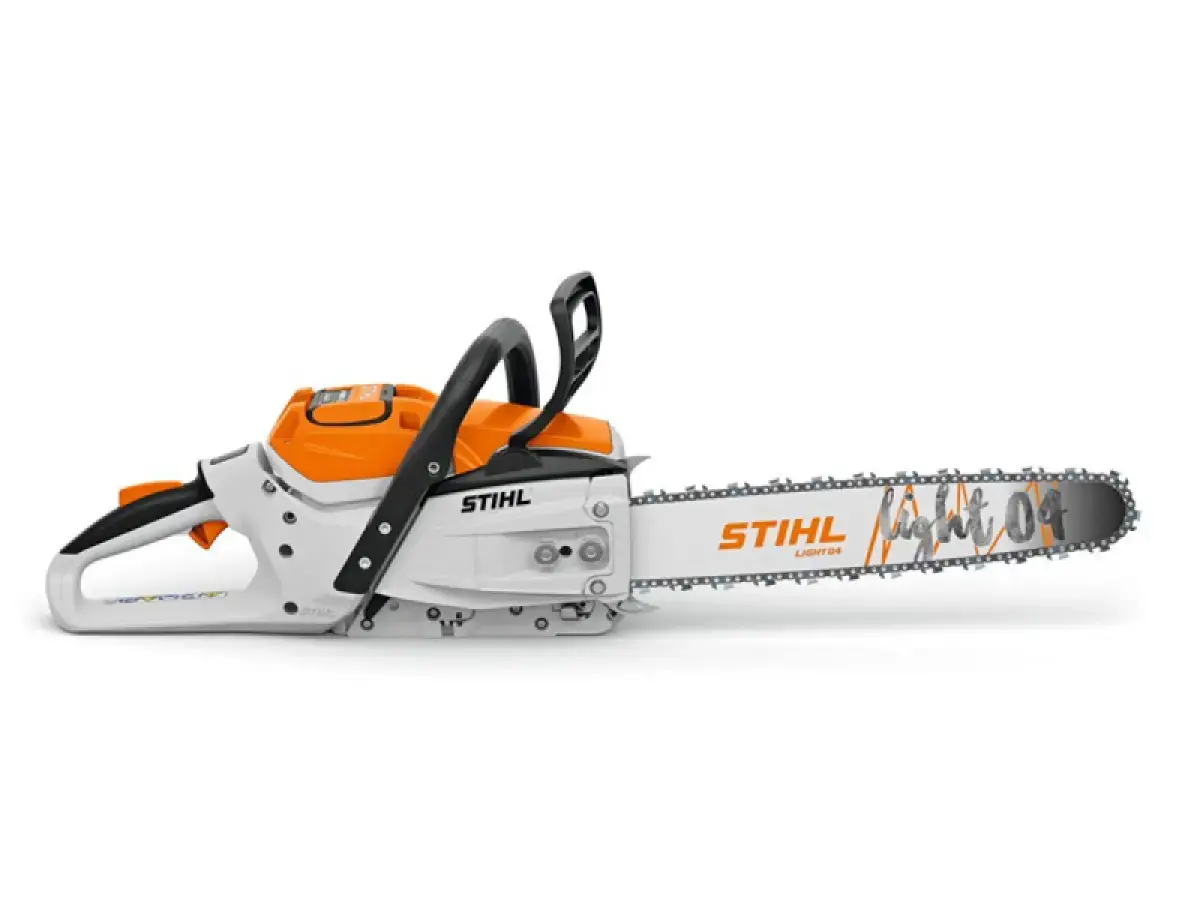

Stihl MSA 300 C-O Cordless Chainsaw

Compatible with AP series batteries

• With the STIHL MSA 300 C-O battery chainsaw, professionals in landscaping, forestry, and municipalities perform these tasks particularly efficiently
• Felling, limbing, and cutting small to medium trees: 3 operating modes (Eco, Felling, and Limbing) configure the chainsaw for various uses
• The full electric power of 3.0 kW is converted into a chain speed of up to 30 m/s thanks to the powerful STIHL AP 500 S battery, specially developed for this chainsaw
• Equipped with the STIHL .325" RM Pro chain and Light 04 guide bar, it achieves high cutting capacity with reduced weight.
• Vibrations are reduced by the STIHL anti-vibration system, thus relieving muscles and joints. The oil sensor continuously measures the amount of chain oil present, helping you work without interruptions
• For the simplest possible maintenance and cleaning of the STIHL MSA 300 C-O battery chainsaw, the filter is easily accessible thanks to the service cover
• The MSA 300 C-O is the first STIHL chainsaw to feature an operational and notification cockpit, through which you can receive all essential data and information about your chainsaw
• Additionally, it is already ready for connected work thanks to the STIHL Smart Connector 2 A
• This battery chainsaw can only be used with all its functions with a STIHL AP 500 S battery. Using other STIHL batteries does not guarantee either the use of all functions or the maximum possible cutting capacity
• Recommended battery for optimal performance:  AP 500 S
• Number of cuts (wood 10x10 cm) with battery  AP 500 S: up to 320 cuts
• Battery runtime  AP 500 S: up to 44 minutes

40 cm bar and .325" P chain included
LIGHT 04 chainsaw bar 40 cm .325 P 1.3 mm 67 links
RM Pro chainsaw chain 40 cm .325 P 1.3 mm 67 links

45 cm bar and .325" P chain included
LIGHT 04 chainsaw bar 45 cm .325 P 1.3 mm 74 links
RS Pro chainsaw chain 45 cm .325 P 1.3 mm 74 links

TECHNICAL DATA

CHAINSAW
Nominal voltage: 36 V
Max voltage: 40 V
Power consumption: 3 kW
Power: 2.50 kW
Battery system: AP
Device weight without battery: 4.5 kg
Bar length: 40 / 45 cm
Groove width: 1.30 mm
Chain pitch: .325"
Protection rating: IP IPX4
Sound pressure level: 93 dB(A)
Sound power level: 104 dB(A)
Vibration value left: 2.6 m/s²
Vibration value right: 2. 8 m/s²

BATTERY
Recommended battery for optimal performance:  AP 500 S
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 44 minutes
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 320 cuts

EQUIPMENT

Oil sensor
The LED display of the oil sensor provides reliable information about the chain oil fill level. If the LED is off, there is oil in the system. Red indicates a lack of chain oil.

Control panel and notifications
The MSA 300 features an electronic control and notification cockpit with an LED display. It offers the user three selectable operating modes and allows easy and safe operation of the machine. Additionally, thanks to the large LED display, the user always has all important information about the chainsaw’s status at a glance, such as the chainsaw or chain brake status

Control handle
Thanks to the soft component on the control handle, your work tool fits comfortably in your hand and can be guided safely. Furthermore, the grip is improved by the soft grip, especially when wet.

Velcro filter
The velcro air filter of the new MSA 300 ensures consistent performance, even under the highest loads. His extremely fine-pored filtering material keeps even very fine dust and dirt away from the power electronics and the electric motor. To clean, spray the disassembled air filter with STIHL Varioclean, after a short soaking time wash it with lukewarm water and let it dry. It is ready for use again

EC Motor
Thanks to its compact design, low weight, and high functionality, the EC motor enables energy-efficient operation. In addition, this motor is distinguished by its long service life

Transparent oil tank
Being transparent, the oil tank allows you to easily and quickly check the chain oil level. This ensures you always know when to refill the chain oil to work efficiently and durably

DE-RATING function
The de-rating function offers you 2 advantages for your work: on one hand, it protects your chainsaw from possible overheating by reducing the amperage. On the other hand, it informs you by reducing power if you only have a very low remaining battery charge. In both cases, this allows you to finish cuts already started without the motor shutting down

Connectivity
It is possible to install a Smart Connector 2 A in the designated position on the device housing. This is connected to the control unit and valuable machine data is transmitted to your smartphone, tablet, or the STIHL Connected Box at hand. You can view the recorded data within STIHLconnected via the STIHLconnected app and benefit from additional functions

Two-handed control
The STIHL chainsaw is equipped with an ergonomic tubular handle and a comfortable rear control grip made with soft components. Thanks to the two-handed control, it is possible to work comfortably, effortlessly, and safely in all positions.
