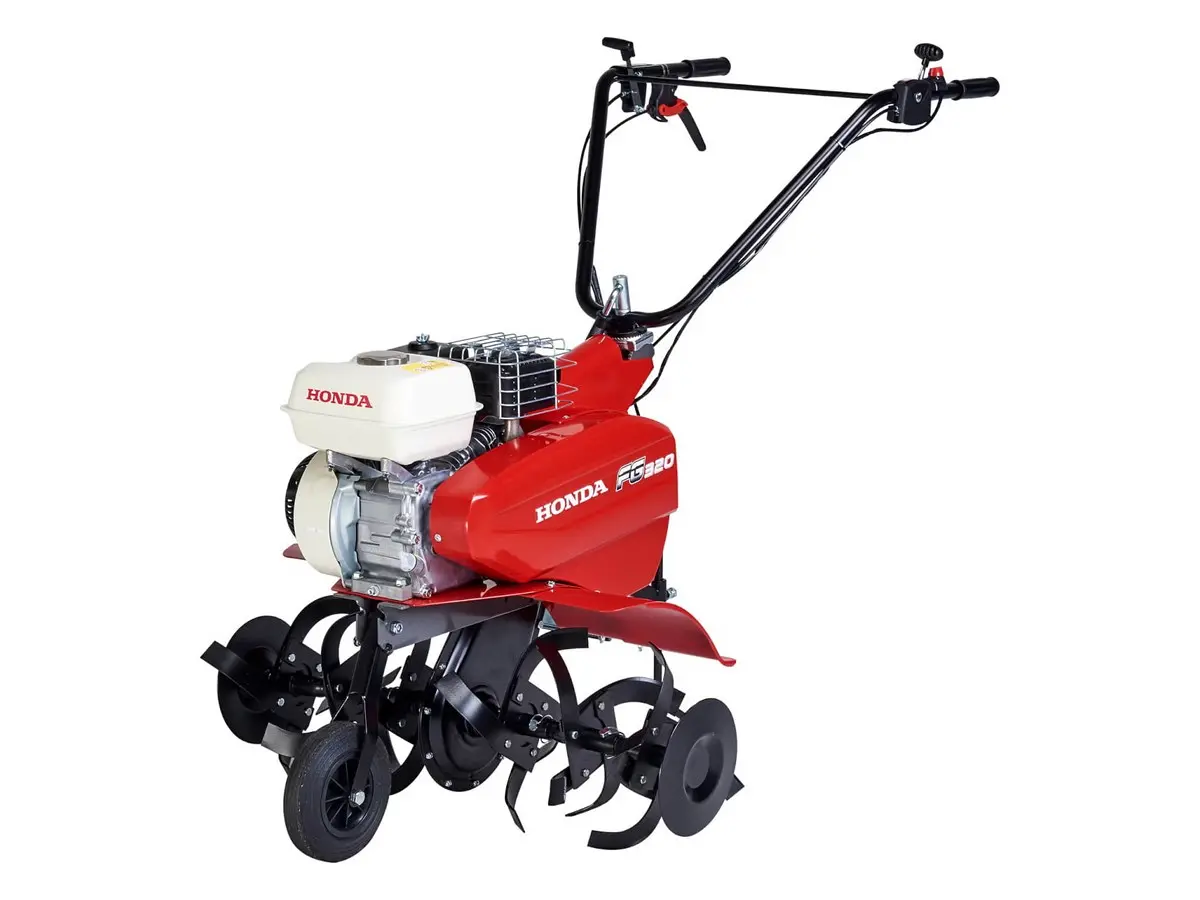

- The FG 320 rotary tiller is compact and lightweight, extremely easy to maneuver and move, thanks to the front wheel
- It can dig and turn over any type of soil, offering optimal performance for flowerbeds and vegetable gardens, thanks to the powerful 163 cc 4-stroke engine, the transmission unit, and the robust clutch, which direct power deep into the ground
- The transmission unit ensures strong traction, independent of the tiller speed
- The engine delivers a high torque of 10.3 Nm (at 2500 rpm), allowing you to effortlessly lift even compacted soil effectively
- The tiller blades are interchangeable depending on needs: standard blades are available for digging, lifting, and breaking up large amounts of soil, and special blades for preparing and softening the soil for sowing
- The side discs protect plants from plowing debris or the tiller itself, and provide stability to the machine, keeping it well aligned when tracing furrows
- With handlebars adjustable to the right or left, to prevent the operator from stepping on already tilled soil during work
TECHNICAL DATA
Function
Maximum working width (mm): 800
Maximum working depth (mm): 325
Forward speed: 1
Reverse speed: 1
Forward rotation speed (rpm): 108 rpm
Reverse rotation speed (rpm): 53 rpm
Dimensions
Dimensions (L x W x H) (mm): 1,500 x 837 x 980
Dry weight (kg): 53
Engine
Engine: OHC 4-stroke
Engine model: GP160
Engine displacement (cc): 163
Net engine power (kW/ rpm): 3.4 / 3,600
Net engine torque (Nm/ rpm): 10.3 / 2,500
Fuel tank capacity (liters): 2.4
Engine oil capacity (liters): 0.58
Starting system: Pull start
Transmission clutch: Manual - Belt tension
Transmission: Constant gear
Final drive: Chain
Operator ear sound pressure (dB(A)+): 84
Vibrations (m/sec²): 7
