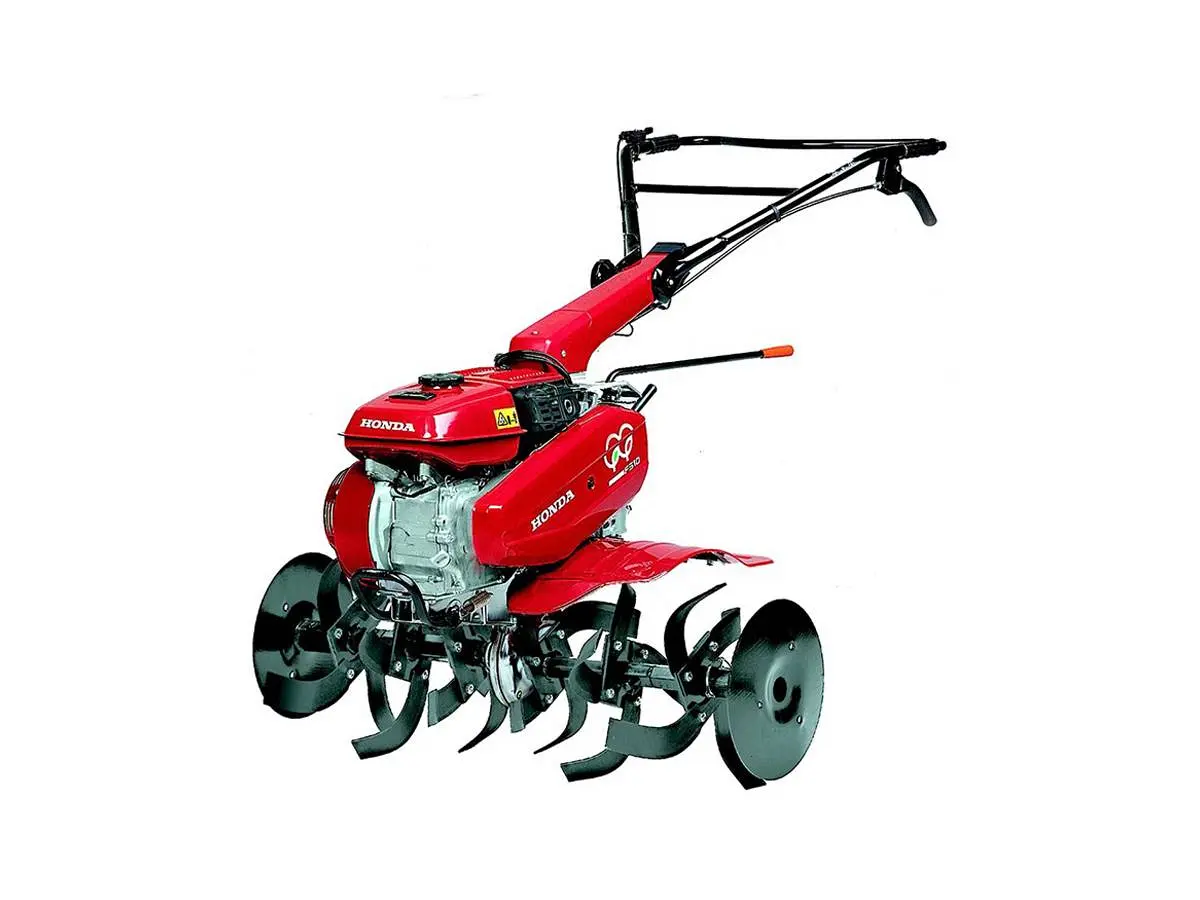

Honda Rototiller F 510 TE

• The Honda F 510 tiller is sturdy and reliable
• With a quiet 163 cm³ engine capable of developing 10.3 Nm of torque at 2500 rpm, it will be able to work even compacted soil, directing power exactly where it is needed, that is, deep down
• The transmission ensures optimal traction regardless of the tiller speed
• The handlebar is height adjustable to best fit your stature, and can be oriented to the right or left, allowing you to walk alongside the tilled soil.
• Equipped with an automatic stop grip for maximum safety: as soon as released, it stops the tiller without shutting off the engine
• Also available with miracle tiller blades

TECHNICAL DATA

Function
Maximum working width (mm): 900
Maximum working depth (mm): 330
Forward speed: 6
Reverse speed: 2
Forward rotation speed (rpm): 21 - 122 rpm
Reverse rotation speed (rpm): 16 - 32 rpm

Dimensions
Dimensions (L x W x H) (mm): 1,585 x 610 x 865
Dry weight (kg): 50

Engine
Engine: OHC 4-stroke
Engine model: GX160
Engine displacement (cc): 163
Net engine power (kW/ rpm): 3.6/3,600
Net engine torque (Nm/ rpm): 10.3/2,500
Fuel tank capacity (liters): 2.3
Engine oil capacity (liters): 0.6
Starting system: Recoil start
Transmission clutch: Manual - Belt tension
Transmission: Constant gear
Final drive: Chain
Operator ear sound pressure (dB(A)+): 83
Guaranteed sound power level (dB(A)++): 97
Vibrations (m/sec²): 6
