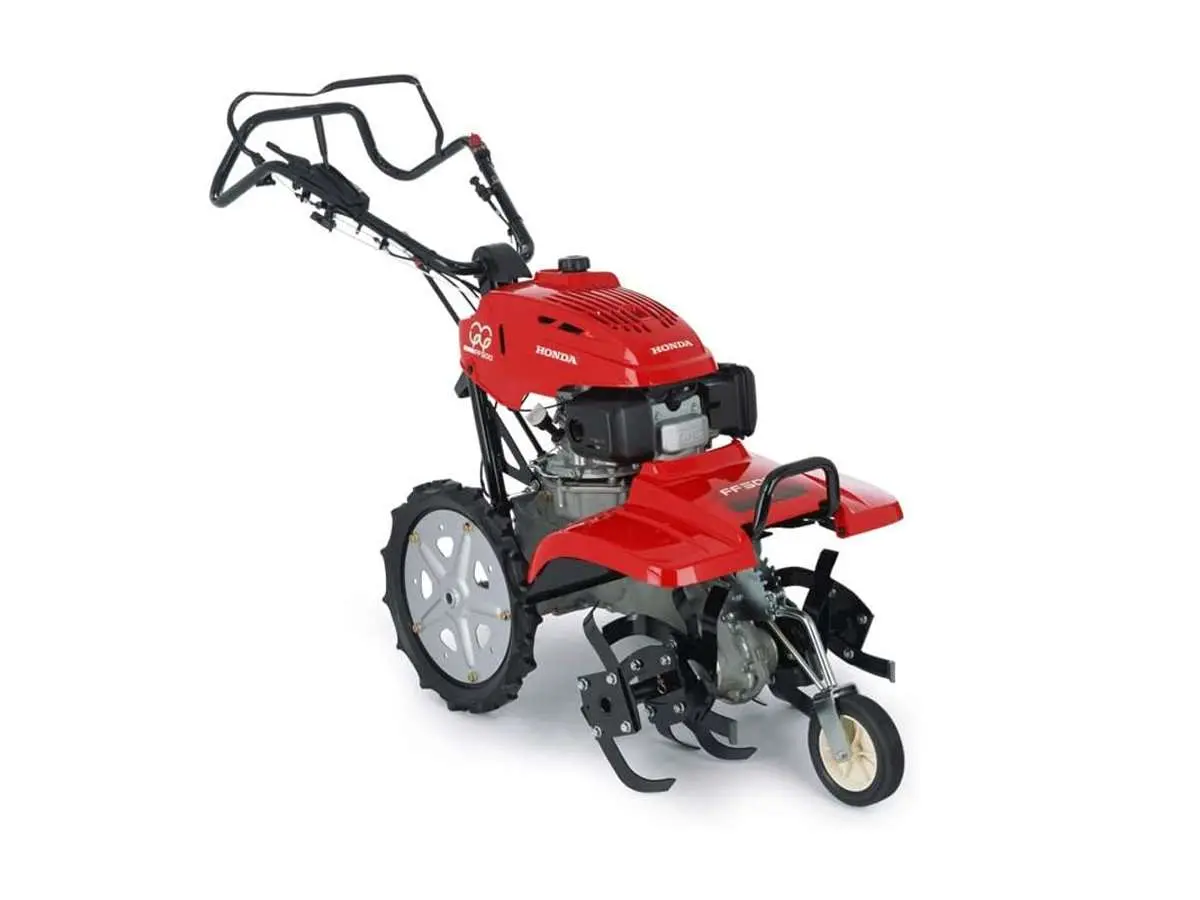

Honda Rototiller FF 500

• Very easy to use, even if you are inexperienced. It operates effortlessly: thanks to its exceptional stability, the FF 500 moves forward and works almost by itself! It only needs to be gently guided with its ergonomic handlebar. The two sets of tines rotate in opposite directions, finely breaking up the soil up to 20 cm deep; they are positioned at the front, keeping you away from the rotating tools as well as vibrations. The multifunction front knob allows you to adjust the working depth tool-free, with just one hand
• This tiller model is incredibly simple to use yet extremely effective and precise in its work. The vertical engine, large 2-wheel drive, and the positioning of the tines in front of the engine are advantages found in various types of tillers, all combined by Honda into a single machine. A powerful engine that allows you to handle large volumes of work in less time
• NO VIBRATIONS
  The counter-rotating stars reduce the impact of the blades against the ground and eliminate vibrations
• GREATER MANEUVERABILITY
  The vertical shaft engine placed at the center of the machine, between the front tines and the rear wheels, ensures a low center of gravity, enhancing maneuverability
• THE ARS "ANTI-HOPPING" SYSTEM
  The internal tine groups rotate opposite to the external tine groups for better penetration into the soil. This system cancels out the typical "hopping" of traditional tillers

TECHNICAL DATA:

Function
Maximum working width (mm): 550
Maximum working depth (mm): 200
Forward speed: 3
Reverse speed: 1
Forward rotation speed (rpm): 0.2 - 1 m/s
Reverse rotation speed (rpm): 0.3 m/s
PTO rotation speed (low/high) (rpm): 141

Dimensions
Dimensions (L x W x H) (mm): 1,730 x 585 x 1,045
Dry weight (kg): 77

Engine
Engine: OHC 4-Stroke
Engine model: GCV160
Engine displacement (cc): 160
Net engine power (kW/ rpm): 3.3/3,600
Fuel tank capacity (liters): 1.7
Engine oil capacity (liters): 0.55
Starting system: Recoil start
Transmission clutch: Manual - Expansion spindle
Drive transmission: Wheels - Epicyclic gear for bevel gear
Final drive wheels: Constant gear - Chain tines and gear
Differential / side clutch: Yes
Operator ear sound pressure (dB(A)+): 79
Guaranteed sound power level (dB(A)++): 93
Vibrations (m/sec²): 4.8
