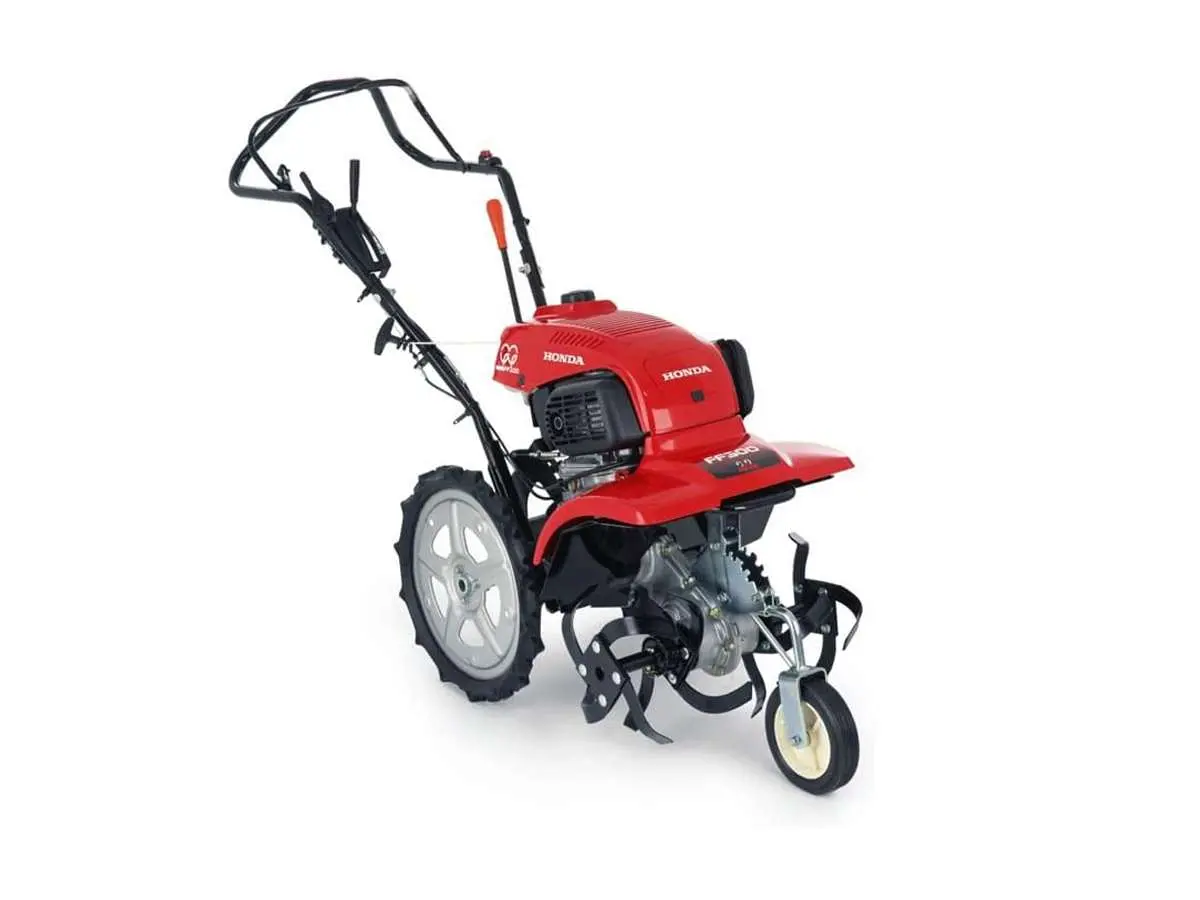

Honda Rototiller FF 300

• The FF300 tiller enters the market with the sole purpose of meeting the needs of all users who own medium-sized areas such as lawns and vegetable gardens and want to perform work by leveraging the maximum power and counter-rotating technology of its blades
• The Honda GXV57 57cc 4-stroke gasoline engine with OHV valve distribution system and recoil start is extremely eco-friendly, quiet, durable over time, and reliable: you can work with complete peace of mind
• The tiller blade assembly, made of durable steel, features the innovative system called ARS: Active Rotary System. It is the counter-rotating tilling system that allows the blades to operate simultaneously on both sides: 2 forward and 2 backward, eliminating vibrations and the instability typical of tillers during work sessions for optimal results already from the first pass
• Furthermore, the blade assembly, positioned at the front compared to traditional tillers, provides extra safety for the operator’s legs, which will be protected from any mishaps
• The transmission of this tiller is designed to be the best in its category. The gears are divided into 1 neutral, 2 forward speeds with blades engaged for work, and 3 gears + 1 reverse for movement, respecting the operator’s pace. The gear selection lever is made of sturdy steel, and the clutch disengages simply by releasing the control lever on the dashboard.

TECHNICAL DATA

Function
Maximum working width (mm): 410
Maximum working depth (mm): 160
Forward speed: 3
Reverse speed: 1
Forward rotation speed (rpm): 0.15 - 1 m/s
Reverse rotation speed (rpm): 0.3 m/s
Power take-off rotation speed (low/high) (rpm): 131

Dimensions
Dimensions (L x W x H) (mm): 1,465 x 465 x 1,010
Dry weight (kg): 50.5

Engine
Engine: OHC 4-Stroke
Engine model: GXV57
Engine displacement (cc): 57
Net engine power (kW/rpm): 1.5/4,800
Fuel tank capacity (liters): 0.78
Engine oil capacity (liters): 0.3
Starting system: Recoil start
Transmission clutch: Manual - Expansion spindle
Wheel transmission - Epicyclic gear for bevel gear
Final wheel transmission - Constant gear - Chain tillers and gear
Differential / side clutch: Yes
Sound pressure at operator's ear (dB(A)+): 74
Guaranteed sound power level (dB(A)++): 92
Vibrations (m/sec²): 4.5
