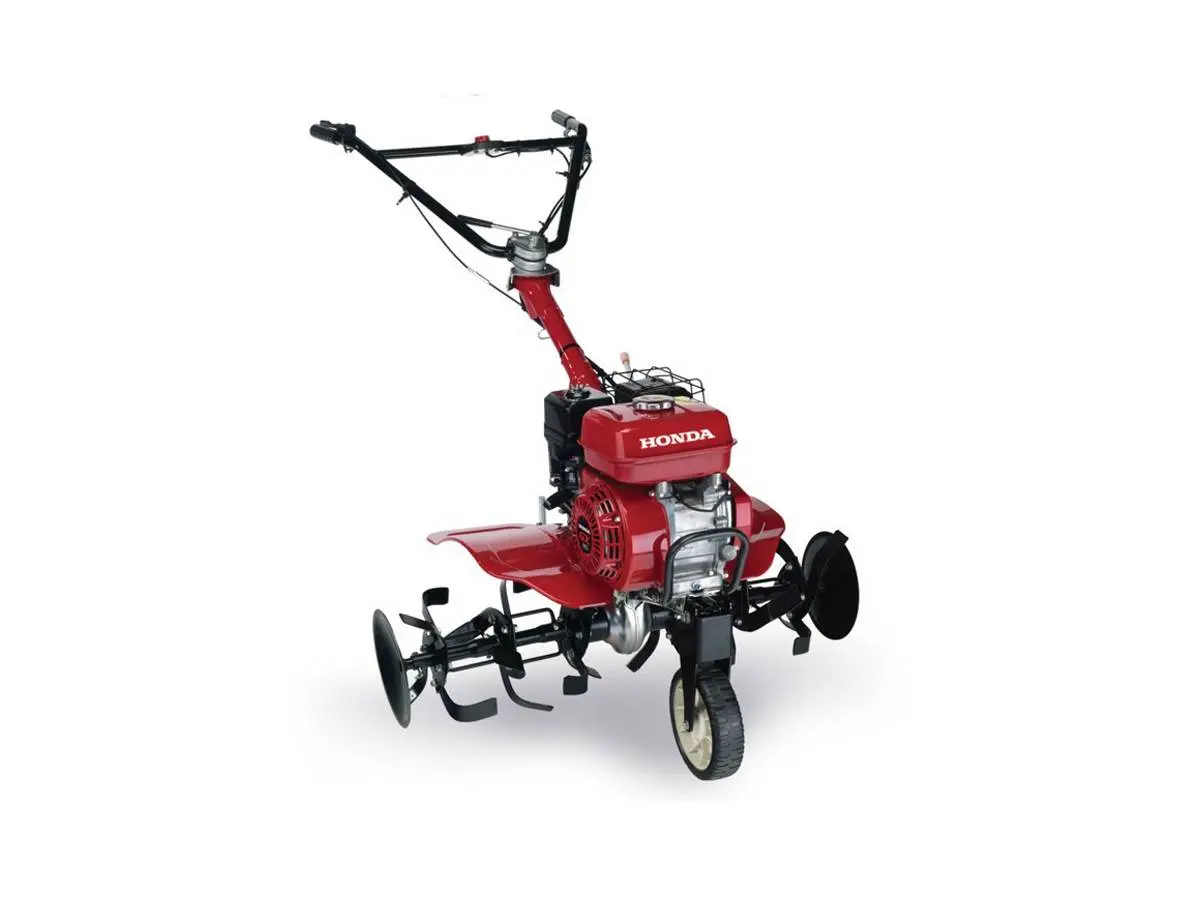

Honda FJ 500 DE Rototiller

• Compact and lightweight tiller yet robust and equipped with great power
• Perfect for large vegetable gardens, gardens, and complex terrains
• Quiet 163 cc overhead valve engine, capable of developing 10.3 Nm torque at 2500 rpm
• The transmission ensures optimal traction regardless of the tiller speed
• Its lightness makes it easy to handle without compromising durability, enabling it to perform heavy-duty tasks effortlessly
• The handlebar is height adjustable to best fit your stature and can be oriented to the right or left
• Available in 3 versions: with standard tiller / with star rotor / with miracle tiller
• Power: 3.6 kW
• Weight: 49/62 kg (depending on the chosen tiller)

TECHNICAL DATA

Function
Maximum working width (mm): 800
Maximum working depth (mm): 325
Forward speed: 2
Reverse speed: 1
Forward rotation speed (rpm): 80 - 113 rpm
Reverse rotation speed (rpm): 28 rpm

Dimensions
Dimensions (L x W x H) (mm): 1,395 x 610 x 980
Dry weight (kg): 49/62

Engine
Engine: OHC 4-stroke
Engine model: GX160
Engine displacement (cc): 163
Net engine power (kW/ rpm): 3.6/3,600
Net engine torque (Nm/ rpm): 10.3/2,500
Fuel tank capacity (liters): 2.4
Engine oil capacity (liters): 0.58
Starting system: Recoil start
Transmission clutch: Manual - Belt tension
Transmission: Constant gear
Final drive: Chain
Operator ear sound pressure (dB(A)+): 81
Guaranteed sound power level (dB(A)++): 96
Vibrations (m/sec²): 5.6
