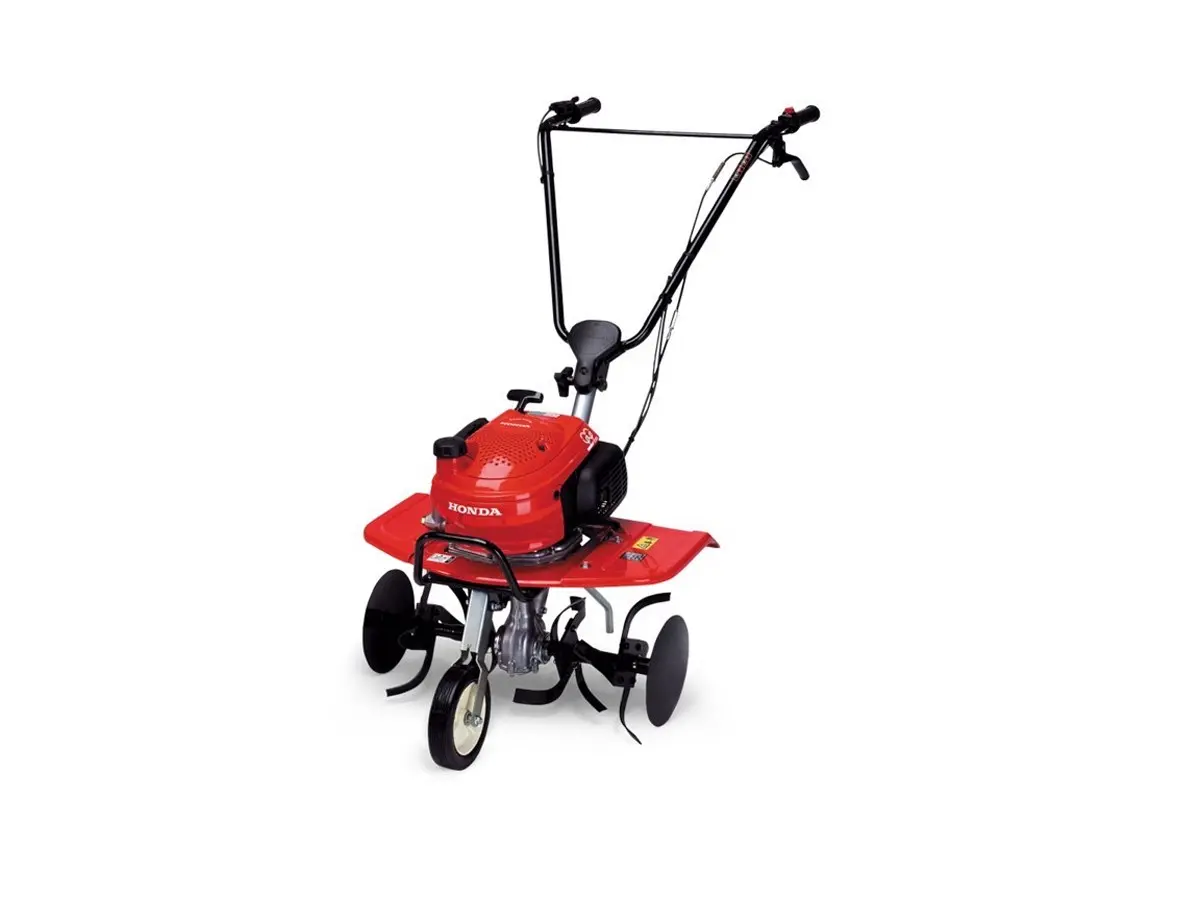

Honda Rototiller F 220

• The Honda F 220 tiller is small and compact, yet excellently designed to deliver extreme power and efficiency
• It can break hard, compact soil, especially in tight and difficult spaces: in any working condition, it will effortlessly prepare your surfaces
• The handlebar is height adjustable to fit any stature, and can be oriented to the right or left to prevent stepping on freshly tilled soil
• Additionally, it folds for transport and storage

TECHNICAL DATA

Function
Maximum working width (mm): 545
Maximum working depth (mm): 280
Forward speed: 1
Forward rotation speed (rpm): 130 rpm

Dimensions
Dimensions (L x W x H) (mm): 1,280 x 615 x 1,035
Dry weight (kg): 30

Engine
Engine: OHC 4-stroke
Engine model: GXV57
Engine displacement (cc): 57.3
Net engine power (kW/ rpm): 1.5/4,800
Fuel tank capacity (liters): 0.67
Engine oil capacity (liters): 0.3
Starting system: Recoil start
Transmission clutch: Automatic - Centrifugal
Transmission: Epicyclic gear
Final drive: Pinion and bevel gear
Sound pressure at operator's ear (dB(A)+): 75
Guaranteed sound power level (dB(A)++): 92
Vibrations (m/sec²): 6.4
