Pramac PX 8000 Three-Phase Generator

• The PRAMAC PX8000 gasoline Three-Phase electric generator is an ideal product to provide electrical power wherever it is needed
• Thanks to the foldable handle and large diameter wheels, it can be easily transported even over slightly uneven terrain. The generator has a 25.5 L fuel tank
• This model is very easy and convenient to start thanks to the battery supplied for electric engine start-up
• With copper alternator winding and a 14 hp engine
• Equipped with an AVR board: it provides automatic regulation of the output voltage, keeping it perfectly stable regardless of load variations
• Powered by a Pramac SR190F 420 cc air-cooled engine with electric start, the PX 8000 three-phase generator runs at 3000 RPM
• The 27 L steel tank allows for over 13 hours of autonomy at 75% load, with a consumption of 2.06 L/h
• The power output is 4.0 kW (5.0 kVA) continuous service and up to 4.8 kW (6.0 kVA) emergency at 400V three-phase, with a power factor of 0.8
• The electrical panel includes Schuko and CEE IP44/IP54 sockets, and a BEIBEI class F alternator with IP23 protection
• The AVR system ensures stable voltage even with variable loads
• Maximum mobility and ease of use
• Robust frame with foldable handle and integrated wheels for quick tool-free movement

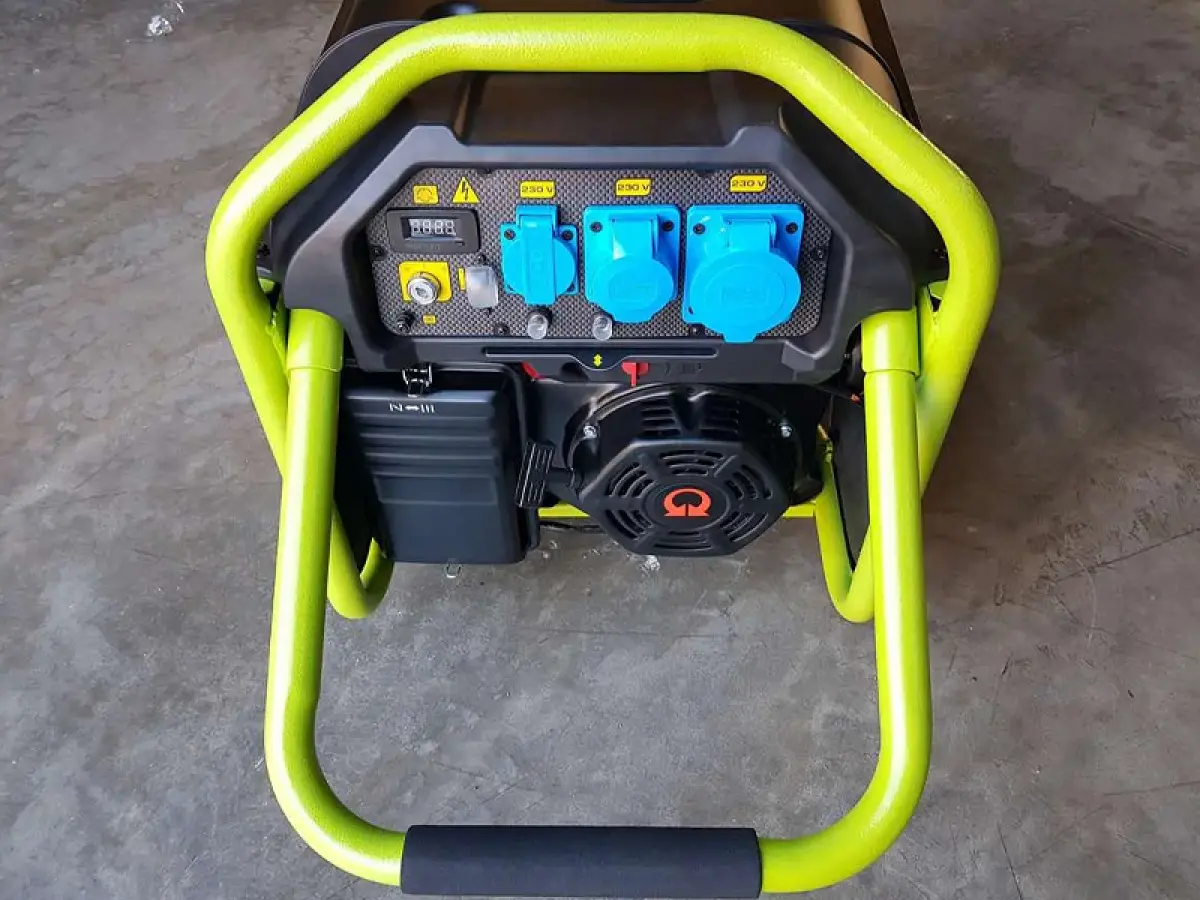

• Controls available on this gasoline generator include: Electric start; One 230V 16A IP54 Schuko socket; One 230V 16A IP44 CEE socket; One 400V 16A IP44 CEE socket; Engine ON/OFF switch, voltmeter, ammeter, frequency meter; Fuel level indicator light
• Protections included in this device are: Oil Guard system to protect the engine if oil falls below the safety level. The generator is also equipped with an air valve. Thermal engine protection

TECHNICAL DATA

Fuel: Gasoline
Start: Electric
Maximum Three-Phase Power: 6 kVA - 4.8 KW cos φ 0.8
Rated Three-Phase Power: 5 kVA - 4 KW cos φ 0.8
Maximum Single-Phase Power: 2 kVA - 1.6 KW cos φ 0.8
Rated Single-Phase Power: 1.5 kVA - 1.2 KW cos φ 0.8
Generator Type: Open
Output Voltage: 400V / 50 Hz
Engine: 4-Stroke OHV
Displacement: 420 cc
Phase: Three-Phase
Oil Capacity: 1.1 L
Fuel Tank Capacity: 27 L
Autonomy at 100% Load: 10 h
Noise Level: 69 dB
Dimensions: 72 x 51 x 67 cm
Weight: 94 kg
