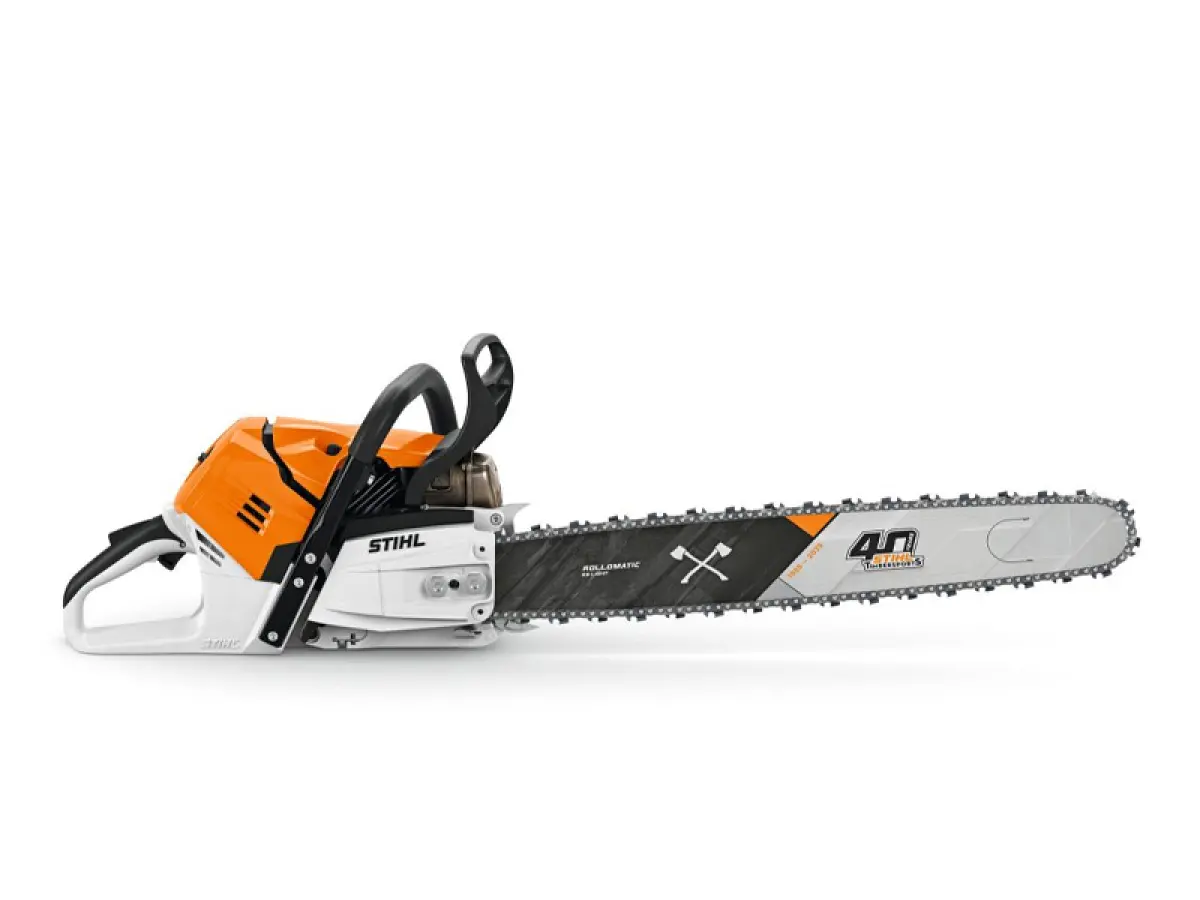

Stihl MS 500i Chainsaw 40 Years of STIHL TIMBERSPORTS Edition

• The STIHL MS 500i petrol chainsaw is ideal for forestry operations
• Thanks to its high power and ease of use, it is perfect for processing large timber. The lightweight design and dynamic cutting performance make this chainsaw extremely maneuverable, not only for felling and bucking but also for limbing
• In this version, the chainsaw features a bar with a commemorative design celebrating 40 years of STIHL TIMBERSPORTS
• The MS 500i is the world’s first chainsaw with electronically controlled fuel injection. The innovative STIHL Injection technology ensures optimal engine performance and excellent starting behavior, regardless of altitude and external temperature
• Sensors detect air pressure, internal and external temperature, and transmit data to the control unit, which precisely adjusts the fuel quantity and ignition timing
• Fuel dosing is controlled by the opening and closing of a valve
• STIHL Injection offers lightning-fast acceleration with high performance and low weight: the chain accelerates from 0 to 100 km/h in just 0.25 seconds, achieving the best power-to-weight ratio on the market: only 1.24 kg/kW
• The electronic injection is integrated into the proven STIHL 2-MIX engine, which delivers high performance with reduced fuel consumption.

TECHNICAL DATA

Displacement: 79.2 cm³
Power: 5 kW/6.8 HP
Pitch: 3/8" P
Bar length: 50 cm
Weight: 6.2 kg (without fuel, bar, and chain)
Sound pressure level: 106 dB(A)
Sound power level: 119 dB(A)
Vibration value left: 4.2 m/s²
Vibration value right: 4 m/s²
Chain pitch: 3/8" P
Tank capacity: 0.78 l
Engine speed at Pmax: 10,000
Chain oil tank capacity: 325 cm³

EQUIPMENT

Long-life air filter with pre-filtering
This innovative system allows for a significantly longer filter lifespan. In fact, thanks to the pre-filtering, it removes coarser dirt particles, easing the workload of the actual filter. The chainsaw can operate longer without needing the filter to be cleaned compared to a chainsaw without this type of filter

HD2 filter
The new HD2 filter with polyethylene filtering material has pores 70% finer than felt and polyamide filters, enabling it to filter even the finest dust particles. Additionally, it is oil-repellent, making it easy to clean. In an instant, the filter core coated in PET can be mounted and dismounted without the use of tools

Compensator
Allows a constant fuel-air mixture even when dirt builds up in the air filter

ElastoStart
Thanks to the exclusive STIHL ElastoStart starter handle, combined with the manual fuel pump and decompression valve, kickbacks during ignition are significantly reduced

Ematic system for chain lubrication
Depending on the type of guide bar and wood, the STIHL Ematic system reduces chain oil consumption by up to 50%. It consists of an Ematic guide bar, Oilomatic chain, and an adjustable low-flow oil pump. This ensures the lubricant is delivered precisely and with minimal loss exactly where it is needed

Anti-vibration system
Special damping zones placed with precision reduce the transmission of vibrations from the engine and chain to the handle and grip

Tool-free fuel cap
Special caps for the fuel tank and oil tank allow easy opening and closing without difficulty

Side chain tensioner
The chain is tensioned laterally via the sprocket. This avoids any contact between the operator’s hand and the sharp chain

Adjustable oil pump
Different cutting lengths, wood types, and working techniques require varying amounts of oil. The adjustable flow oil pump allows precise regulation of the oil flow rate according to needs. It is possible to reduce the amount of oil supplied by up to 50%

Kombi Lever with Stop Button
The lever automatically returns to the operating position (I) after stopping

Decompression Valve
The decompression system automatically opens the intake valve. This absorbs pressure peaks and reduces the force required on the starter rope

STIHL Injection (i)
The injection technology is characterized by extremely simple operation. Goodbye to the combined lever, only the stop button remains for shutting off. The fully electronic engine management and sensor-supported electronic control system ensure optimal engine power and consistent acceleration in every working condition. Real-time measurement allows the tool to calculate the exact amount of fuel and the optimal ignition timing. The injection valve injects fuel directly into the space beneath the piston. The unique combination of lightweight design and engine technology offers the best power-to-weight ratio on the market while maintaining a compact structure
