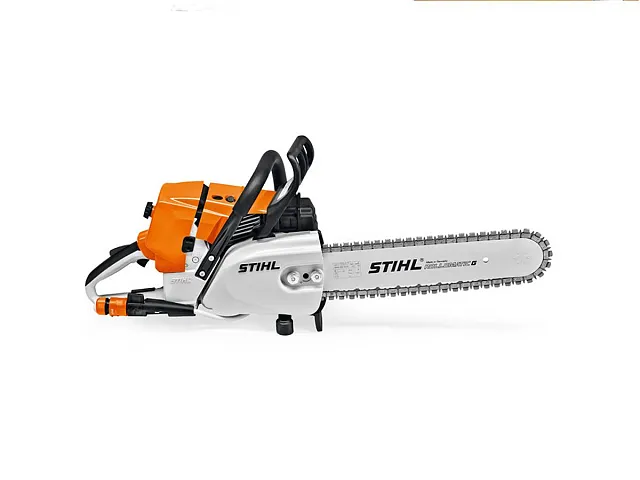

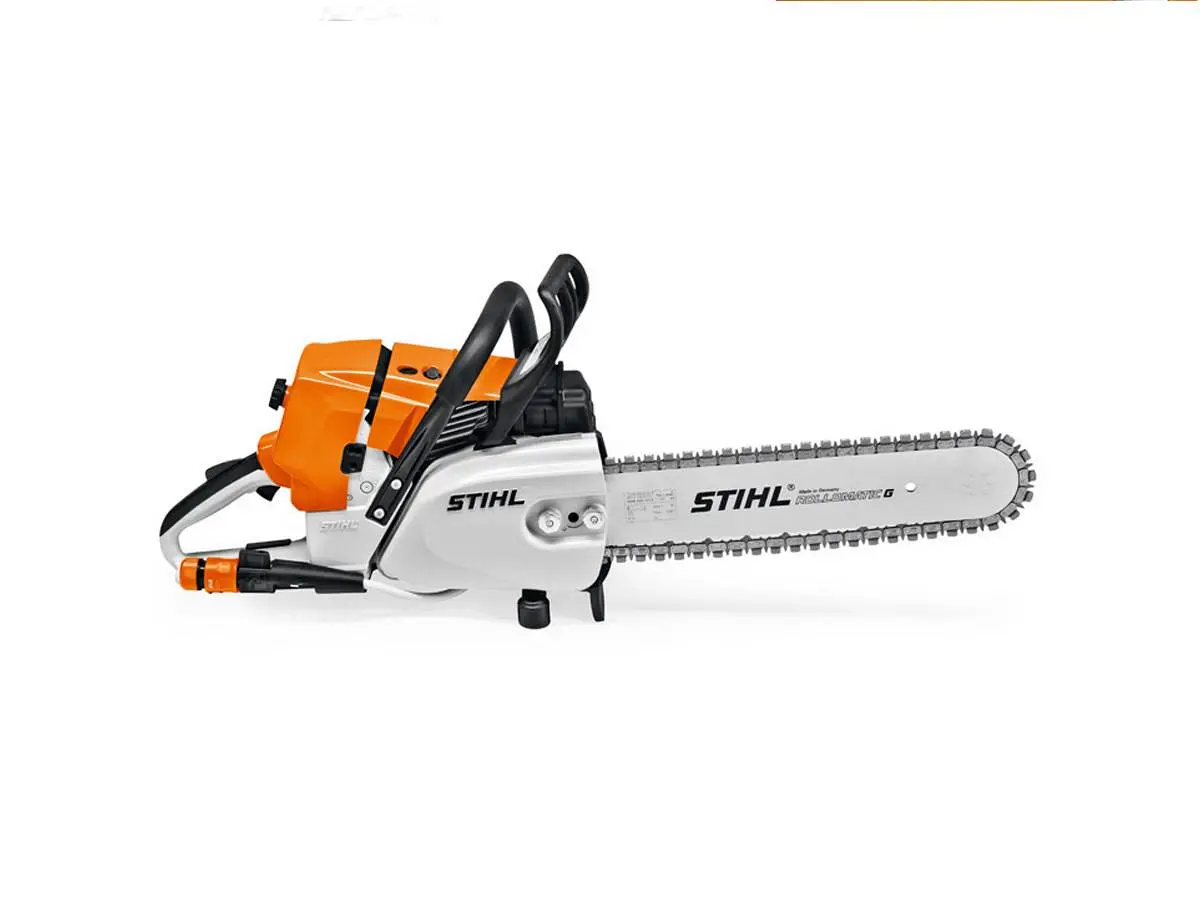

- Chainsaw for cutting building materials, with a robust diamond cutting chain
- Suitable for cutting reinforced concrete, natural stone, and masonry in general
- Equipped with 2-MIX engine
- HD2 long-life air filter system
- Water is required for cooling and cleaning the bar and chain
- Displacement: 76.5 cm³
- Power: 5.8 HP
- Weight: 7.6 kg
TECHNICAL DATA
Displacement: 76.5 cm³
Power: 4.3 kW/5.8 HP
Pitch: 3/8"
Weight: 7.6 kg (without fuel, bar, and chain)
Recommended cutting length: 40 cm
Sound pressure level: 105 dB(A)
Sound power level: 115 dB(A)
Vibration value left: 4.5 m/s²
Vibration value right: 4 m/s²
Chain pitch: 3/8" P
Tank capacity: 0.78 l
Max speed: 9800 rpm
Chain oil tank capacity: 260 cm³
EQUIPMENT
STIHL 2-MIX engine
The STIHL 2-MIX engine is both powerful and economical. The separation of exhaust gases from inert gas minimizes unburned particle emissions, increasing performance and saving fuel.
Anti-vibration system
Special precisely placed damping zones reduce the transmission of vibrations from the engine and chain to the handle and grip.
Long-lasting air filter system
Efficient HD2 long-lasting air filter system: reliable filtration even of fine dust. Equipped with an auxiliary filter that protects the clean chamber of the carburetor
Side chain tensioner
Thanks to the side chain tensioner and the loss-proof nuts, the chain can be easily tensioned and changed.
Water connection
The water connection is located directly on the equipment and is slightly raised to protect the connection itself from dust.
Tool-free tank closure
Makes opening and closing the tank possible and simple.
36 GB diamond cutting chain
Pre-sharpened diamond segments, high cutting performance with long service life. Excellent placement in engraving and precision cutting. Quiet running of the diamond chain during cutting. Mounting of the 36 GBM diamond chain is only possible on Rollomatic G guide bars.
Rollomatic G guide bar
Jets directed forward – water supply opposite to the user. Optimal washing of the guide bar and the sprocket nose. Adapted for diamond cutting chains and rock cutting.
