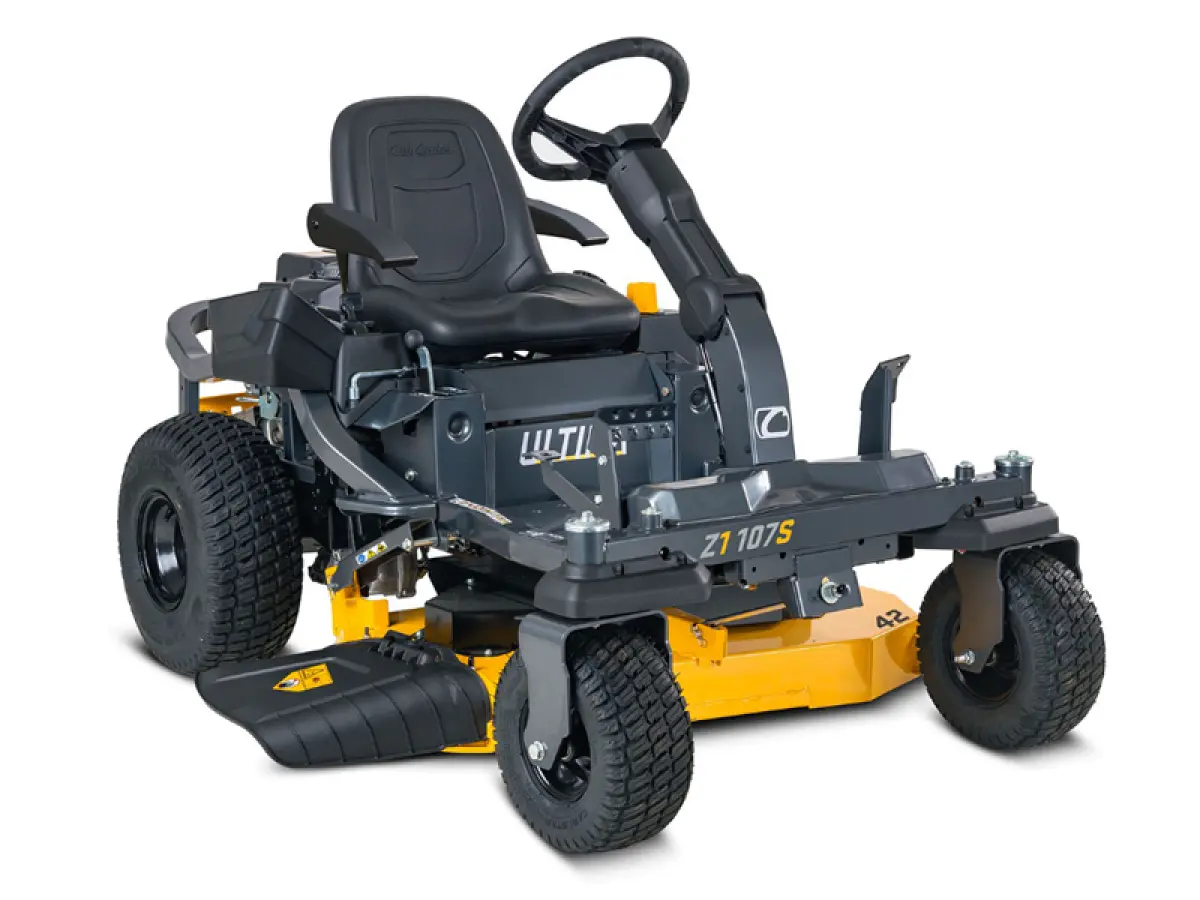

Cub cadet Z1 107S Lawn Tractor

• The Cub Cadet Z1 107S combines a new style with proven enduro substance: built on a sturdy tubular steel frame, the Z1 series offers durability, comfort, and control for demanding mowing tasks
• With a cutting width of 107 cm, the wide cutting deck covers a larger area and ensures an even and clean cut. The offset cutting deck allows mowing beyond the step, ideal when reach is crucial along edges and transitions
• The dual hydrostatic transmission guarantees superior driving dynamics: speed and direction can be adjusted effortlessly at any time
• The Cub Cadet V-Twin engine with a displacement of 679 cc delivers smooth and reliable power for consistent performance
• The Z1 107S is designed for long rides also in terms of comfort: the high-back seat, side access, and adjustable steering column facilitate mounting and dismounting, while ensuring ergonomic use
• Large rear wheels improve traction and provide a smooth ride over various terrains. The integrated Synchro Steer system ensures precise steering and tight turns, guaranteeing controlled maneuvers and clean lines
• The striking anthracite color with yellow accents completes the modern and powerful look

TECHNICAL DATA

ENGINE

Engine: Cub Cadet V-Twin
Displacement: 679 cc
Rated power: 11.9 KW
Engine type: Twin-cylinder
Fuel tank capacity: 13.25 l

TRANSMISSION

Transmission: Dual Hydro
Speed: Infinitely variable
Control: Pedal

CUTTING SYSTEM

Working area: 10000 m²
Cutting width: 107 cm
Cutting height: 25–114 mm
Cutting deck: Welded
Number of blades: 2
Blade engagement: Electromagnetic
Deck height positions: 15 positions
Deflector: Standard
Mulching kit: Standard

COLLECTION

Basket: Optional 230 l (19B70054100)

FRAME

Front axle: Steel
Steering radius: 0 cm
Wheel bearings: Bronze bushes

BATTERY

Battery: 12 V, 210 cca AGM

COMFORT

Seat: High-back with armrests
Seat adjustment: Lever
Reverse mowing (RevTEK): Standard

DIMENSIONS

Dimensions (L / W / H): 210 / 132 / 116 cm
Net weight: 267 Kg
