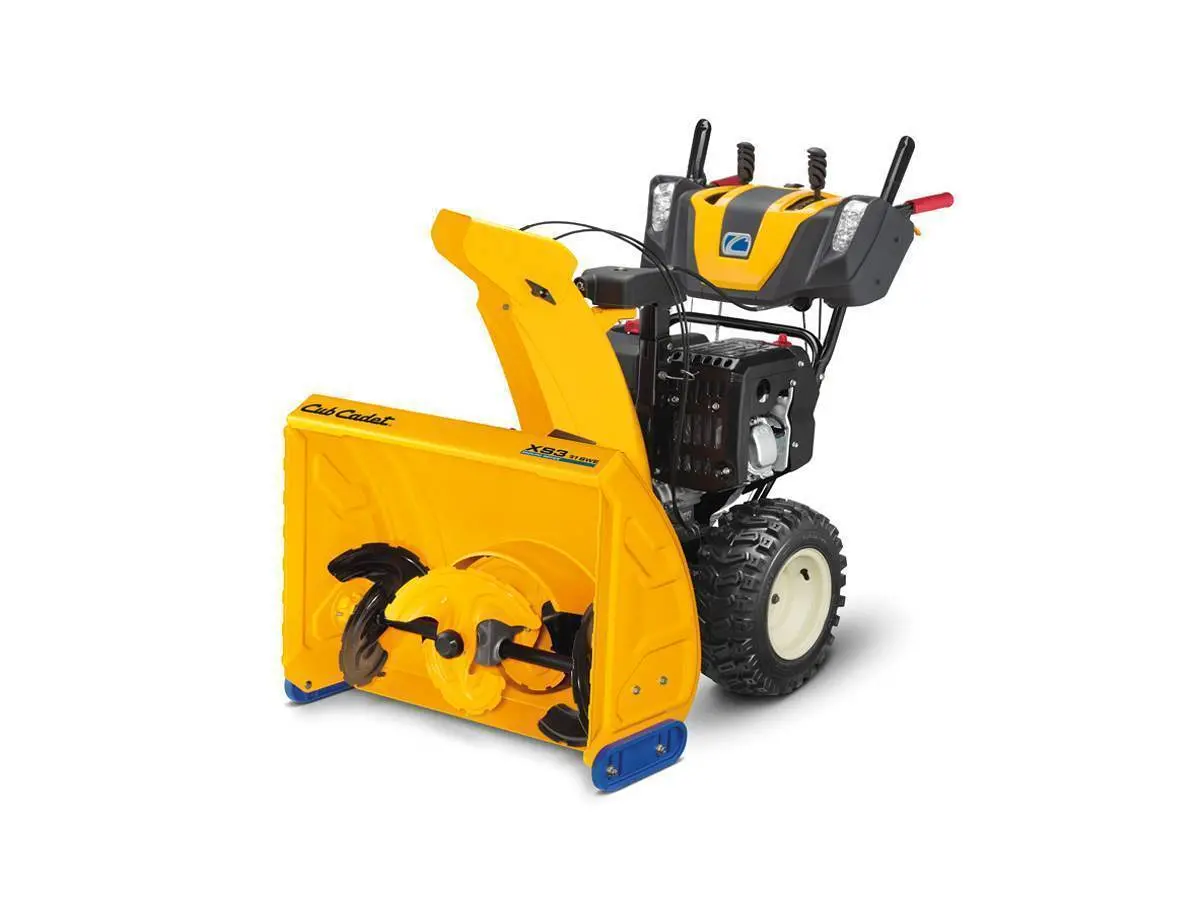

Cub cadet XS3 66 SWE Snow Blower

• The new Cub Cadet XS3 66 SWE snowblower with its new 3-stage cleaning system offers 25% more productivity!
• The new, exclusive 3X series with 3-stage technology. In the first stage, snow is directed by two lateral X segments towards the center. In the second stage, a central X segment pierces the snow like an oversized drill and pushes it at high speed towards the third stage, the vertical auger wheel. Here the snow is forcefully thrown upwards through the metal discharge chute, in the direction specified by the operator.
• The Cub Cadet XS3 series snowblowers are capable of handling even heavy snow conditions. The Cub Cadet OHV 4-stroke engines with electric start simplify snowblower ignition.
• The PowerSteering system and the high-strength steel auger allow work even in the toughest conditions. The tall discharge chute and steel side blades particularly facilitate work on heavy snow and ice.

TECHNICAL DATA

ENGINE

Engine: Cub Cadet
Displacement: 420 cm3
Rated power: 7.8 / 3600 kW/min-1
Engine ignition: 230V Electric start
Tank capacity: 4. 8 liters

ROTOR SYSTEM

Working width: 66
Working height: 58
Skids: Cool Blue Special plastic material to avoid damaging the ground
Rotor diameter: 30 cm
Material: steel
Rotor system: Xtreme-Auger 3-stage
Impeller diameter: 30
Grease fittings: Maintenance-free

TRANSMISSION

Power Steering: Yes
Number of speeds: 6 forward / 2 reverse
Tires: 16 x 4.8, X-Trac winter tread

DISCHARGE SYSTEM

Chute crank rotation: 200°
Chute deflector control: 2-way joystick

COMFORT

Heated handles: Standard
Lights: 28 V / 28 W

DIMENSIONS

LpA / LwA / LwAg: 89 / 99 / 101
Body vibration value: (K-factor) (m/s2) /
Hand uncertainty value: (K-factor) (m/s2) 5 / 1.5
Dimensions: 140 / 72 / 110 cm
Net weight: 116 Kg

EQUIPMENT

Rotor system
The innovative design of our rotor system allows the snow blower to advance with extreme ease through the snow, thanks to the central rotor positioned in the direction of travel. The central rotor is assisted in its task by the side rotors, which push the snow from right to left towards the center. At this point, the rotor imparts strong acceleration to the snow, which is propelled at high speed towards the rear impeller, which in turn is responsible for throwing the snow up to 18 meters away

Clutch lock
The clutch lock system allows you to keep both the drive and the rotors engaged simultaneously with one hand. This way, even when moving one hand to control the discharge chute and speed, you can continue working without stopping. This greatly increases efficiency during use and minimizes downtime

Powerful OHV Winter Engines
The Cub Cadet 4-Stroke OHV winter engines are specifically designed for use in harsh temperatures, minimizing pollutant emissions. Thanks to the fuel tank capacity, it is possible to work for long periods without refueling.

POWER STEERING System
The innovative "Power Steering" assist system allows you to maneuver the turbine using two small levers positioned under the handles
