- The new, exclusive 3X series with 3-stage technology. In the first stage, the snow is guided to the center by two lateral X-shaped segments. There, in the second stage, a central X-shaped segment acts as an oversized auger, cutting the snow and pushing it at high speed towards the third stage: the vertical impeller. Here, the snow is powerfully expelled upwards through the metal discharge chute, in the direction specified by the operator

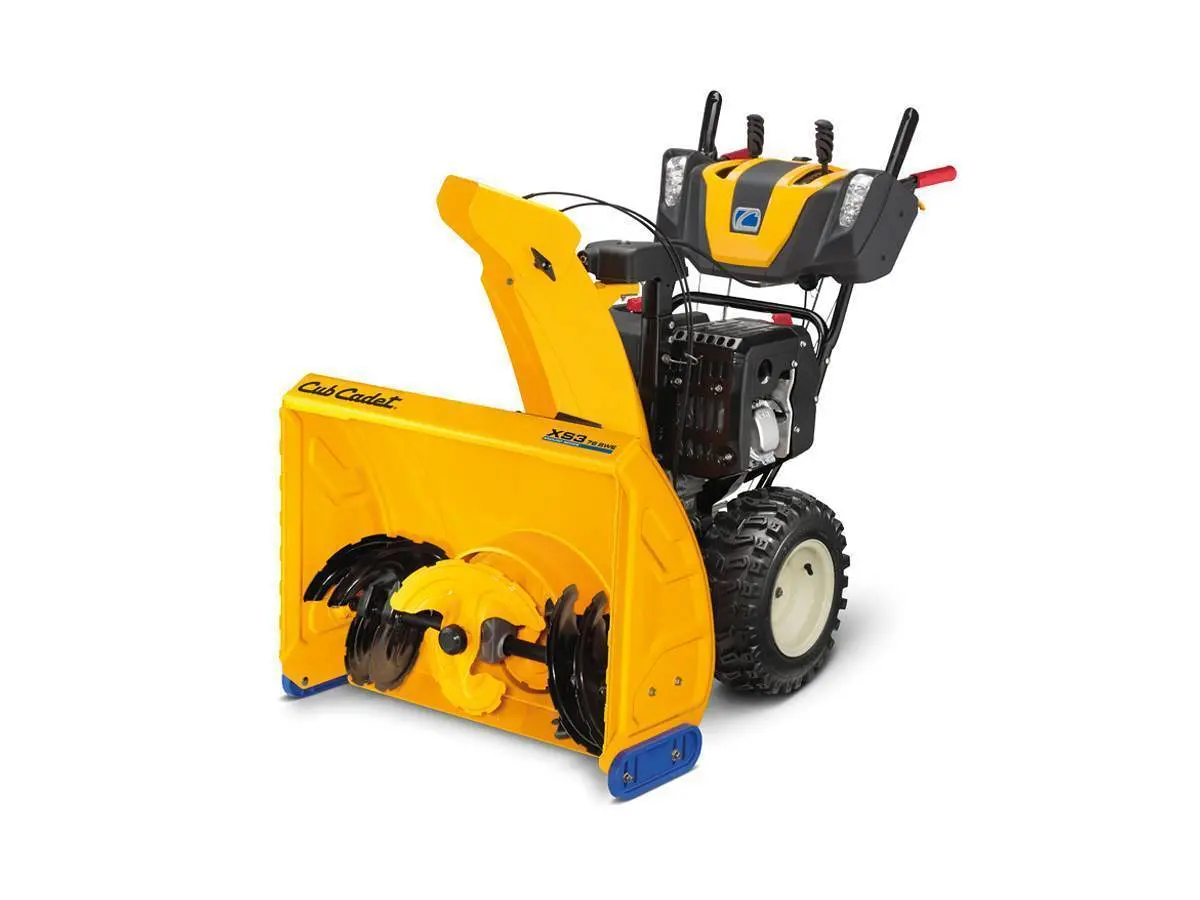

- The Cub Cadet XS3 series snow blowers are capable of handling even the toughest snow conditions. The Cub Cadet OHV 4-stroke engines with electric start simplify snowblower startup
- The PowerSteering system and heavy-duty steel auger allow clearing even in the most challenging conditions. The tall discharge chute and steel skid shoes particularly facilitate work in heavy snow and ice
TECHNICAL DATA
Engine: Cub Cadet
Displacement: 420 cm3
Rated power: (kW/min-1) 7.8 / 3600
Engine ignition: 230V Electric start
Fuel tank capacity: 4.
8 liters
ROTARY SYSTEM
Working width: 76
Height: 58
Skids: Cool Blue Special plastic material to avoid damaging the ground
Rotary diameter: 30 cm
Material: steel
Rotary system: Xtreme-Auger 3-stage
Impeller diameter: 30
Grease fittings: Maintenance-free
TRANSMISSION
Power Steering: Yes
Number of speeds: 6 forward/2 reverse
Tires: 16 x 6.5, X-Trac winter tread
DISCHARGE SYSTEM
Chute rotation: 200° crank handle
Chute deflector control: 2-way joystick
COMFORT
Heated handles: Standard
Lights: 28 V / 28 W
DIMENSIONS
LpA /LwA/LwAg: 90 / 100 / 102
Hand-arm uncertainty value: 5 / 1.5 m/s2
Dimensions: 140 / 80 / 110 cm
Net weight: 120 Kg
EQUIPMENT
Rotary system
The innovative design of our rotary system allows the turbine to advance with extreme ease through the snow, thanks to the central auger positioned in the direction of travel. The central rotor is assisted in its task by the side augers, which push the snow from right to left towards the center. At this point, the rotor imparts strong acceleration to the snow, which is propelled at high speed towards the rear impeller, which in turn is responsible for throwing the snow up to 18 meters away
Clutch lock
The clutch lock system allows the traction and the augers to remain engaged simultaneously, with just one hand. This way, even when moving one hand to control the discharge chute and speed, it is possible to continue working without stopping.
This greatly increases efficiency during use and minimizes downtime
Powerful OHV Winter Engines
The Cub Cadet 4-Stroke OHV winter engines are specifically designed for use in harsh temperatures, minimizing pollutant emissions. Thanks to the fuel tank capacity, it is possible to work for long periods without refueling.
POWER STEERING System
The innovative "Power Steering" assistance system allows you to maneuver the turbine using two small levers positioned under the handles
