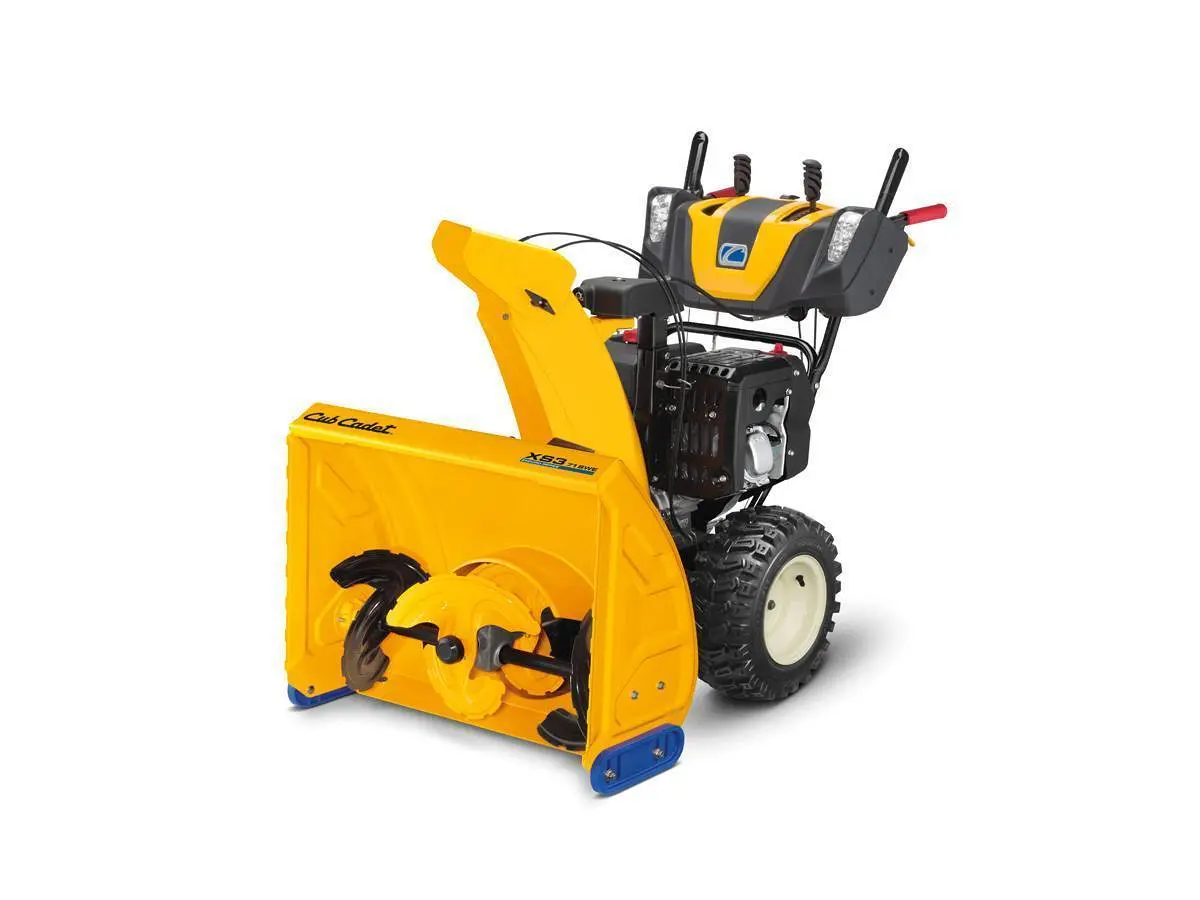

Cub cadet XS3 71 SWE Snow Blower

• The new Cub Cadet XS3 71 SWE snowblower with its new 3-stage cleaning system offers 25% more productivity
• The new, exclusive 3X series with 3-stage technology. In the first stage, snow is channeled by two lateral X segments towards the center. In the second stage, a central X segment pierces the snow like an oversized drill and pushes it at high speed towards the third stage, the vertical auger wheel. Here the snow is forcefully thrown upwards through the metal discharge chute, in the direction specified by the operator
• The Cub Cadet XS3 series snowblowers are capable of handling even heavy snow conditions. The Cub Cadet OHV 4-stroke engines with electric start simplify snowblower startup
• The PowerSteering system and the high-strength steel auger allow work even in the toughest conditions. The tall discharge chute and steel side blades particularly facilitate work on heavy snow and ice

TECHNICAL DATA

ENGINE

Engine: Cub Cadet
Displacement: 420 cm³
Rated power: 7. 8 KW
Starter: 230V Electric start
Fuel tank capacity: 4.8 l

TILLER SYSTEM

Working width: 71 cm
Working height: 58 cm
Cool Blue skids: Special plastic material to avoid damaging the ground
Tiller diameter: 30 cm
Tiller material: Steel
Tiller system: Xtreme-Auger 3-stage
Impeller diameter: 30 cm
Grease fittings: Maintenance-free

TRANSMISSION

Power Steering: Yes
Number of speeds: 6 forward/2 reverse
Wheels: 16 x 5, X-Trac winter profile

DISCHARGE SYSTEM

Chute rotation: 2-way joystick/200°
Chute deflector control: 2-way joystick

COMFORT

Heated handles: Standard
Lights: 28 V / 28 W

DIMENSIONS

Dimensions (L / W / H): 140 / 77 / 110 cm
Net weight: 118 kg

EQUIPMENT

Tiller system
The innovative design of our tiller system allows the turbine to advance extremely easily through the snow, thanks to the central tiller positioned in the direction of travel. The central rotor is assisted in its task by the side tillers, which push the snow from right to left towards the center. At this point, the rotor strongly accelerates the snow, which is propelled at high speed towards the rear impeller, which in turn is responsible for throwing the snow up to 18 meters away

Clutch lock
The clutch lock system allows you to keep both the drive and the tillers engaged simultaneously, with just one hand. In this way, even when moving one hand to check the exhaust chute and speed, it is possible to continue working without having to stop. This significantly increases efficiency during use and minimizes downtime.

Powerful OHV Winter Engines
The Cub Cadet 4-Stroke OHV winter engines are specially designed for use in harsh temperatures, minimizing pollutant emissions. Thanks to the fuel tank capacity, it is possible to work for long periods without refueling.

POWER STEERING System
The innovative "Power Steering" assistance system allows you to maneuver the turbine using two small levers located under the handles
