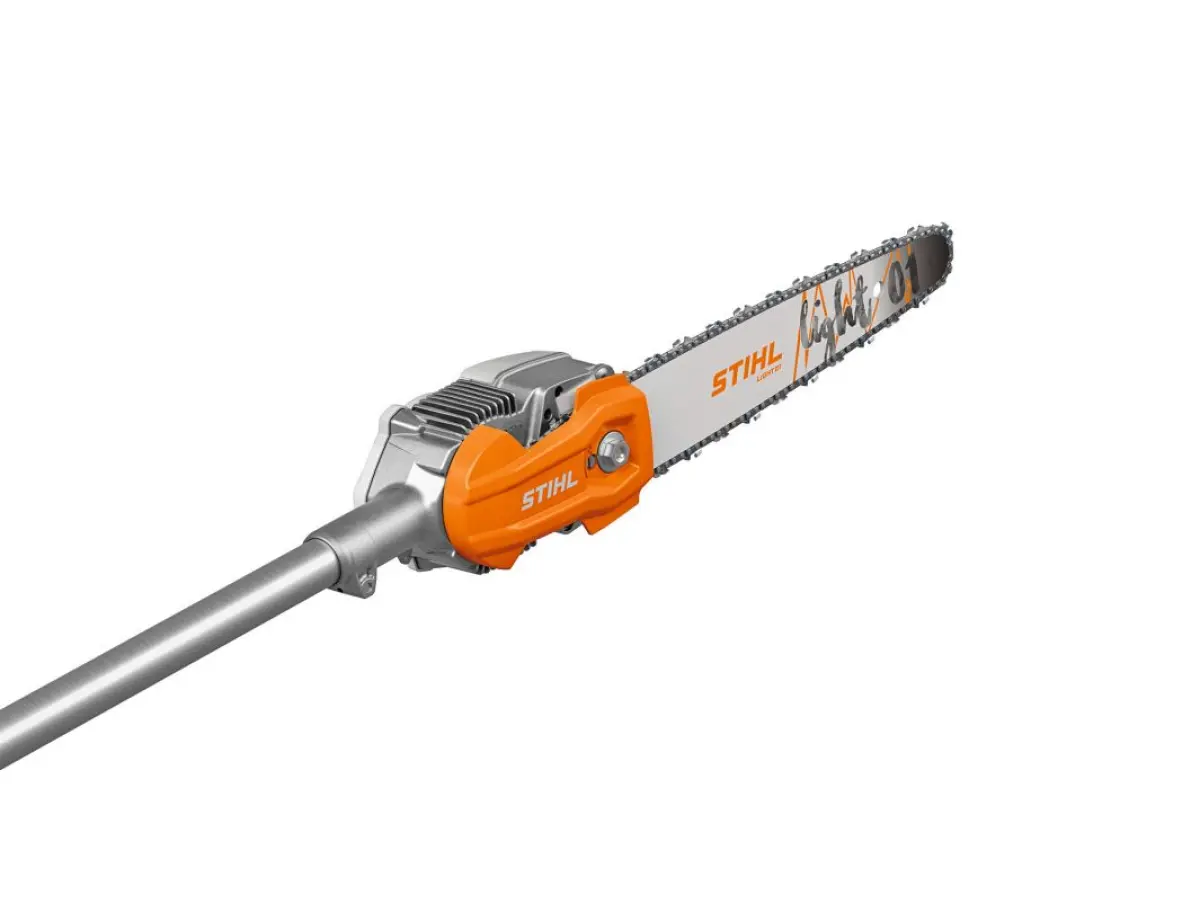

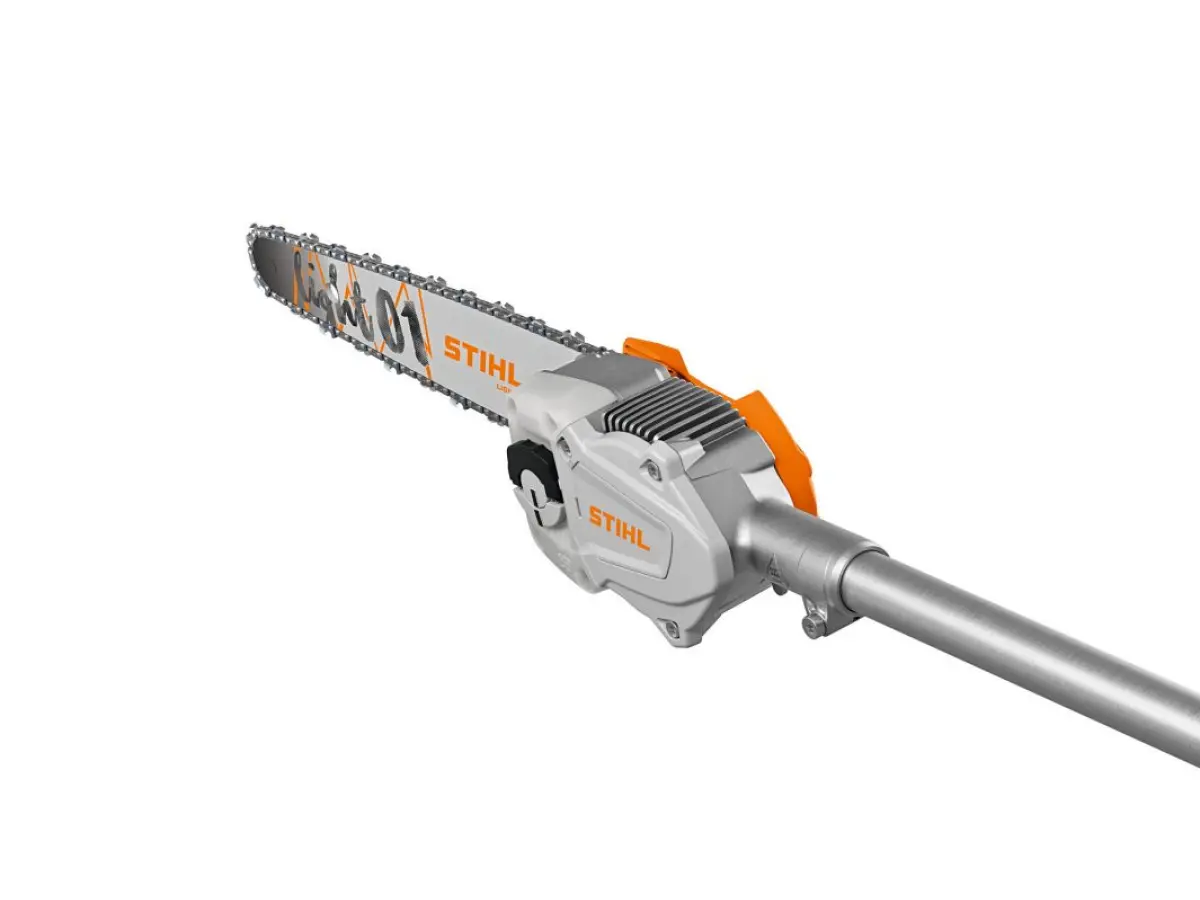

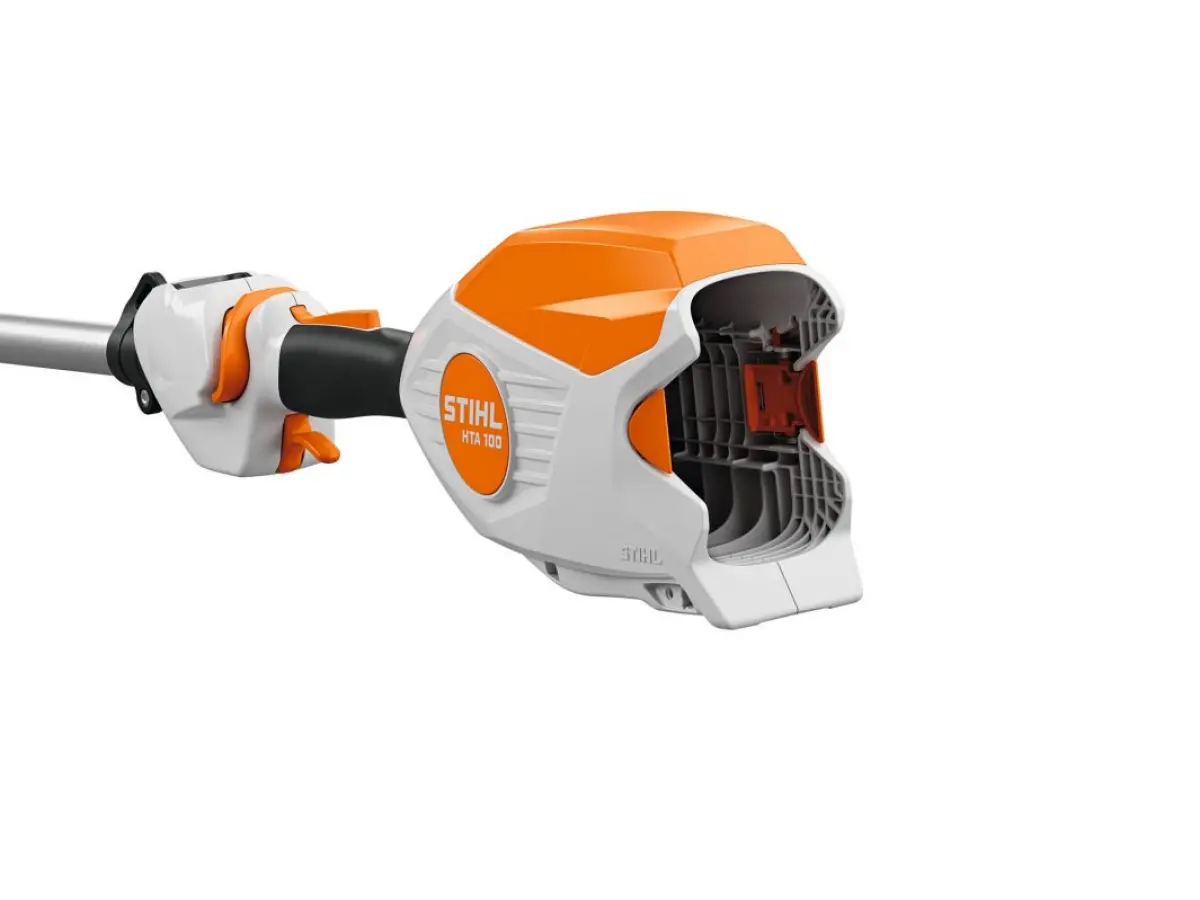

Stihl HTA 100 Battery Pruner

SOLD WITHOUT BATTERIES AND CHARGER

• The STIHL HTA 100 battery-powered pole pruner, in the pruning version, is part of the STIHL ALLPRO system and is designed for professional users in municipal maintenance, landscaping, and tree care sectors
• It is ideal for pruning, crown reduction, and thinning tasks, allowing precise work with a lightweight tool
• The brushless motor ensures high cutting capacity and consistent power. Combined with the particularly lightweight gearbox, it guarantees balanced handling
• The redesigned gearbox improves visibility of the cutting area, facilitating precise and controlled work within the canopy
• The pruning version is equipped with a 1/4" PH3 chain, designed to deliver clean cuts. The various ergonomic handle positions, balanced weight distribution, and the short, lightweight pole design allow for less fatigue even during extended use
• An integrated branch hook facilitates the removal of cut branches
• The battery-powered pole pruner is compatible with STIHL harness systems and is engineered for continuous professional use

TECHNICAL DATA

PRUNER
Nominal voltage: 36 V
Max voltage: 40 V
Power consumption: 1.40 kW
Power output: 1.10 kW
Weight without battery: 2.7 kg
Maximum device length with tools: 182 cm
Pole length: 30 cm
Groove width: 1.10 mm
Chain pitch: 1/4" P
Sound pressure level: 85 dB(A)
Sound power level: 94 dB(A)
Vibration value left: 1.2 m/s²
Vibration value right: 0. 7 m/s²

BATTERY
Battery system: ALLPRO/AP
Recommended battery: AP 200. 0 P
Maximum operating time of AP 100 battery: 18 min
Maximum operating time of AP 100. 0 P battery: 21 min
Maximum operating time of AP 20 battery: 27 min
Maximum operating time of AP 200 battery: 35 min
Maximum operating time of AP 200 S battery: 40 min
Maximum operating time of AP 200. 0 P battery: 42 min
Maximum operating time of AP 30 battery: 51 min
Maximum operating time of AP 300 battery: 42 min
Maximum operating time of AP 300 S battery: 53 min
Maximum operating time of AP 300. 0 P battery: 62 min
Maximum operating time of AP 500 S battery: 63 min
Maximum operating time of AR 2000 L battery: 202 min
Maximum operating time of AR 3000 L battery: 303 min

EQUIPMENT

BRANCH HOOK
Removal of cut material. Thanks to the sturdy branch hook, it is possible to remove detached and cut branches from great heights

SPOOL COVER WITH CUTTING GUIDE
Spool cover with cutting guide line and side discharge of sawdust

LIGHTWEIGHT AND ROBUST MAGNESIUM TRANSMISSION
Reduced weight and high robustness. Especially in the professional sector, a reduced weight is of great importance when working. Thanks to the lightness of magnesium, weight is reduced while maintaining the transmission’s robustness unchanged. In this way, the workload is lightened and the tool's long service life is ensured

EC ELECTRIC MOTOR
The STIHL EC electric motor, brushless, operates with great energy efficiency and virtually no wear, thanks to STIHL's EC electronics. The intelligent electronic management continuously recognizes the battery integrated into the tool and delivers the appropriate power to the electric motor for the battery. This ensures that the tool always operates at maximum performance throughout the battery charge duration

SIDE CHAIN TENSIONER
The side chain tensioner allows easy and safe chain tensioning

EXCELLENT TOOL BALANCE
REDUCED FATIGUE DURING WORK. Thanks to the ideal battery center of gravity, this tool has a reduced tilt moment.

STRAP LOOP
The hedge trimmer features a convenient strap loop
