Stihl Battery-powered Pruner HTA 140 B

Compatible with AP and AR series batteries

• The STIHL HTA 140 B battery-powered telescopic pruner, lightweight and robust, efficiently supports professionals in tree care, fruit growing, and municipal services during thinning, removal of dead or storm-damaged wood, and pruning of fruit trees
• It is also suitable for farms, small businesses such as maintenance services, and for the care of gardens and private properties with tall trees
• The professional telescopic pole, optimized and particularly rigid, allows quick length adjustment and precise positioning, enabling accurate cuts even on tall trees. The pole can be extended up to 405 cm, with a total tool length ranging from 285 cm to 405 cm. This way, you can easily reach canopies up to about 5 m high for thinning operations
• You can use the HTA 140 with STIHL 3/8"P or 1/4"P chains, depending on whether you prefer powerful and fast thinning or finer, more precise cuts for tree care. The lightweight magnesium gearbox with integrated sturdy branch hook and the high-quality EC motor operate quietly and with low vibrations

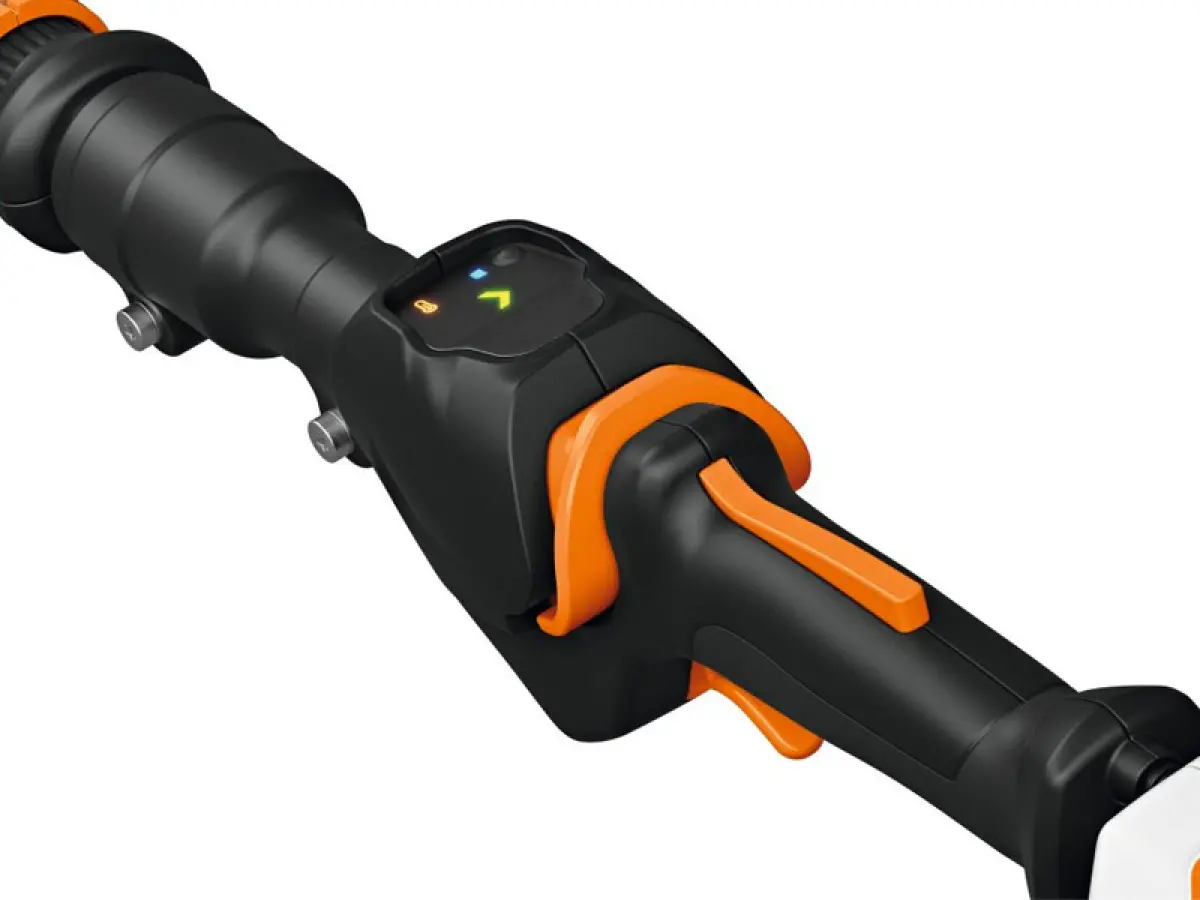

• Operation is simple thanks to the multifunction handle with digital control unit. The variable throttle control offers particularly precise control during cutting. Additionally, the electric unlock with a 5-second activation time prevents interruptions during grip changes in different working situations, making use very comfortable.
• The handle also integrates the HMI ADVANCE PLUS module with LED display and built-in STIHL Smart Connector, which allows the main device data to be transmitted to smartphones or tablets
• The easily cleanable air filter ensures optimal cooling of the electric motor and therefore a long tool lifespan
• The STIHL HTA 140 B telescopic pruner also comes standard with the robust STIHL support foot for HTA 135 and HLA 135, which protects the motor and battery from ground contact

TECHNICAL DATA

PRUNER

Rated voltage: 36 V
Max voltage: 40 V
Power consumption: 1.50 kW
Power: 1.20 kW
Device weight without battery: 6.7 kg
Bar length: 30 cm
Groove width: 1.10 mm
Chain pitch: 3/8" P
Minimum device length with tool: 285 cm
Maximum device length with tools: 405 cm
Sound pressure level: 87 dB(A)
Sound power level: 101 dB(A)
Vibration value left: 3.2 m/s²
Vibration value right: 2.9 m/s²

BATTERY

Battery system: AP
Recommended battery: AP 300 S
Maximum runtime with battery AP 20: 28 min
Maximum runtime with battery AP 30: 52 min
Maximum runtime with battery AP 200 S: 36 min
Maximum battery runtime AP 300 S: 54 min
Maximum battery runtime AP 500 S: 70 min
Maximum battery runtime AR 2000 L: 254 min
Maximum battery runtime AR 3000 L: 277 min

EQUIPMENT



SPOOL COVER WITH CUTTING GUIDE
Spool cover with cutting guide line and side discharge of sawdust

PROFESSIONAL TELESCOPIC SHAFT
Particularly rigid, allows precise positioning during cutting

LIGHTWEIGHT AND ROBUST MAGNESIUM TRANSMISSION
Reduced weight and high robustness. Especially in the professional sector, a reduced weight is of great importance when working. Thanks to the lightness of magnesium, weight is reduced while maintaining the transmission’s robustness. This lightens the workload and ensures a long tool life

PROTECTIVE BASE
Standard, prevents contact with the ground

BRANCH HOOK
Removal of cut material. Thanks to the sturdy branch hook, it is possible to remove detached and cut branches from great heights





TELESCOPIC SHAFT
Greater extension. Thanks to the extendable telescopic pole, it is possible to work comfortably from the ground at high heights. It is ideal for cutting branches up high or trimming tall hedges. The telescopic pole can be adjusted without the need for tools

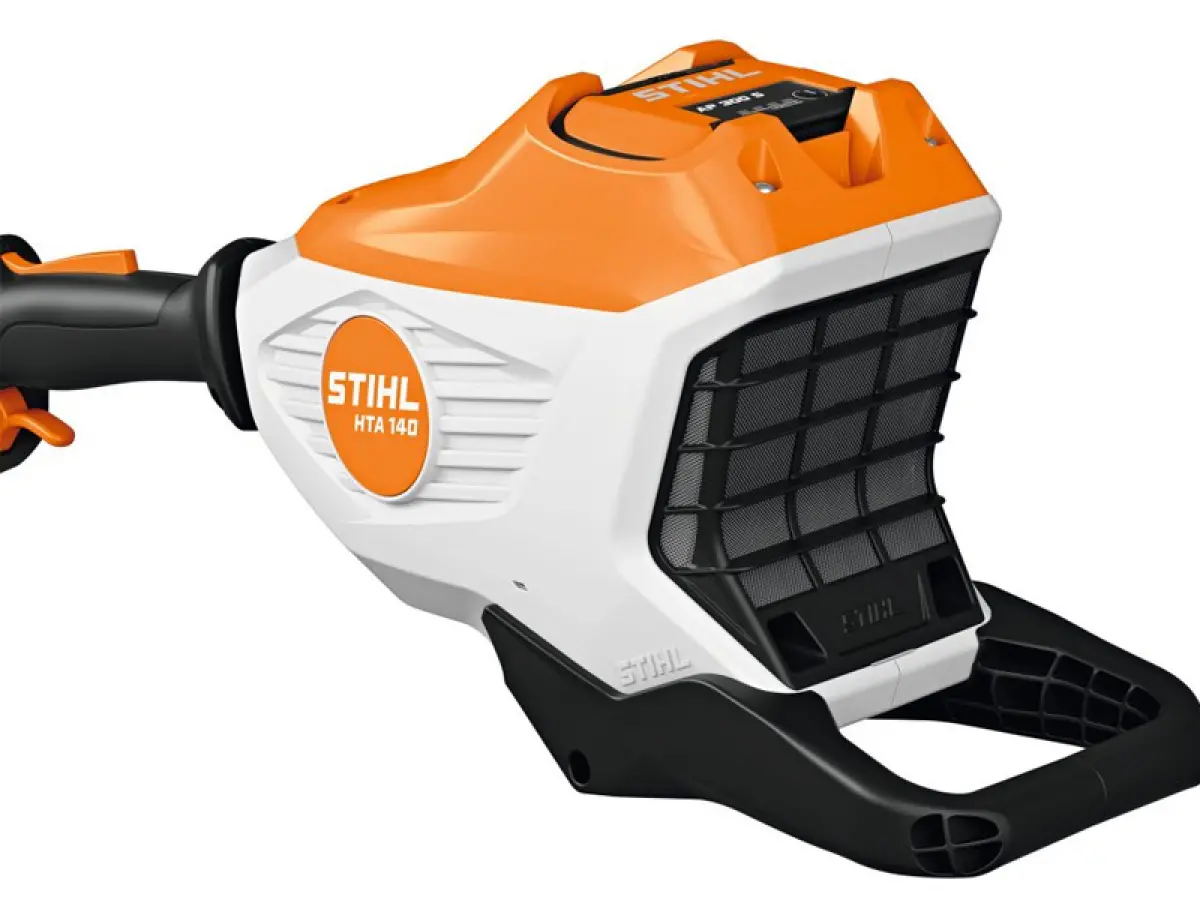

BATTERY SUPPORT IN THE MOTOR HOUSING

Direct power supply to the tool. With this tool, it is possible to insert the necessary rechargeable battery of the STIHL AP system directly into the motor housing. This increases mobility and flexibility during work





METAL MESH AIR FILTER

Optimal engine cooling. The air filter with fine metal mesh purifies the air and ensures optimal engine cooling.
