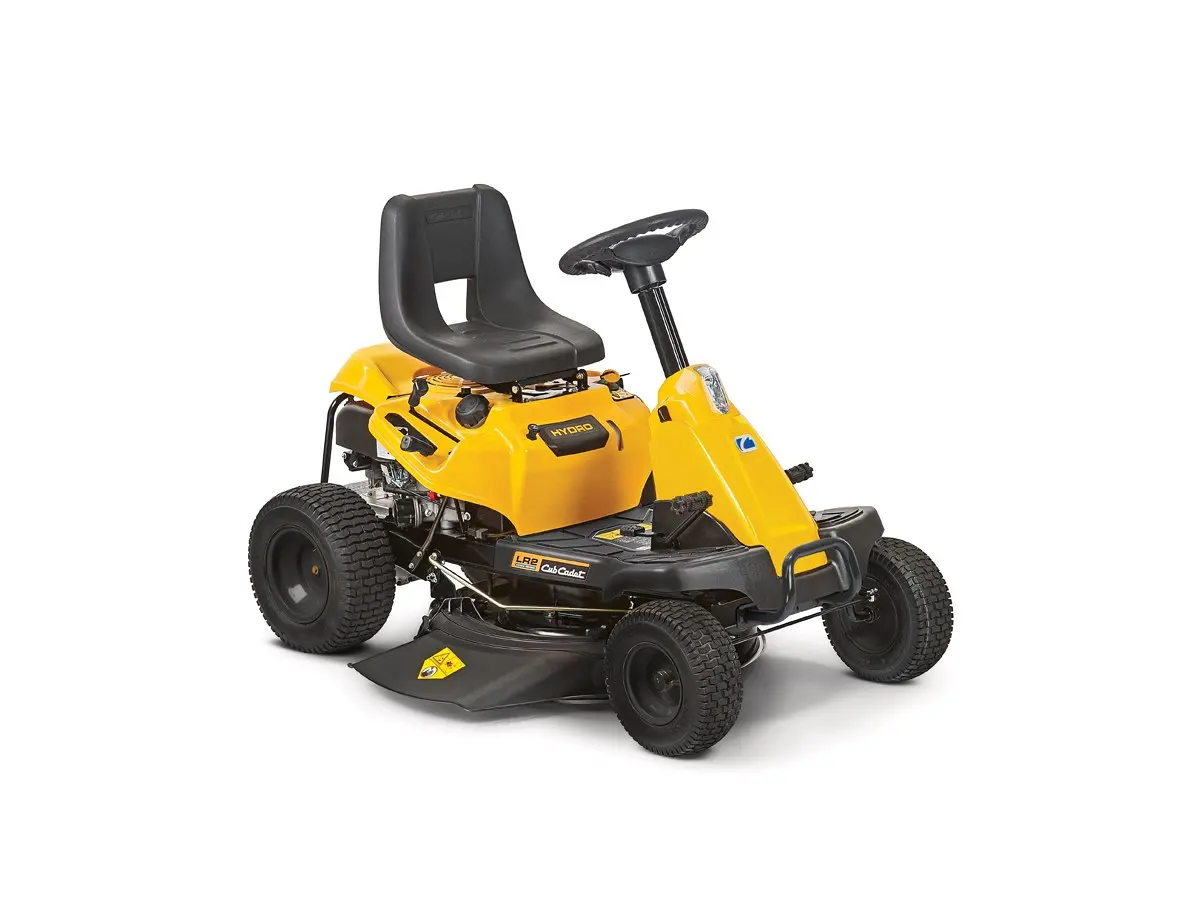

Cub cadet LR2 NS76 Lawn Tractor

• Modern design, versatility, and a perfect grass cut: these are just three of the main features of the Cub Cadet MINI-RIDER
• The agile and compact Cub Cadet MINI-RIDERS are equipped with one of Cub Cadet's most powerful and reliable engines and require very little maintenance
• Thanks to their unique design, Cub Cadet MINI-RIDERS take up only slightly more space than a traditional lawn mower

TECHNICAL DATA

ENGINE

Engine: Cub Cadet OHV
Displacement: 439 cm³
Rated power: 8.6 KW
Engine type: Single-cylinder
Fuel tank capacity: 4.9 lt
Lubrication: Automotive-style pressurized oil pump with external filter

TRANSMISSION

Transmission: Hydro
Speed (max): Variable
Control: Pedal

CUTTING SYSTEM

Working area: 3000 m²
Cutting width: 76 cm
Cutting height: 38–95 mm
Cutting options: 2-in-1
Number of blades: 1
Blade engagement: Manual lever
Deck height positions: 5 positions
Deflector: Standard
Wash nozzle: Standard
Mulching kit: Optional (code 196-334-600)

DISCHARGE SYSTEM

Grass collection bag: 115 l Optional (19A30014OEM)
Deflector: Standard

FRAME

Front axle: Steel
Steering radius: 46 cm
Wheel bearings: Bushings

BATTERY

Battery: 12 V, 135 CCA, AGM
Lights: LED

COMFORT

Seat: High-back Comfort
Seat adjustment: Screw
Reverse mowing (RevTEK): Standard
Charger: Optional (code 196-397-000)

DIMENSIONS

Dimensions (L / W / H): 157 / 85 / 112 cm
Net weight: 127 Kg

EQUIPMENT

INTELLIGENT PARKING ASSISTANCE (IPA)
Thanks to the new IPA system, parking your LR2 in the garage or garden will be easier. The "intelligent" parking system automatically reduces your MINI-RIDER’s speed by 50% when you select reverse, allowing you to maneuver safely and with perfect control

REVTEK™ TECHNOLOGY
RevTEK™ – for mowing grass in reverse: naturally, for greater safety, it is important that no children or animals are nearby (except LR2 FR60)

HYDRO TRANSMISSION
The LR2 models are equipped with hydrostatic transmission to guarantee you an unparalleled driving experience in any condition. The parking brake is located on the left side, while the drive pedal is on the right

LED LIGHTS
Thanks to the new LED headlights, you can work even during the evening hours, when light fades (except LR1 MR76, LR1 MS76 and LR2 FR60)

"SUPER GRIP" PEDALS
The LR2 model is equipped with the new "SUPER GRIP" pedals, ensuring perfect grip in any condition

TELESCOPIC STEERING COLUMN
The steering wheel with soft-grip handle offers maximum comfort.

ADJUSTABLE SEAT
You can adjust the seat of your MINI-RIDER according to your needs
