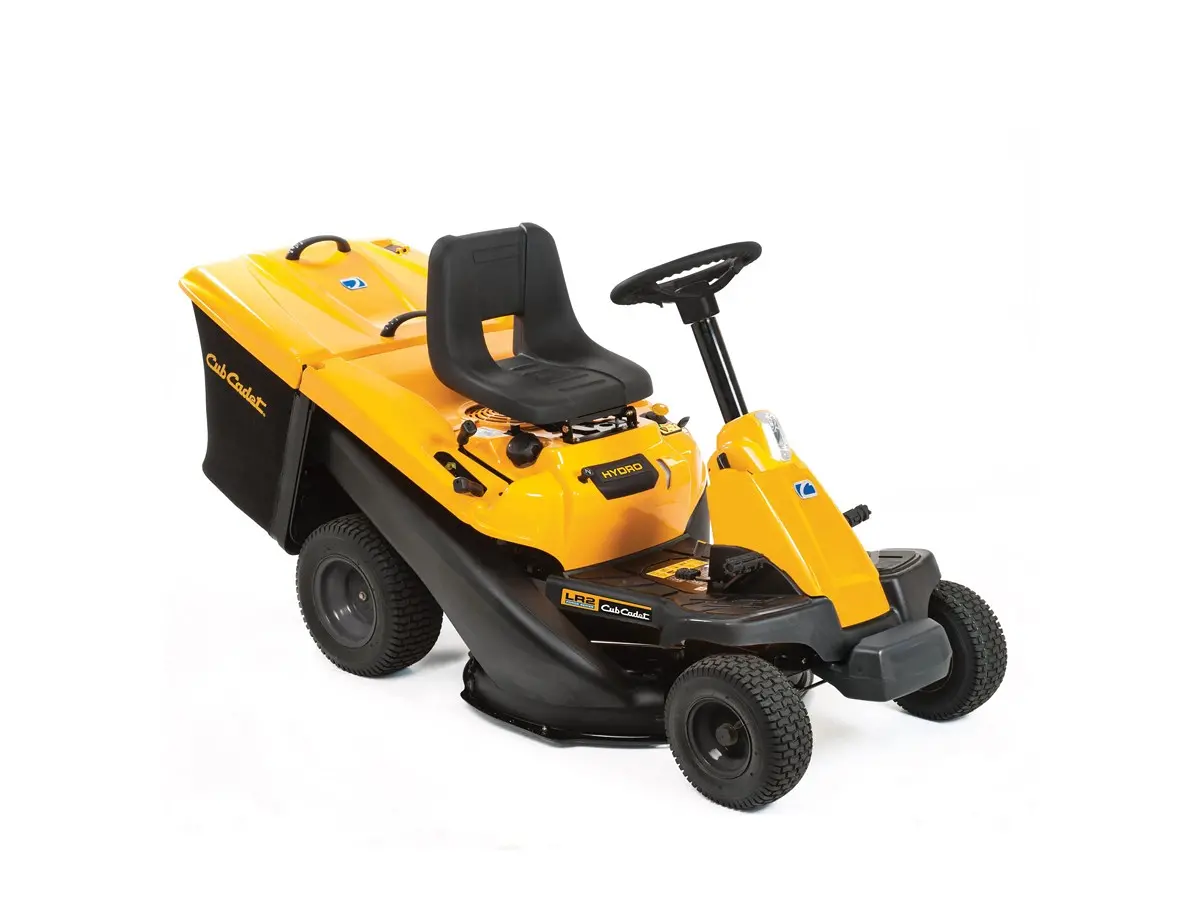

- Modern design, versatility, and a perfect cut: these are just three of the main features of the Cub Cadet MINI-RIDER
- The agile and compact Cub Cadet MINI-RIDERS are equipped with one of Cub Cadet's most powerful and reliable engines and require very little maintenance
- Thanks to their unique design, Cub Cadet MINI-RIDERS take up only slightly more space than a traditional lawn mower
TECHNICAL DATA
ENGINE
Engine: Cub Cadet OHV
Displacement: 439 cm³
Rated power: 8.1 KW
Engine type: Single-cylinder
Fuel tank capacity: 4.9 lt
Lubrication: Automotive-style pressurized oil pump with external filter
TRANSMISSION
Transmission: Hydro
Speed (max): Variable
Control: Pedal
CUTTING SYSTEM
Working area: 2500 m²
Cutting width: 76 cm
Cutting height: 38–95 mm
Cutting options: 3-in-1
Number of blades: 1
Blade engagement: Manual lever
Deck height positions: 5 positions
Wash nozzle: Standard
Mulching kit: Optional (code
196-334-600)
DISCHARGE SYSTEM
Collection bag: Standard
Bag capacity: 200 lt
Basket lever / Hardtop: 2 handles / Plastic
Full bag indicator/Deflector: Standard/Standard
FRAME
Front axle: Steel
Front bumper: Standard
Steering radius: 46 cm
Wheels (Front/Rear): 13 x 5 / 16 x 6.5
Wheel bearings: Bushings
BATTERY
Battery: 12 V, 135 CCA, AGM
Lights: LED
COMFORT
Seat: High-back Comfort
Seat adjustment: Screw
Reverse cutting (RevTEK): Standard
DIMENSIONS
Dimensions (L / W / H): 225 / 86 / 112 cm
Net weight: 172 Kg
EQUIPMENT
INTELLIGENT PARKING ASSISTANCE (IPA)
Thanks to the new IPA system, parking your LR2 in the garage or garden will be easier. The "intelligent" parking system automatically reduces your MINI-RIDER's speed by 50% when you select reverse, allowing you to maneuver safely and with perfect control
REVTEK™ TECHNOLOGY
RevTEK™ – for cutting grass in reverse: naturally, for greater safety, it is important that there are no children or animals nearby (except LR2 FR60)
HYDRO TRANSMISSION
The LR2 models are equipped with hydrostatic transmission to guarantee you an unparalleled driving experience in any condition.
The parking brake is located on the left side, while the drive pedal is on the right
LED LIGHTS
Thanks to the new LED headlights, you can work even during the evening hours, when light fades (except LR1 MR76, LR1 MS76, and LR2 FR60)
"SUPER GRIP" PEDALS
The LR2 model is equipped with the new "SUPER GRIP" pedals, ensuring perfect traction in any condition
TELESCOPIC STEERING COLUMN
The steering with soft-grip handle offers maximum comfort.
FRONT BUMPER
The wide front bumper (only for models with collection) protects your MINIRIDER from impacts
