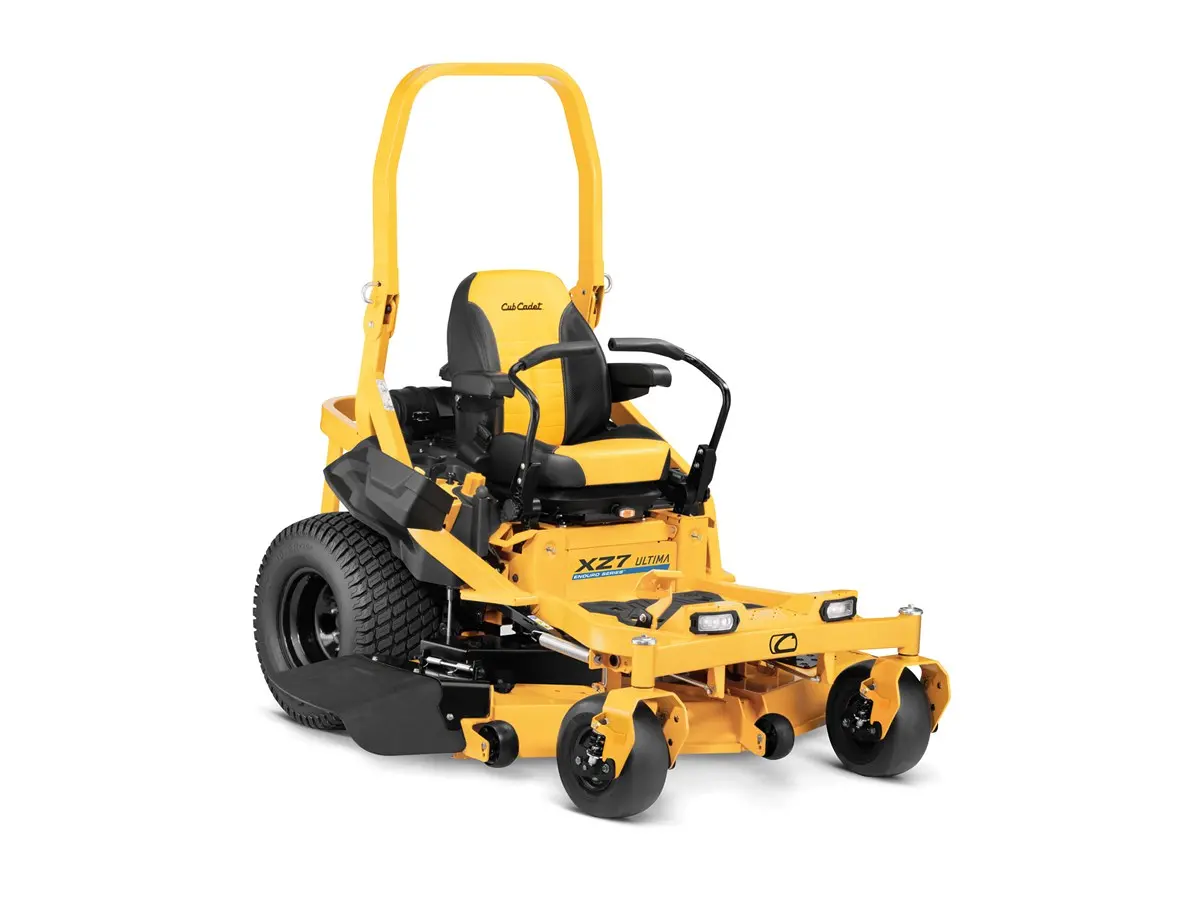

Cub cadet XZ7 L152i Lawn Tractor

• The Cub Cadet XZ7 L152i is a zero-turn riding mower designed to deliver exceptional cutting performance on areas up to 15,000 m²
• Equipped with a powerful 747cc KOHLER EFI engine and a 152 cm cutting width, it ensures efficiency and precision in every operation

TECHNICAL DATA

ENGINE

Engine: KOHLER EFI
Displacement: 747 cm3
Rated power: 14.8 / 2700 kW/min-1
Configuration: V-TWIN
Fuel tank capacity: 20.8 lt
Lubrication: Pressure lubrication with external filter

TRANSMISSION

Transmission: Dual Hydro
Control: Lever
Cruise control: Standard

CUTTING SYSTEM

Working area: 15000 m2/h
Cutting width: 152 cm
Cutting height: 25–114 mm
Cutting options: 3-in-1 option/reinforced welded deck
Number of blades: 3
Blade engagement: Electromagnetic
Cutting height adjustment: 16 positions
Deck wheels: 2 + Nose
Mulch kit: Standard

DISCHARGE SYSTEM

Bag capacity: Optional 380 l
Grass Deflector: Standard

FRAME

Front bumper: Steel tubular
Turning radius: 0 cm
Wheels (F/R): 13 x 6.5 / 24 x 12

ELECTRICAL

Battery: 12 V / 230 CCA
Lights: LED
Digital counter, oil indicator, oil change indicator (service): Standard / Standard
Safety systems: Standard

COMFORT

Premium seat: High backrest with armrests, individually adjustable suspension
Seat adjustment: Quick adjustment lever
2-lever steering wheel: Adjustable with Soft-Grip coating
Tool box: Standard
Reverse mowing: (RevTEK) Standard

DIMENSIONS

LpA /LwA/LwAg: 93 / 103 / 105 dB
Body vibration value (K-factor): 1 / 0.5 m/s2
Hand uncertainty value (K-factor): 5 / 1.5 m/s2
Dimensions (L / W / H): 233 / 177 / 134 cm
Net weight: 450 kg
