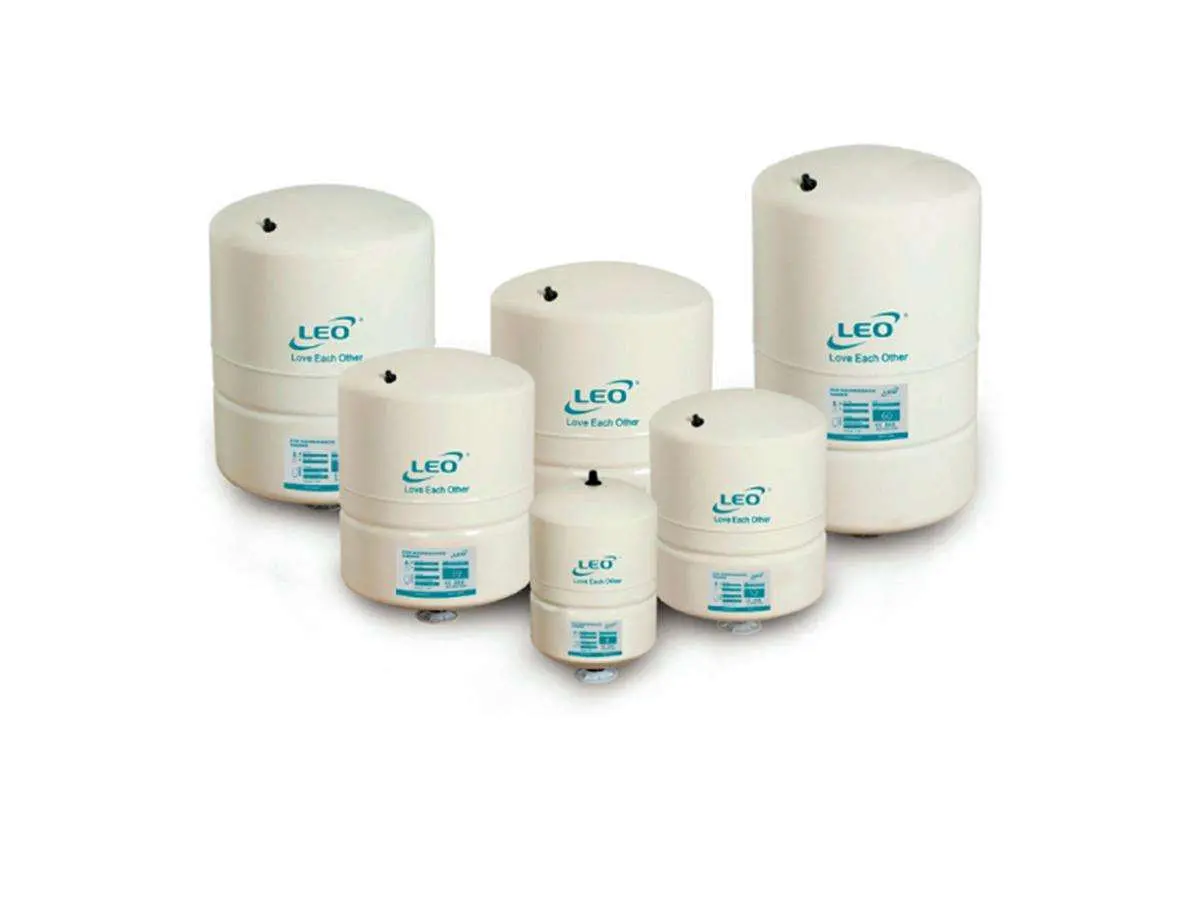

Leo 10 BAR Expansion Vessel with Butyl Membrane - LEO
Code: CUS-39103
Additional information on the product
Fast delivery with value insured
Secure payments
Other information
- LEO5LV Vertical
- Capacity: 5 liters
- LEO24LV Vertical
- Capacity: 24 liters
Height: 425 cm
Diameter: 300 cm - LEO12LV VERTICAL
- Capacity: 12 liters
Height: 352 cm
Diameter: 240 cm
- 10 BAR multifunction expansion vessel with butyl membrane, inner shell in non-toxic polypropylene
- No maintenance required
TECHNICAL DATA
Butyl membrane
Entire shell in non-toxic polypropylene
Double external coating (epoxy + polyurethane)
Totally leak-free
No maintenance required
Resistant to high pressures, up to 10 bar
Suitable for drinking water
LEGEND
A - Brass valve, double seal with additional o-ring, totally leak-free, resistant to high pressures
B - High-quality butyl membrane, food-grade and hygiene certification, approved and certified by European and US institutes
C - Double coating (epoxy primer and polyurethane finish)
D - BSP/NPT stainless steel connections for drinking water
E - Internal coating in food-grade polypropylene
F - High-quality plastic pump foot and support
