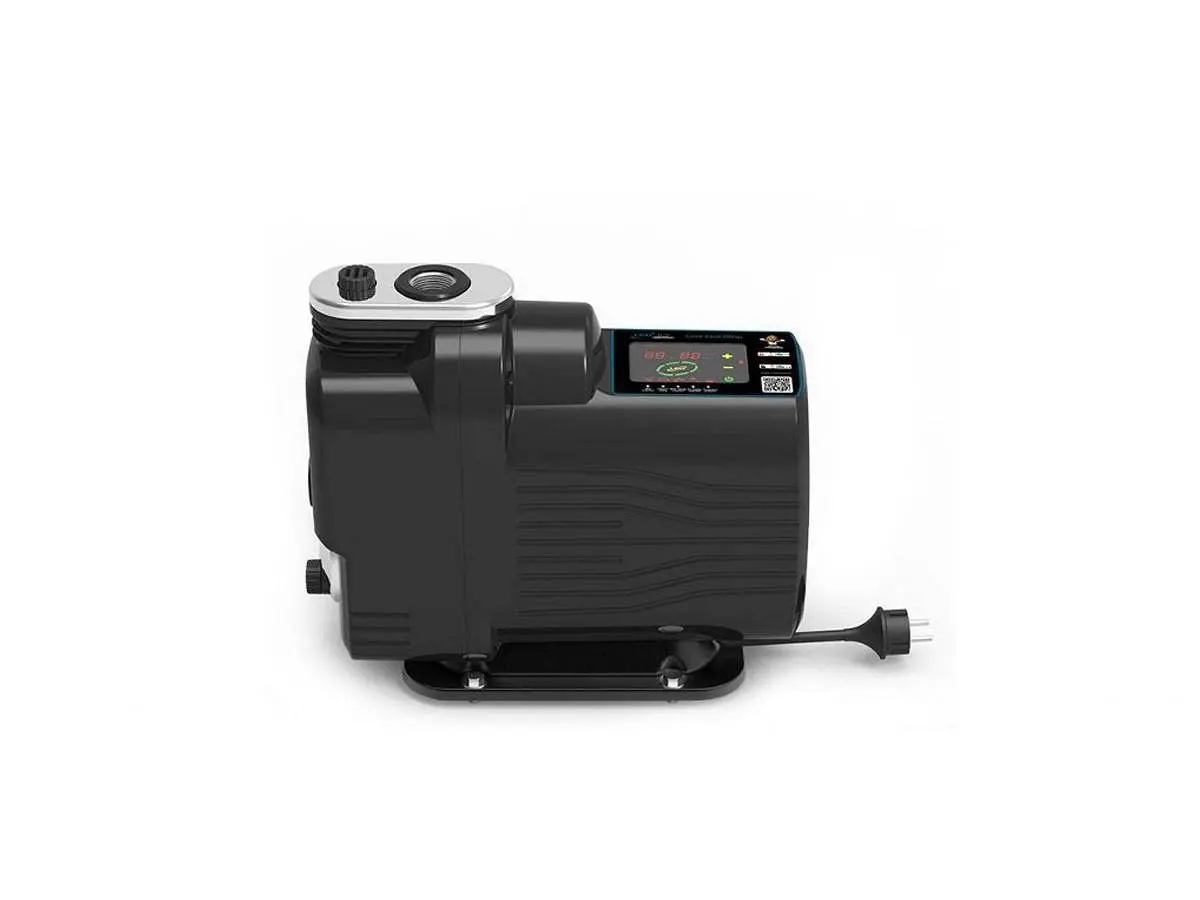

Leo Integrated Inverter MAC550 - Leo

• Leo Pump MAC550, AUTOCLAVE System with Permanent Magnet Motor and Touch Screen Display
• Automatic pressurization system MAC 550 inverter with permanent magnet motor
• Variable speed with permanent magnet motor
• The pump automatically adjusts the motor speed according to the water demand, ensuring “always” a constant pressure.
• Protection functions
• The pump is protected to ensure longer durability, incorporating several protective functions
• Protection against dry running and overheating.
• Protection against system leaks.
• Protection against high and low voltage.
• Energy efficiency and cost savings
• Permanent magnet motor with frequency converter significantly reduces energy consumption.
• The system adjusts the speed based on water demand, maintaining constant pressure and lower bills.
• The quietest on the market
• The water-cooled motor produces very low noise levels, equal to 47 dB during normal use.
• Easy to use, unique with touch control display
• Operating pressure and error codes displayed on the touch control.
• Every parameter is programmable from the panel.
• Easy installation
• Compact, integrated, high-efficiency solution.
• All included:
• Non-return valve
• Touch control display
• Pressure sensor
• Expansion vessel

TECHNICAL DATA

Power supply:

230 V
Rated power: 0.55 Kw - 0.7 Hp
Max motor speed: 5200 RPM
Max. liquid temperature: 50 °C
Max ambient temperature: 40 °C
Protection class: IPX4
Dimensions: 39 x 16 x 32
Weight: 11 Kg
