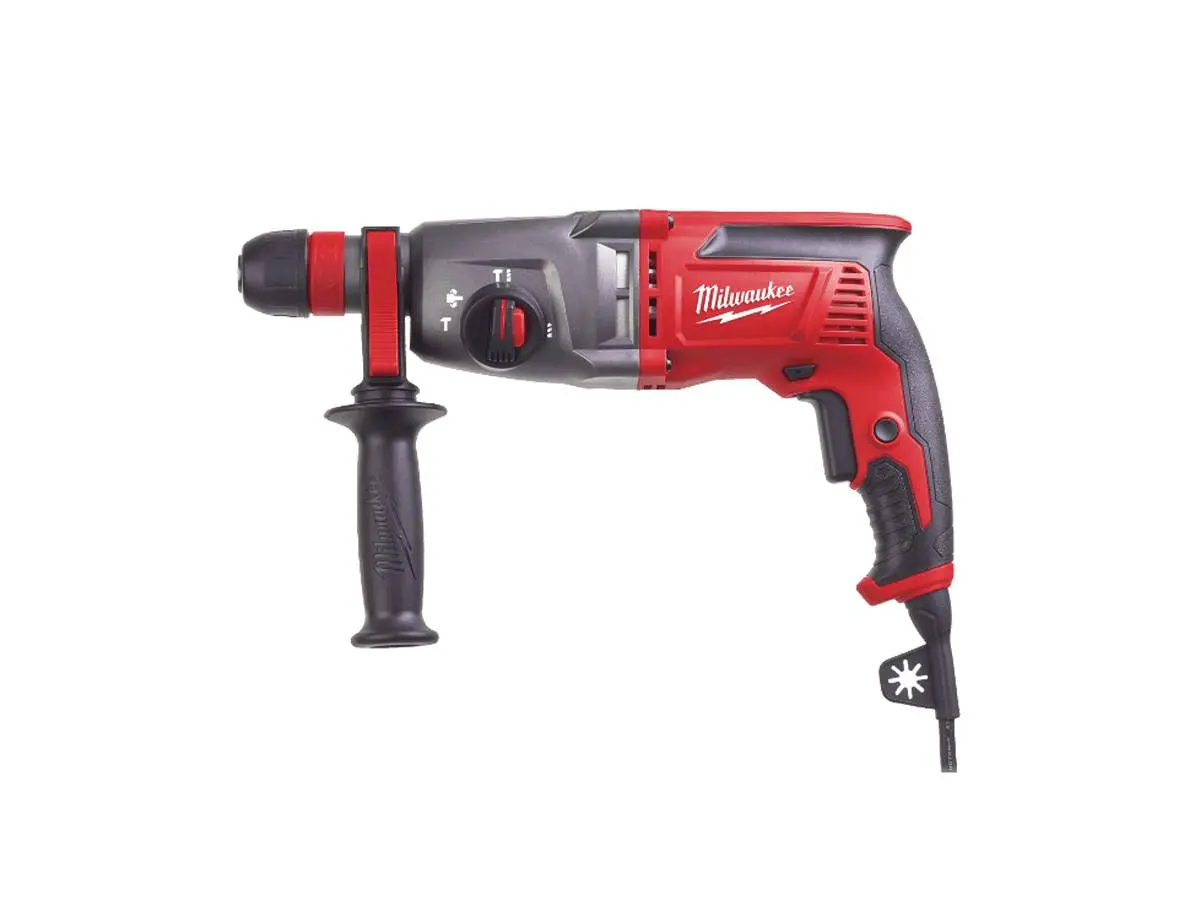

Milwaukee 3-Mode SDS-PLUS Rotary Hammer PH 26 TX - Milwaukee

• Powerful, durable, and compact rotary hammer for masonry and concrete drilling applications
• Maximum impact energy of 2.4 J with high-end impacts per minute
• Powerful 800 W motor even for the toughest applications
• Optimized for holes from 6 to 16 mm
• Safety clutch to protect the operator in case of bit jamming
• The X version comes with a FIXTEC chuck for cylindrical shank bits
• Supplied with a 4-meter cable
• Connection: SDS Plus
• Max wood drilling capacity: 30 mm
• Max metal drilling capacity: 30 mm
• Impact energy: 2.4 EPTA J
• Max concrete drilling diameter: 26 mm
• Equipment: 13 mm metal chuck, carrying case

TECHNICAL DATA

Connection

: SDS Plus
Max wood drilling capacity: 30 mm
Max metal drilling capacity: 30 mm
Impact energy: 2.4 EPTA J
Max concrete drilling diameter: 26 mm
Impacts per minute at full load: 0 - 4500
Power: 800 W
Speed under load: 0 - 1500
Weight: 2.6 Kg
Uncertainty of sound power level: 3 DB(A)
Uncertainty of sound pressure level: 3 DB(A)
Sound power level: 100.5 LWA DB(A)
Sound pressure level: 89.5 LWA DB(A)
Uncertainty of drilling vibrations: 1.5 m/s²
Uncertainty of concrete drilling vibrations: 1.5 m/s²
Uncertainty of chiseling vibrations: 1.5 m/s²
Concrete drilling vibrations: 13.6 m/s²
Drilling vibrations: 13.6 m/s²
Chiseling vibrations: 11.9 m/s²
