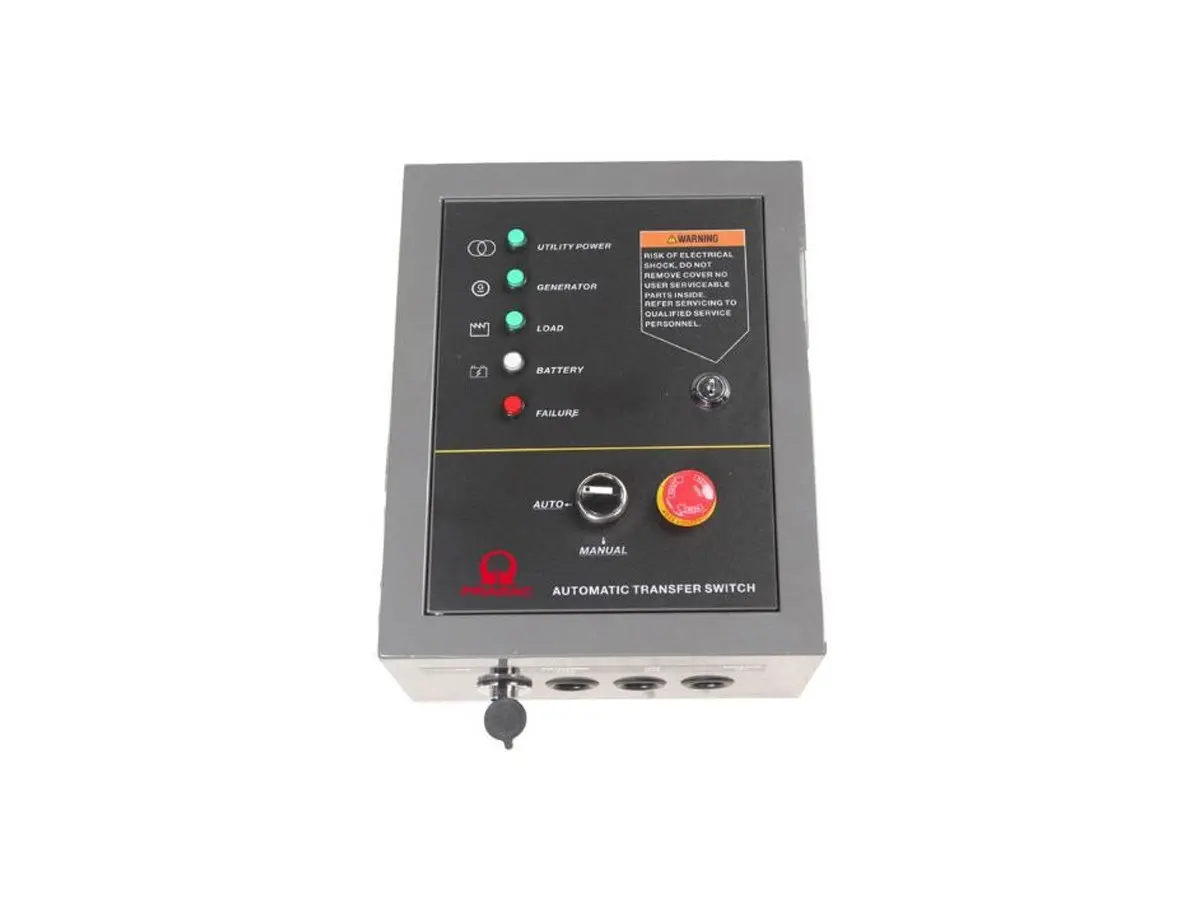

Pramac Automatic Transfer Switch (ATS) Panel for WX Models - Pramac

Thanks to the transfer switch panel, the WX generator automatically activates in case of a power outage, continuing to support all the loads in the house.
Thanks to the connector, it is possible to easily disconnect the generator if it needs to be moved for other activities.

STATUS INDICATOR

LED Utility Power: Mains power present
LED Generator: the generator is running
LED Load: the load is powered (from mains or generator)
LED Battery: Battery charged
LED Failure: fault, the generator did not start

PANEL DIMENSIONS

Width: 410 mm
Height: 310 mm
Depth: 180 mm
Weight: 7 Kg
FEATURES

Control panel
Contactors with interlock
Selector: AUTO / MANUAL (In "manual" mode the panel does not control the generator, which can be disconnected or turned on without interfering with the panel or the connected loads.)
Emergency button
Battery charger 7
Cable with 5-meter connector
