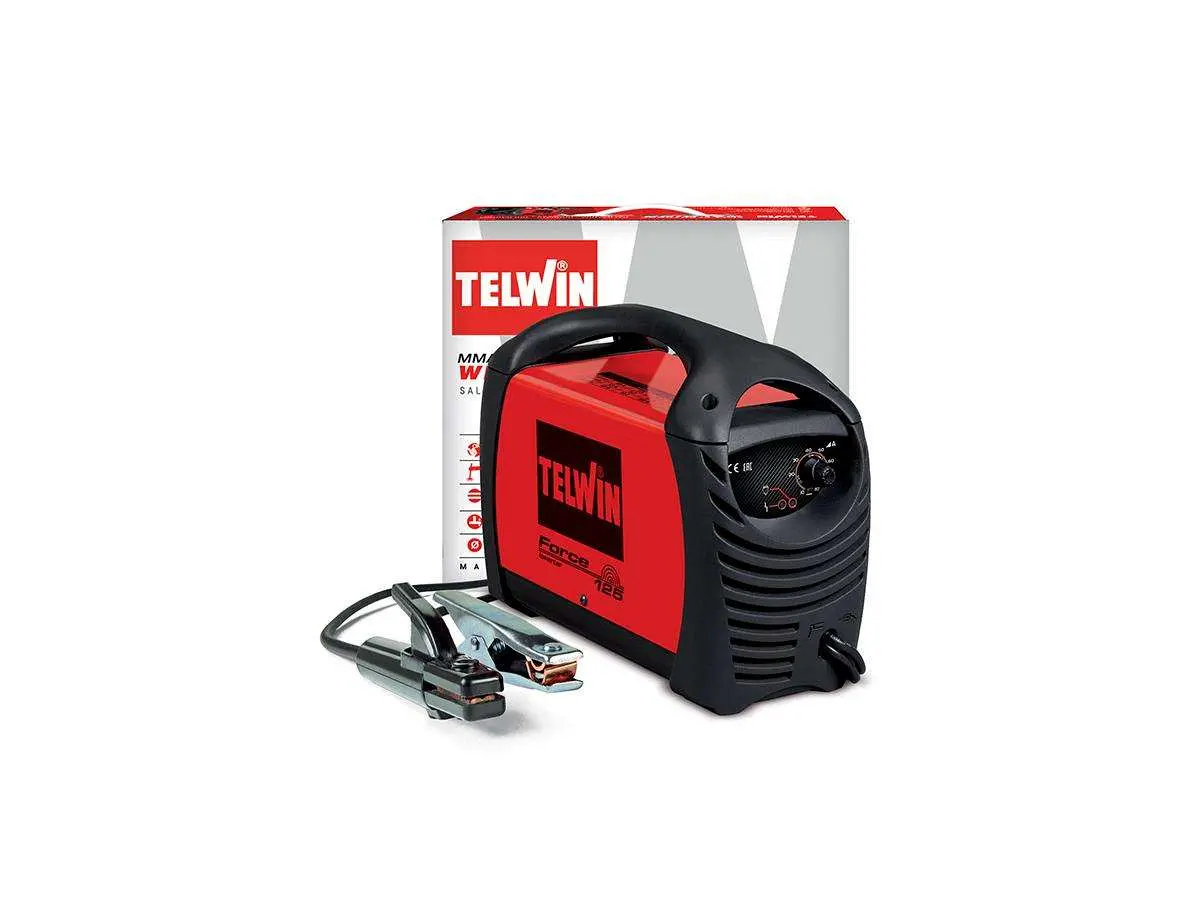

Telwin FORCE Inverter 125 Welder - Telwin
Code: CUS-38867
€ 159,90
Available for pre-order
Fast delivery with value insured
Secure payments
Other information
DC MMA Electrode Inverter Welder.
Versatile use with a wide variety of electrodes: rutile, basic, stainless steel, cast iron, etc.
Complete with MMA welding accessories and cardboard carrying case
Technical data
Included accessories
Versatile use with a wide variety of electrodes: rutile, basic, stainless steel, cast iron, etc.
- Compact and lightweight
- High stability of welding current despite power supply voltage fluctuations
- Arc force, hot start, anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, generator (+/- 15%) protections
Complete with MMA welding accessories and cardboard carrying case
Technical data
- Single-phase mains voltage: 230 V
- Mains frequency: 50 / 60 Hz
- Efficiency: 82 %
- Current adjustment range: 10 - 80 A
- Power factor (cos phi): 0.6%
- Duty cycle (at 20°C): 50% @ 80 A
- Electrode diameter usable in DC: 1.6 - 2.5 mm
- Max DC current (EN 60974-1): 80 @ 5 % A
- Protection rating: IP 21
- DC current: 140 A
- Dimensions: 32 x 37 x 14.5 cm
- Max open circuit voltage: 72 V
- Weight: 3.08 kg
- Maximum absorbed current: 15 A
- Maximum absorbed power: 2.3 kW
- Minimum generator power: 3 kW
Included accessories
- Hammer/brush
- 6 mm² 1.8 m cable with ground clamp and ring terminal
- Dallas 300 300 A electrode holder clamp
- 6 mm² 1.8 m cable with ring terminal
