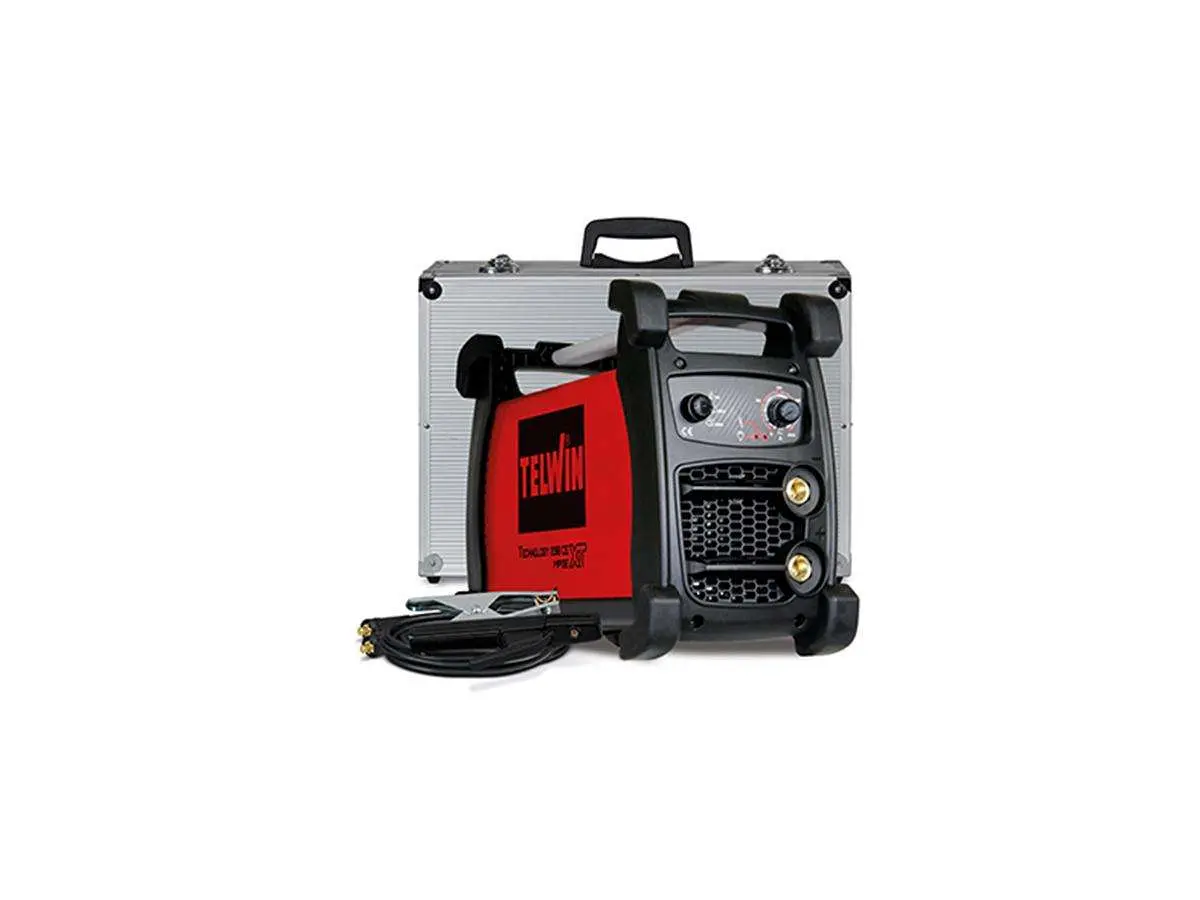

Telwin TECHNOLOGY 238 XT CE/MPGE Welder - Telwin

DC MMA and TIG Electrode Inverter Welder with Scratch Start

Versatile use with a wide range of electrode types: rutile, basic, stainless steel, cast iron, cellulose, etc...

Recommended for generator sets, this model ensures high performance with unstable power supplies thanks to multiple MPGE protections: waveform control device, input surge filter, oscillation stabilization

• Robust and impact resistant
• Compact size and lightweight
• 50 Ø Dinse connector
• High stability of welding current despite power supply voltage variations
• Arc force and hot start adjustment depending on the type of electrode used
• Anti-stick device
• Thermostatic, overvoltage, undervoltage, and overcurrent protections

Complete with MMA welding accessories and aluminum carrying case



Technical data

• Single-phase mains voltage: 230 V
• Mains frequency: 50 / 60 Hz
• Efficiency: 87 %
• Current regulation range: 5 - 200 A
• Power factor (cos phi): 0.7%
• % Use (at 20°C): 65% @ 180 A
• Electrode diameter usable in DC: 1.6 - 4 mm
• Max DC current (EN 60974-1): 200 @ 35 % A
• Protection rating: IP 23
• DC current: 140 A
• Dimensions: 37.5 x 50 x 22 cm
• Max open circuit voltage: 80 V
• Weight: 10.55 kg
• Max absorbed current: 39 A
• Absorbed current at 60% - max: 20 A
• Max absorbed power: 6.3 kW
• Absorbed power at 60%: 3 kW
• Minimum generator power: 10 kW

Included accessories

• Cable
• Toledo 300 ground clamp
• Cable TW05V-A 1x025 l=02.00 m DINSE
• Dallas 300 electrode holder 300 A
