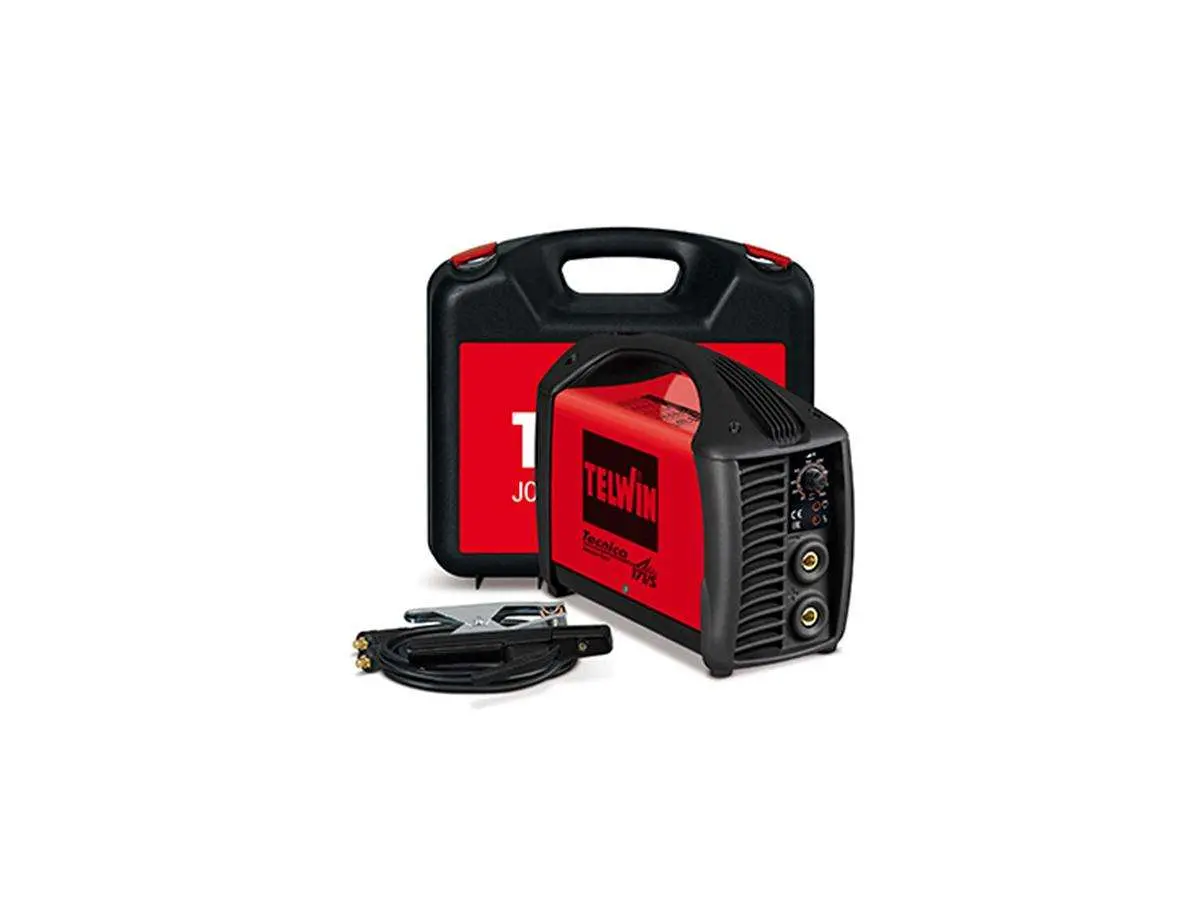

DC MMA and TIG Electrode Inverter Welder with Scratch Start
Versatile use with a wide range of electrode types: rutile, basic, stainless steel, cast iron, etc.
Complete with MMA welding accessories and plastic carrying case
Technical data
Included accessories:
Versatile use with a wide range of electrode types: rutile, basic, stainless steel, cast iron, etc.
- Compact and lightweight
- High stability of welding current despite power supply voltage fluctuations
- Arc force, hot start, anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, generator (+/- 15%) protections
Complete with MMA welding accessories and plastic carrying case
Technical data
- Single-phase mains voltage: 230 V
- Mains fuse: 16 A
- Mains frequency: 50 / 60 Hz
- Efficiency: 88 %
- Current adjustment range: 15 - 180 A
- Power factor (cos phi): 0.7%
- Duty cycle (at 20°C): 65% @ 180 A
- Electrode diameter usable in DC: 1.6 - 4 mm
- Max DC current (EN 60974-1): 170 @ 18 % A
- Protection rating: IP 23
- DC current: 105 A
- Dimensions: 38 x 48 x 17 cm
- Max open circuit voltage: 75 V
- Weight: 6.7 kg
- Max absorbed current: 34 A
- Absorbed current at 60% - max 19 A
- Max absorbed power: 5.3 kW
- Absorbed power at 60%: 2.9 kW
- Minimum generator power: 7 kW
Included accessories:
- Cable TW05V-A 1x025 l =1.80 m DINSE
- Toledo 250 250 A ground clamp
- Plastic carrying case
- Dallas 300 300 A electrode holder clamp
