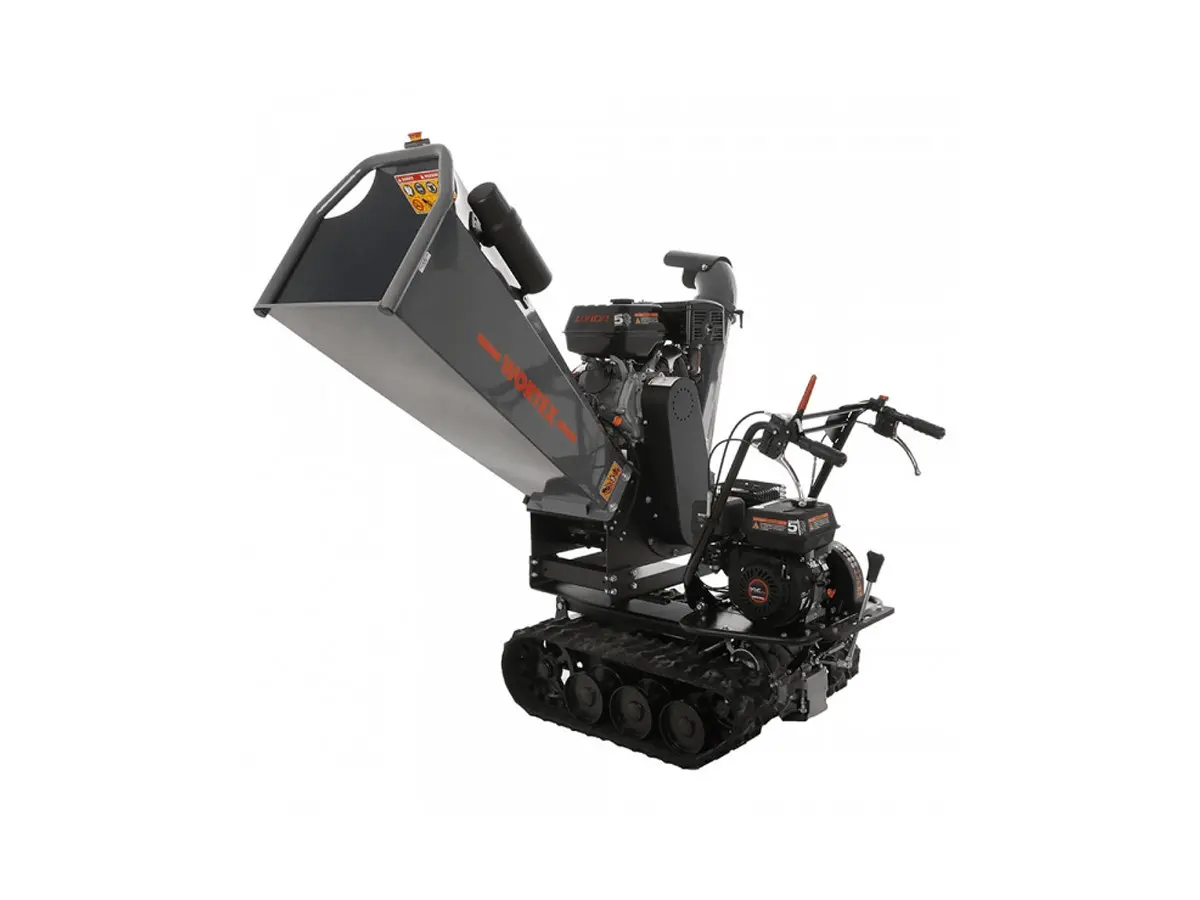

Wortex Tracked Shredder TIGER D420 - Wortex

• WORTEX TIGER D420/120L-E TRACKED CHIPPER equipped with LONCIN D420-E 14 Hp electric start engine
• Easily maneuverable thanks to the tracked unit it is equipped with, this chipper is ideal for moving smoothly even on uneven, rough, and narrow surfaces, for autonomous and simplified loading and unloading from vans and flatbeds
• Suitable for the maintenance of parks, gardens, green areas, it can support intense professional workloads by continuously grinding wood up to a max diameter of 120 mm, ideal for chipping branches, brushwood, and logs
• Grinding system with solid and reinforced roller featuring a double 300mm blade and anvil
• Max grinding diameter 120 mm Belt transmission
• Base mounted on a rotating turntable with 3 positions, allowing the wood chip ejection to be directed as desired without having to rotate the motor wheelbarrow and without constraints for forward movement
• Equipped with an emergency switch to ensure immediate stop if necessary
• Possibility to split the machine and use the tracked unit as a tracked motor wheelbarrow; the flatbed and wheelbarrow sides are optional and can be added separately
• Similarly, the chipper can be used independently, fixed on a support base
• Box and sides for motor wheelbarrow: Optional
•
  Wheel and drawbar kit for chipper: Optional

TECHNICAL DATA

CHIPPER
Engine:

Loncin G420-E
Engine type: 4-stroke
Displacement: 420 cc
Rated power: 15 HP
Fuel: Gasoline
Start type: recoil
Transmission type: belt
Max cutting diameter: 90 mm
Cutting rotor type: heavy roller
Number of blades: 2
Blade movement: rotating
Track width: 180 mm
Support length: 940 mm
Weight: 360 Kg

MOTOR WHEELBARROW

Engine:  LONCIN G 200
Start: recoil
Displacement: 196 cc
Fuel type: Gasoline
Transmission: 3 forward gears + reverse
Max load: 300 kg
Tipping: manual
