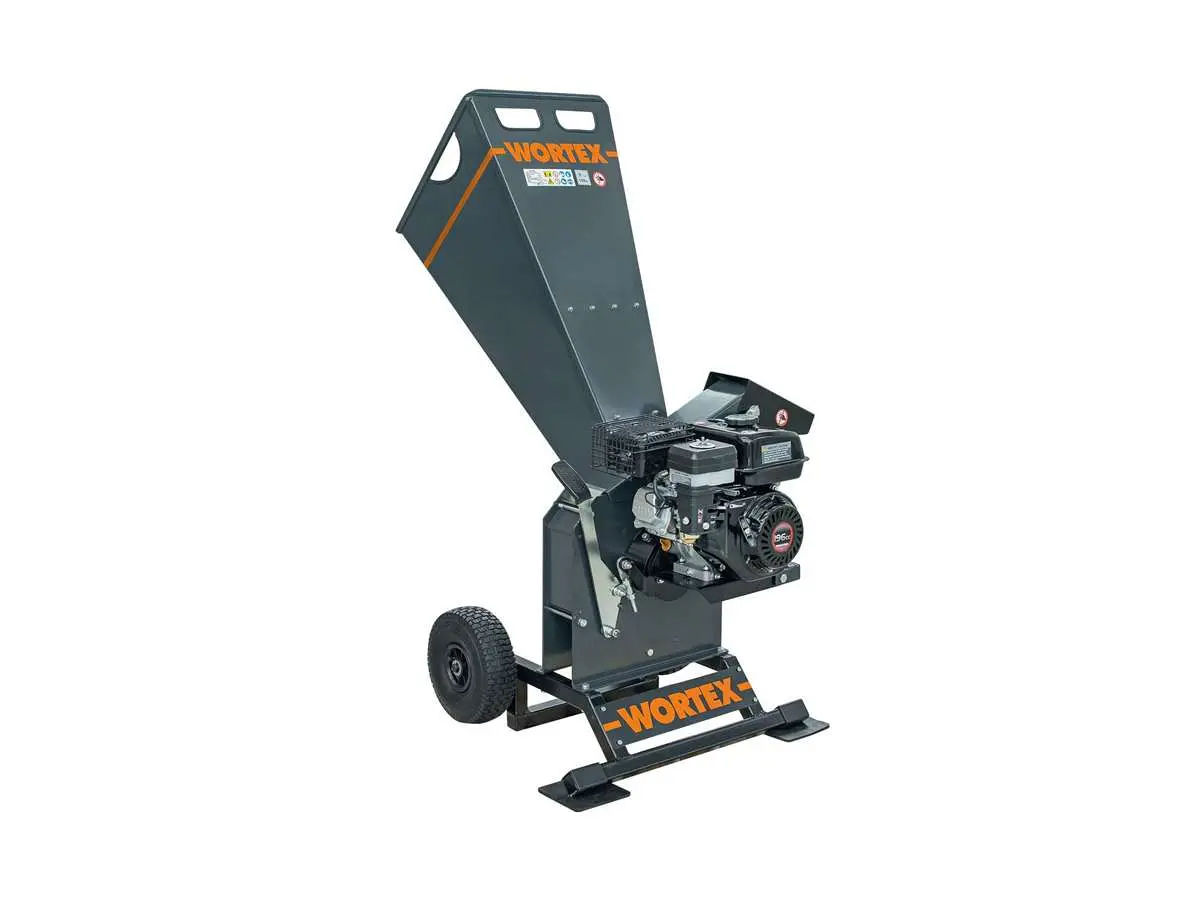

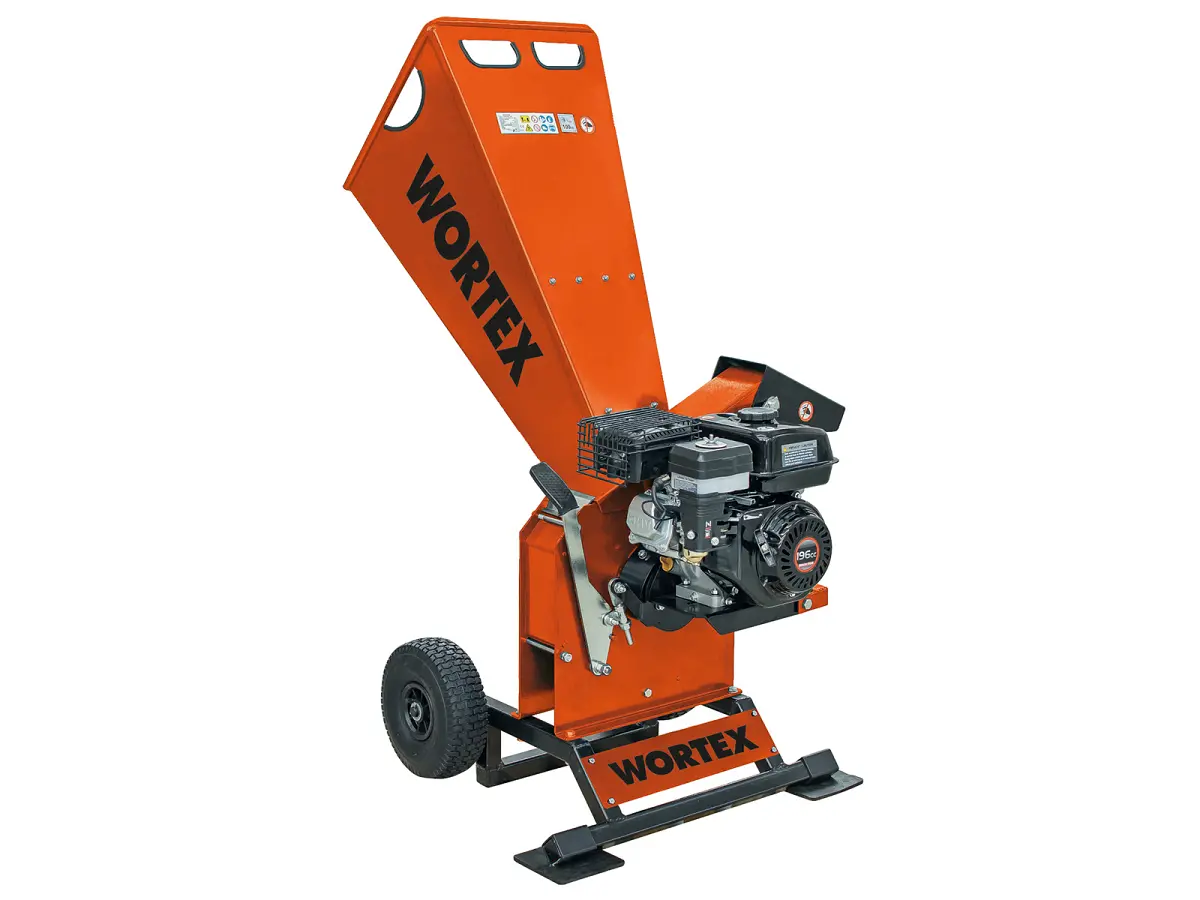

Wortex THOR T200/70 Wood Chipper - Wortex

• The THOR T200/70L shredder is equipped with a LONCIN engine
• The THOR T200/70H shredder is equipped with a HONDA engine
• Equipped with a grinding system consisting of 2 shredding blades and an anvil
• A first reduction of the introduced material is performed by 2 rectangular knives for the initial shredding, then 8 movable triangular hammers carry out the final shredding
• The belt transmission system protects the machine
• Comes standard with pneumatic wheels to facilitate transport
• Displacement: 196 cc
• Power: 6.5 Hp
• Weight: 90 kg

TECHNICAL DATA

Engine: Loncin 200
Starting: Manual
Displacement: 196 cc
Power: 6.5 Hp
Max branch diameter: 70 mm
Disc size: 400×10 mm
Disc speed: 2600 r.p.m
No. of hammers: 8
No. of knives: 2
Weight: 90 Kg

Engine: Honda GX 200
Starting: manual
Displacement: 196 cc
Fuel type: gasoline
Tank capacity: 4 lt
Cutting system: 8 hammers + 2 knives
Max cutting diameter: 70 mm
Weight: 90 Kg
