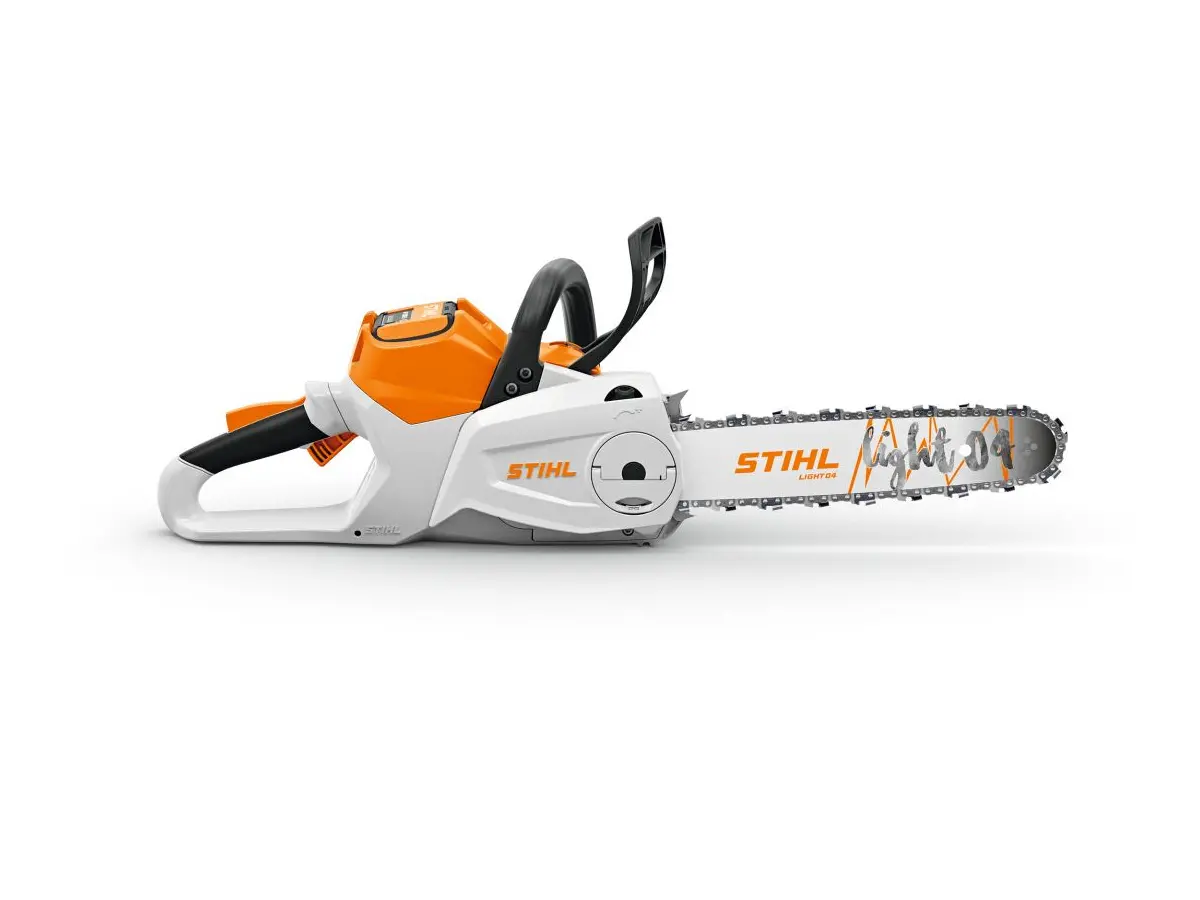

Stihl MSA 220 C-B Battery Chainsaw

Compatible with AP series batteries

• The most powerful battery chainsaw from STIHL
• Fast acceleration thanks to the high-quality EC motor
• Usable in rain and humidity
• Durable, reliable, and long-lasting
• Tool-free chain tensioning
• Maximum performance when felling small trees
• Bar length: 35/40 cm
• Weight: 3.1 kg
• Rated voltage: 36 V
• Recommended battery for optimal performance: AP 300 S

• Number of cuts (wood 10x10 cm) with AP 300 S battery: 37 cuts
• Operating time with AP 300 S battery: 300 minutes

Sold without battery and charger

35 cm bar and chain included
LIGHT04 bar 3/8″ P 1.3 mm 50 links
PM3 chain 3/8″ P 1.3 mm 50 links

40 cm bar and chain included
LIGHT04 bar 3/8″ P 1.3 mm 55 links
PM3 3/8" Chain P 1.3 mm 55 links

TECHNICAL DATA

CHAINSAW
Nominal voltage: 36 V
Max voltage: 40 V
Power consumption: 2.10 kW
Power: 1.70 kW
Weight of device without battery: 3.1 kg
Bar length: 35 / 40 cm
Groove width: 1.10 mm
Chain pitch: 3/8"P
Protection rating: IP IPX4

BATTERY
Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with battery AP 30: up to 36 minutes
For cutting squared wood (10x10 cm) with battery AP 30: up to 290 cuts
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 32 minutes
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 150 cuts
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 37 minutes
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 300 cuts
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 44 minutes
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 350 cuts

EQUIPMENT

Tool-free tank cap
Special oil tank cap designed for easy opening and closing without difficulty

Quick chain tensioner (B)
Easy chain tensioning

QuickStop Super chain brake (Q)
Exclusive STIHL braking system ensuring enhanced safety. The chain stops instantly, not only in case of a strong kickback or activation of the front hand guard, but also when releasing the rear handle

EC Electric Motor
The electronically controlled EC electric motor operates brushless, has minimal mechanical wear, and impresses with a significantly higher efficiency compared to traditional electric motors. This way, the battery energy translates into maximum performance

Two-hand control
The STIHL chainsaw features an ergonomic tubular handle and a comfortable rear control handle made with soft components. Thanks to the two-hand control, it is possible to work comfortably, effortlessly, and safely in all positions.

Stable spike
The sturdy metal spike provides support for guiding the chainsaw on the wood, allowing precise and safe cuts
