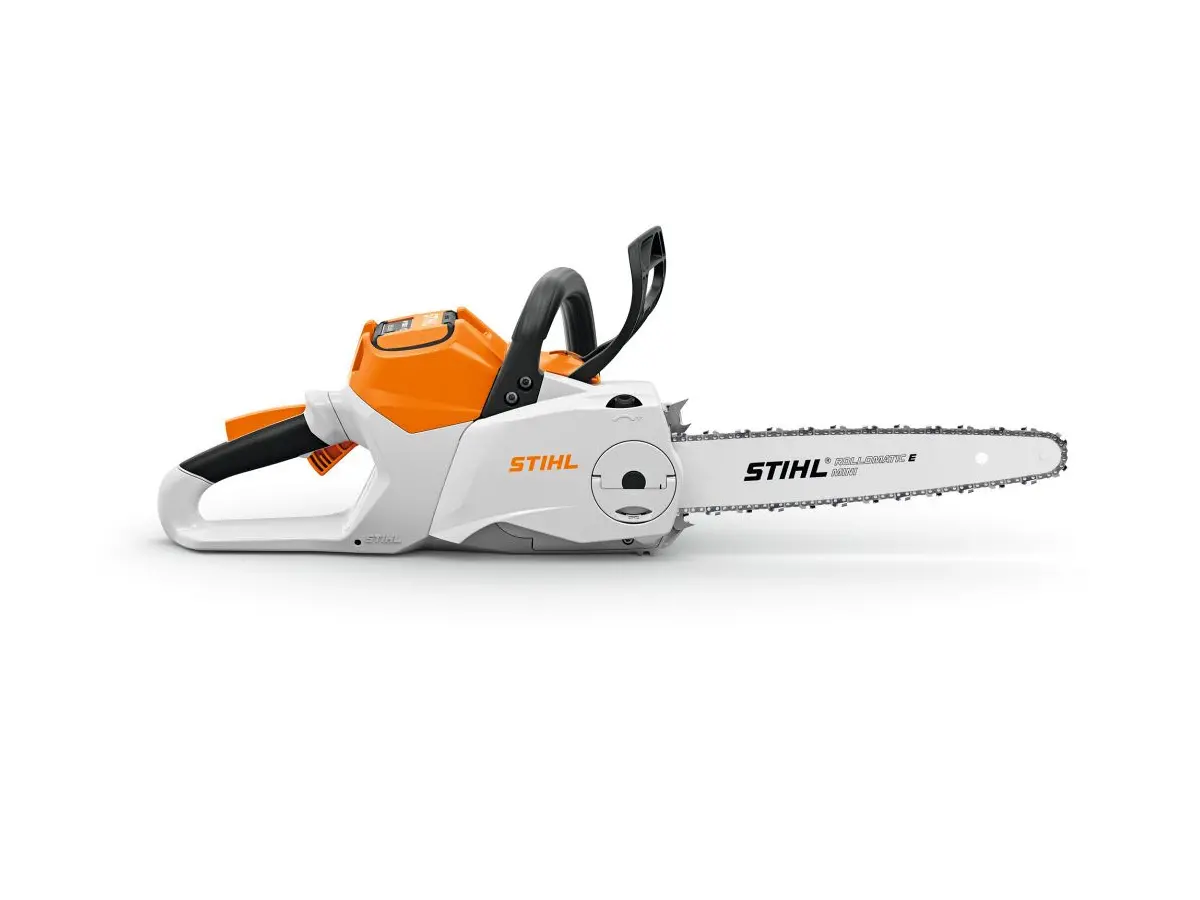

Stihl MSA 200 C-B Battery Chainsaw - Stihl

Compatible with AP series batteries

• Battery-powered chainsaw with high cutting performance for use in noise-sensitive areas
• 44% higher cutting performance compared to the MSA 160 C-BQ model
• STIHL quick chain tensioner
• QuickStop Super chain brake
• Tool-free fuel cap
• 1/4" PM3 chain for fine cutting and high cutting performance
• Metal claws
• Bar length: 35 cm
• Weight: 3.3 kg
• Rated voltage: 36 V
• Recommended battery for optimal performance: AP 300 S

• Number of cuts (wood 10x10 cm) with battery AP 300 S: up to 270 cuts
• Operating time with AP 300 S battery: up to 50 minutes

Sold without battery and charger

35 cm bar and 1/4" P chain included
ROLLOMATIC E MINI 1/4" P 1.1 mm 72 links bar
PM3 Chain 1/4" P 1.1 mm 72 Links

TECHNICAL DATA

CHAINSAW
Rated voltage: 36 V
STIHL Oilomatic chain type: Picco Micro 3
Pitch: 1/4" P
Weight: 3.3 kg (without battery, guide bar, and chain)
Sound pressure level: 84 dB(A)
Sound power level: 95 dB(A)
Vibration value left/right: 3.9 m/s²
Chain pitch: 1/4" P


BATTERY
Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with battery AP 30: up to 48 minutes
For cutting squared wood (10x10 cm) with battery AP 30: up to 260 cuts
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 42 minutes
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 160 cuts
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 50 minutes
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 270 cuts
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 60 minutes
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 320 cuts

EQUIPMENT

Tool-free fuel cap
Special oil tank cap designed for easy opening and closing without tools

Quick chain tensioner (B)
Easy chain tensioning

QuickStop Super chain brake (Q)
Exclusive STIHL braking system to ensure greater safety. The chain stops instantly, not only in case of a strong kickback or activation of the front hand guard, but also when releasing the rear handle

EC Electric Motor
The electronically controlled EC electric motor operates brushless, experiences minimal mechanical wear, and impresses with a significantly higher efficiency compared to traditional electric motors.
