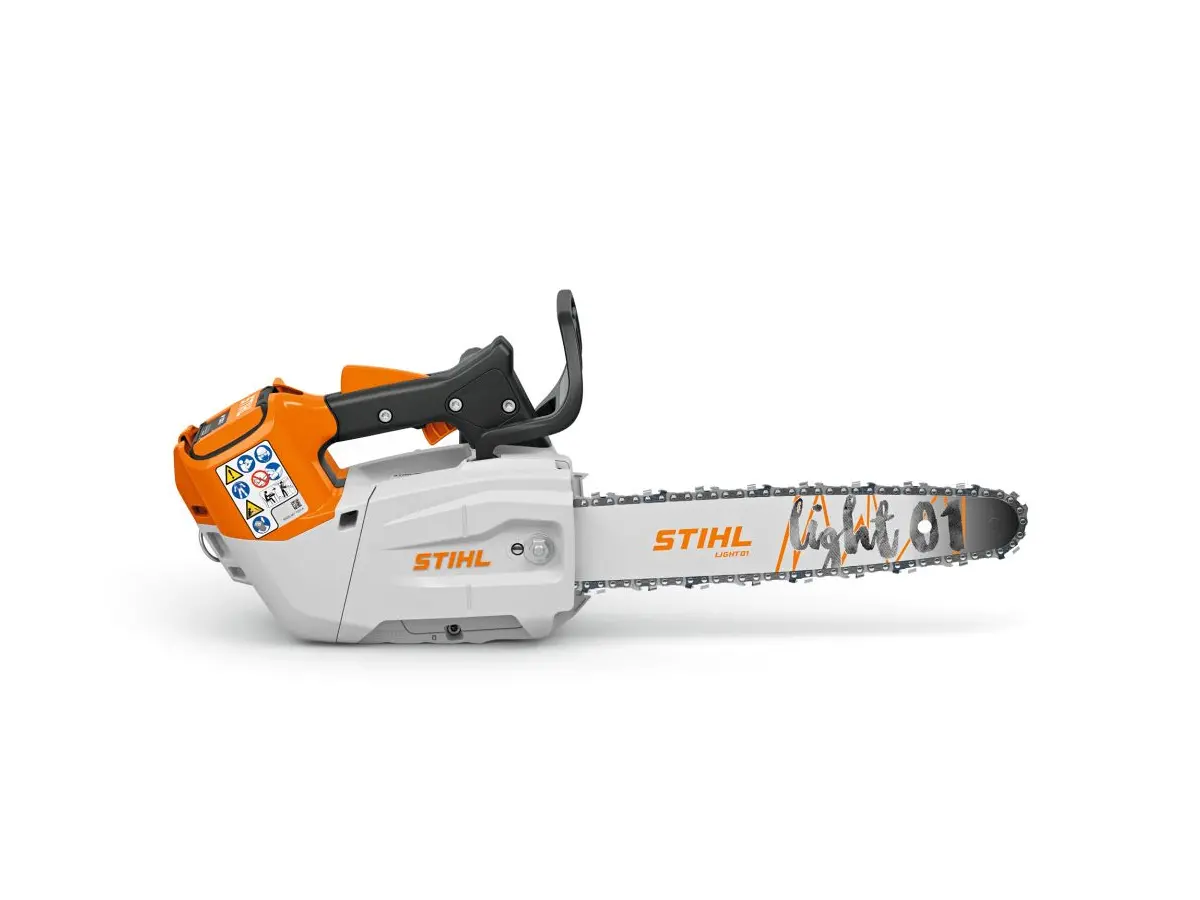

Stihl MSA 190 T Battery Chainsaw

Compatible with AP series batteries

• The STIHL MSA 190 T battery-powered chainsaw is a powerful professional tree care chainsaw. It is suitable for crown care and for removing dead wood or shoots from trunks and canes
• With the STIHL MSA 190 T, tree care professionals can perform their work ergonomically and efficiently, even in noise-sensitive areas
• Thanks to the high chain speed and strong acceleration, it is possible to make fine and extremely precise cuts
• The battery-powered chainsaw reaches a chain speed of up to 20 m/s
• The claw stop secures the saw to the wood, making precise cuts particularly easy. Additionally, a metal stop can be easily added
• The mechanical operating system with side lock button and ergo lever allows comfortable operation
• Another advantage of this tree care saw: it can also be used in noise-sensitive areas, such as residential zones, around care facilities, schools, or hospitals
• The device is prepared for the attachment of a comfort loop. This improves handling and freedom of movement
• The STIHL MSA 190 T battery-powered chainsaw is designed for use with the Smart Connector
• It then transmits device data via Bluetooth® so that important information about the device status can be accessed via smartphone or tablet
• All battery tools in the STIHL AP system are designed for professional use and daily operation, even in adverse weather conditions. Therefore, they have tested splash water protection. Effectiveness is demonstrated by demanding internal tests. The splash water test is based, among other things, on the IPX4 standard
• Recommended battery: AP 300 S

• Number of cuts (wood 10x10 cm) with AP 300 S battery: 225 cuts
• Operating time with AP 300 S battery: 75 minutes

TECHNICAL DATA

Rated voltage: 36 V
Power consumption: 1500 W
Performance: 1.2 kW
Battery system: AP
Recommended battery: AP 200 S
Weight: 2.6 kg
System weight: 2.97/3.03 kg
Guide bar length: 30-35 cm
Chainsaw chain pitch: 1/4" - 3/8"
Length with claw stop: 306 mm
Sound pressure level: 91 dB(A)
Sound power level: 99 dB(A)
Vibration value left/right: 3.8/3.9 m/s²

BATTERY

Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with AP 20 battery: up to 37 minutes
For cutting squared wood (10x10 cm) with AP 20 battery: up to 130 cuts
For cutting squared wood (10x10 cm) with AP 30 battery: up to 72 minutes
For cutting squared wood (10x10 cm) with AP 30: up to 245 cuts
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 48 minutes
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 170 cuts
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 75 minutes
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 225 cuts
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 90 minutes
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 306 cuts

EQUIPMENT

SIDE CHAIN TENSIONING
For easy and secure tightening. The side chain tensioning allows safe, simple, and quick retensioning and replacement of the chain. The tensioning screw is operated laterally through the sprocket cover



CONTROL LEVER WITH POTENTIOMETER FUNCTION
For greater maneuverability. Using the control lever with potentiometer function, it is possible to continuously adjust the speed of the battery chainsaw, thus easily controlling and adapting its performance. In chainsaws for domestic use, the potentiometer function is integrated into the throttle lever


FOLDABLE HANGING HOLE
Safe handling. Thanks to the folding hook, it is possible to lift the device to the top of the tree or lower it from there, attached to a carrying rope. You can also use it to protect the device. Once folded, the hook does not obstruct work or storage.



OIL/FUEL TANK CAP
Quick and easy to use. Thanks to the bayonet closure, you can open and close the tank cap in just a few simple steps without the need for tools.

TRANSPARENT OIL TANK
Makes it easy to check the fill level. Thanks to the transparent oil tank, you can quickly and easily check the chain oil level. This way, you will always know when it’s necessary to refill the chain oil to keep working efficiently.

POWER BOOST
Maximum performance increase. Thanks to intelligent electronics, STIHL devices and batteries communicate with each other. If both the device and the battery feature the POWER BOOST function, the battery always delivers the maximum possible power for the respective application. To ensure optimal battery life, the device temporarily adjusts performance if used too intensively.

IPX4 CERTIFICATION
Protection against splashes. IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is carried out in several stages. IPX4 tests protection against water splashes from all sides. Battery-powered devices with this certification are designed for everyday use, even in the rain.
