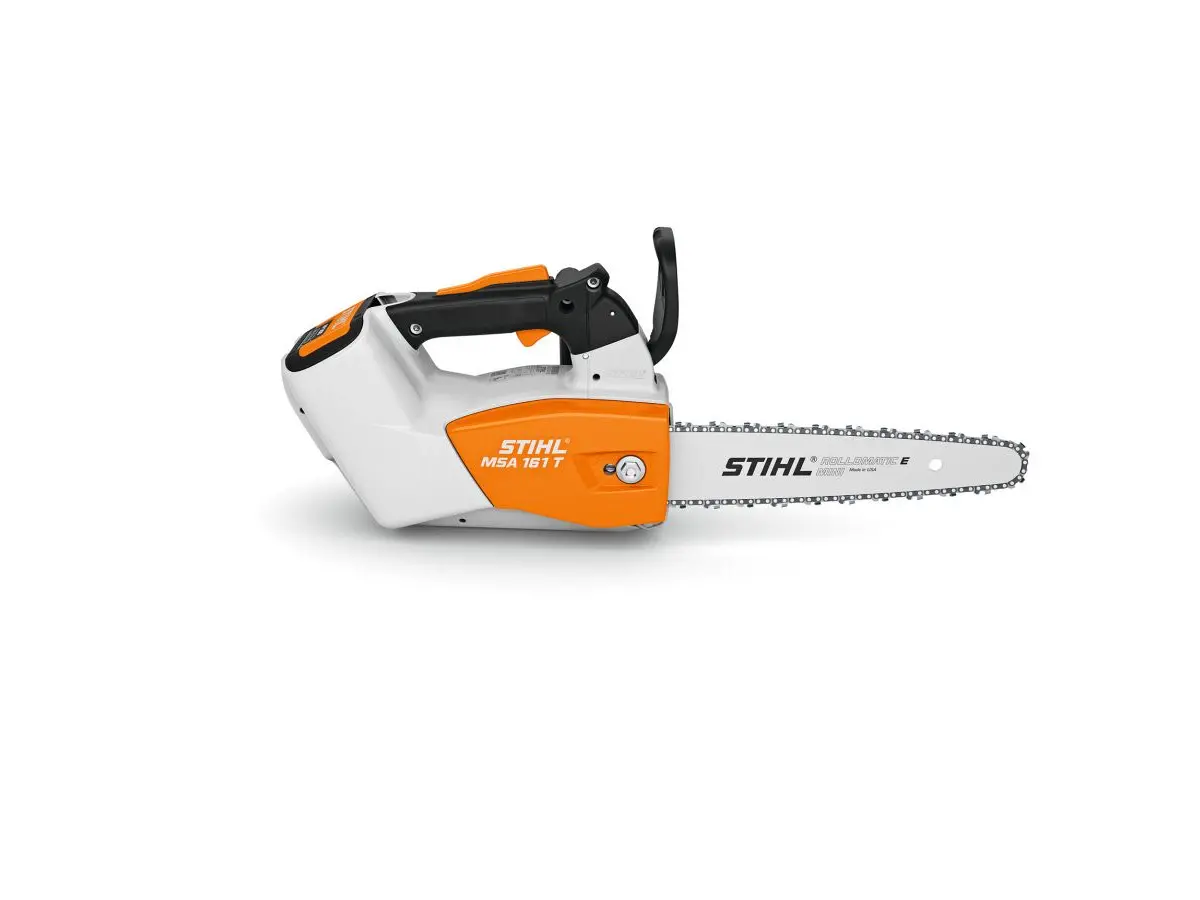

Stihl MSA 161 T Battery Chainsaw

Compatible with AP series batteries

• Among tree care professionals, this lightweight top-handle chainsaw is highly appreciated for its weight of only 2.5 kg (without battery) and its motor power
• Thanks to the high chain speed of 16 m/s and strong acceleration, it is possible to perform fine and very precise cuts
• Another advantage of this model is that it can also be used in noise-sensitive areas such as residential zones, schools, or hospitals
• Applications: tree care with tree-climbing technique, removal of dead wood, removal of wood infected by diseases and/or pests, topping of trees
• The STIHL QuickStop Super braking system ensures additional safety: the chain stops within seconds not only in case of kickback but also when releasing the rear handle
• Bar length: 25/30 cm
• Weight: 2.5 kg
• Rated voltage: 36 V
• Recommended battery for optimal performance: AP 200 S
• Number of cuts (wood 10x10 cm) with AP 200 S battery: 200 cuts
• Operating time with AP 200 S battery: 42 minutes

Sold without battery and charger

25 cm bar and chain included
ROLLOMATIC E MINI 1/4" P 1.1 mm 56 links bar
Chain for MSA 161 T 1/4" P 1.1 mm 57 links

30 cm bar and chain included
ROLLOMATIC E MINI Bar 30 cm 1/4″ P 1.1 mm 64 links
Chain for MSA 161 T 1/4″ P 1.1 mm 65 links

TECHNICAL DATA

CHAINSAW
Rated voltage: 36 V
Pitch: 1/4" P
Weight: 2.5 kg (without battery, bar, and chain)
Sound pressure level: 84 dB(A)
Sound power level: 94 dB(A)
Vibration value left/right: 2.1/2.2 m/s²
Chain pitch: 1/4" P

BATTERY
Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with battery AP 20: up to 32 minutes
For cutting squared wood (10x10 cm) with battery AP 20: up to 155 minutes
For cutting squared wood (10x10 cm) with battery AP 30: up to 60 minutes
For cutting squared wood (10x10 cm) with battery AP 30: up to 290 cuts
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 42 minutes
For cutting squared wood (10x10 cm) with battery AP 200 S: up to 200 cuts
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 62 minutes
For cutting squared wood (10x10 cm) with battery AP 300 S: up to 300 cuts
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 74 minutes
For cutting squared wood (10x10 cm) with battery AP 500 S: up to 360 cuts

EQUIPMENT

Tool-free fuel cap
Special caps for the fuel tank and oil tank allow easy opening and closing without difficulty

Side chain tensioner
The chain is tensioned laterally through the sprocket. This avoids any contact between the operator’s hand and the cutting chain

 QuickStop Super (Q) chain brake
Exclusive STIHL braking system to ensure greater safety. The chain stops instantly, not only in the event of a strong enough rebound or the activation of the front hand guard protection, but also when releasing the rear handle

EC Electric Motor
The electronically controlled EC electric motor operates brushless, experiences minimal mechanical wear, and impresses with a significantly higher efficiency compared to traditional electric motors.

Brake lever with improved locking
Ensures a clear signal when engaging or releasing the chain brake
