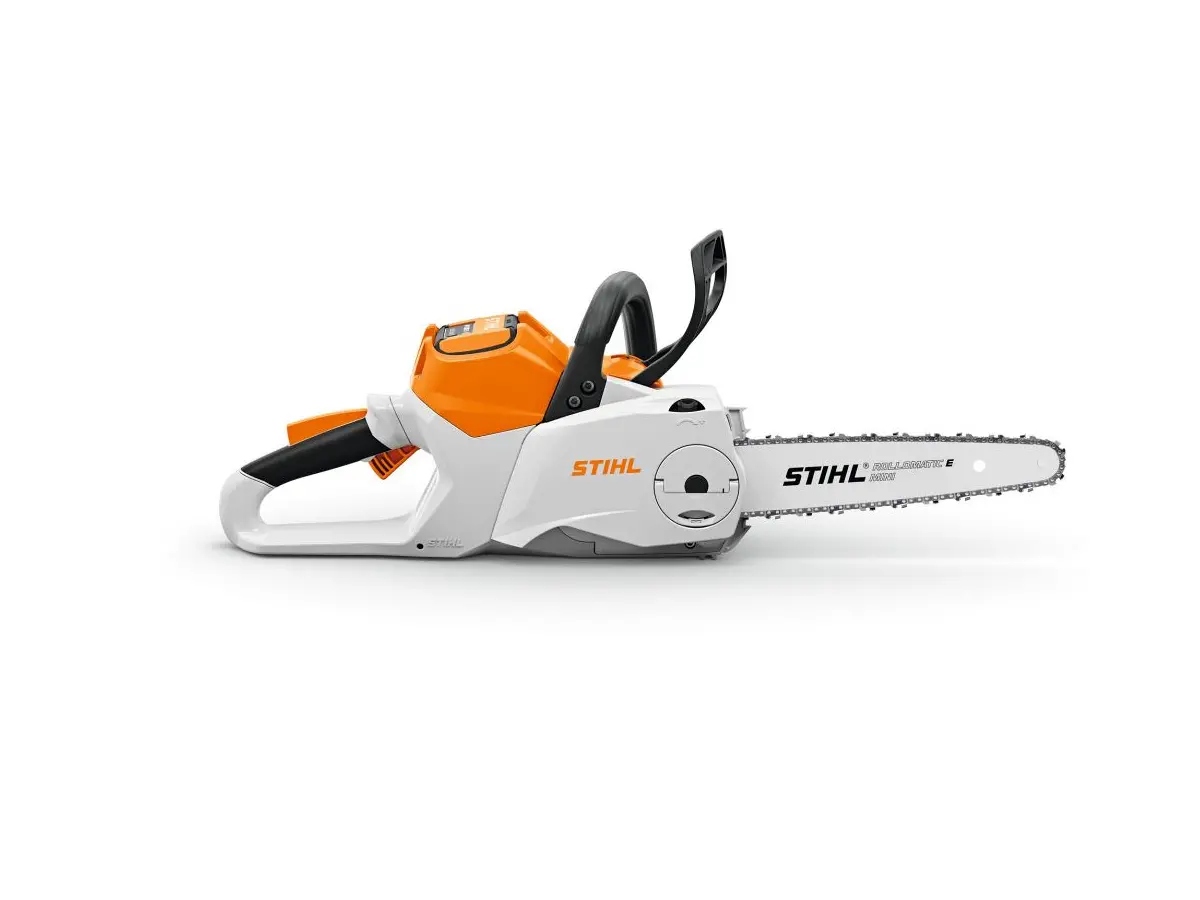

Stihl MSA 160 C-B Battery Chainsaw - Stihl

Compatible with AP and AR series batteries

• Suitable for private use, garden and landscape care, or craftsmanship
• The motor runs quietly and emission-free, allowing you to use this powerful tool even in sensitive areas
• With the STIHL quick chain tensioning system, you can safely and easily tension the chain without tools
• Thanks to the QuickStop Super chain brake system, you have increased safety during work
• 1/4" PM3 chain for fine cutting and high cutting performance
• Bar length: 30 cm
• Weight: 3.1 kg
• Rated voltage: 36 V
• Recommended battery for optimal performance: AP 300 S

• Number of cuts (wood 10x10 cm) with AP 300 S battery: 300 cuts
• Operating time with AP 300 S battery: 60 minutes

Sold without battery and charger

30 cm bar and chain included
ROLLOMATIC E MINI 1/4" P 1.1 mm 64 links bar
PM3 1/4" P 1. 1 mm 64 links

TECHNICAL DATA

CHAINSAW
Rated voltage: 36 V
Max voltage: 40 V
STIHL Oilomatic chain type: Picco Micro 3
Pitch: 1/4" P
Weight: 3.1 kg (without battery)
Sound pressure level: 84 dB(A)
Sound power level: 95 dB(A)
Vibration value left/right: 3.4/3.2 m/s²
Chain pitch: 1/4 " P

BATTERY
Recommended battery: AP 300 S
For cutting squared wood (10x10 cm) with AP 30 battery: up to 60 minutes
For cutting squared wood (10x10 cm) with AP 30 battery: up to 300 cuts
For cutting squared wood (10x10 cm) with AP 200 S battery: up to 42 minutes
For cutting squared wood (10x10 cm) with AP 200 S battery: up to 210 cuts
For cutting squared wood (10x10 cm) with AP 300 S battery: up to 62 minutes
For cutting squared wood (10x10 cm) with AP 300 S battery: up to 310 cuts
For cutting squared wood (10x10 cm) with AP 500 S battery: up to 74 minutes
For cutting squared wood (10x10 cm) with AP 500 S: up to 370 cuts

EQUIPMENT

Tool-free fuel cap
Special oil tank cap designed for easy opening and closing without tools

Quick chain tensioner (B)
Thanks to the STIHL quick chain tensioner, it is possible to tension the chain quickly and without tools using the dedicated adjustment knob. Turning it to the left loosens the chain, while turning it to the right tightens it. Additionally, after tightening the sprocket cover, the guide bar locks automatically.

QuickStop Super chain brake (Q)
Exclusive STIHL braking system to ensure greater safety. The chain stops instantly not only in the event of a strong kickback or activation of the front hand guard, but also when releasing the rear handle.

EC Electric Motor
The electronically controlled EC electric motor operates brushless, experiences minimal mechanical wear, and impresses with a significantly higher efficiency compared to traditional electric motors. This means the battery energy is converted into maximum performance.

Quiet
Products in the COMPACT line are so quiet that headphones are not required

Transparent oil tank
Being transparent, the oil tank allows for easy and quick checking of the chain oil level. This ensures you always know when to refill the chain oil to work efficiently and durably.
