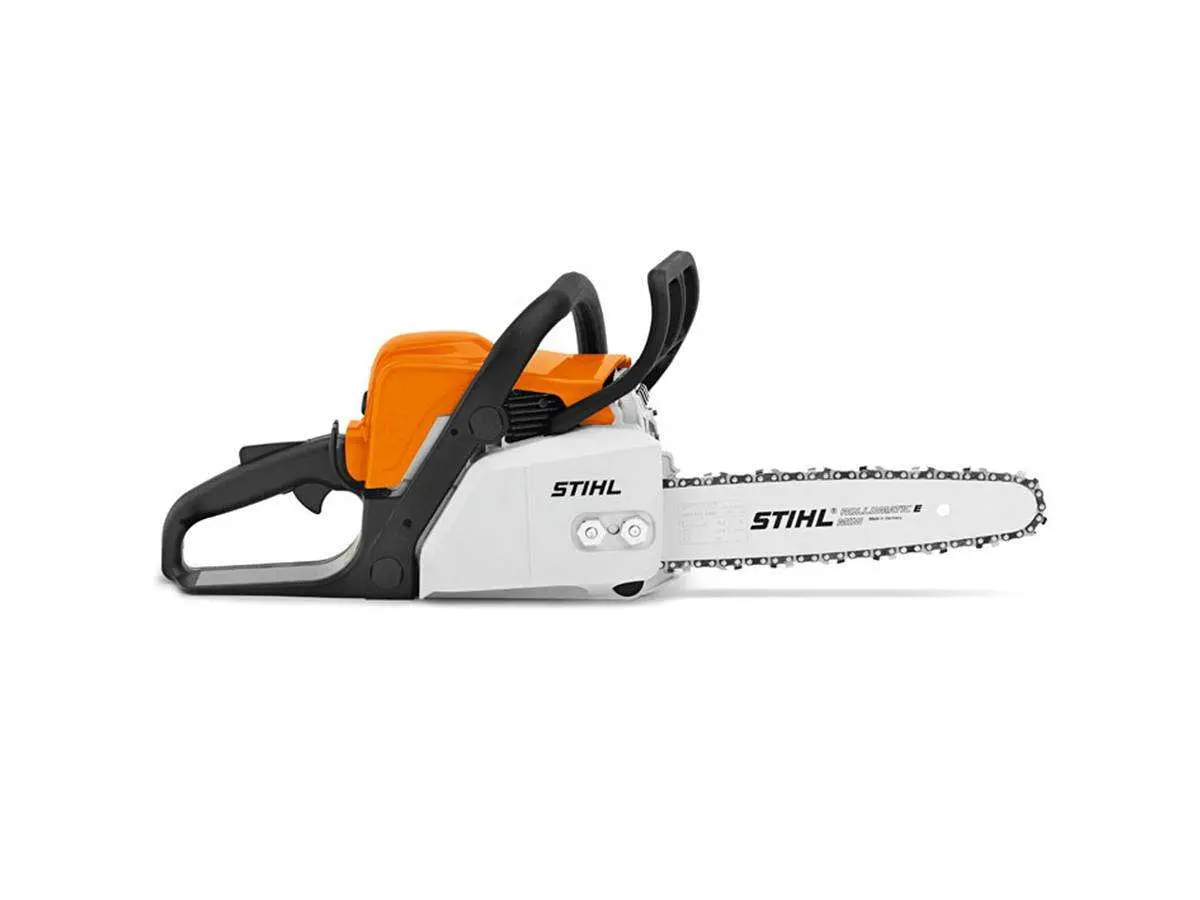

Stihl MS 170 Chainsaw - Stihl

Discontinued model
Discover the new MS 162 Chainsaw – Stihl

• Environmentally friendly thanks to up to 60% reduction in hydrocarbon emissions in the exhaust
• Excellent for firewood cutting and woodworking
• Also suitable for felling trees up to 30 cm in diameter
• Easy to use thanks to the combined lever
• Bar length: 35 cm
• Weight: 4.1 kg
• Displacement: 30.1 cm³
• Power: 1.6 HP

35 cm bar and chain included
ROLLOMATIC E MINI Bar 35 cm 3/8" P 1.1 mm 50 links
PMM3 Chain 3/8" P 1.1 mm 50 links

TECHNICAL DATA

Displacement

: 30.1 cm³
Power: 1.6 HP
Pitch: 3/8" P
Tank volume: 250 cm³
Weight: 4.1 kg (without fuel, bar and chain)
Power-to-weight ratio: 2.56 kg/HP
Recommended cutting length: 35 cm
Sound pressure level: 100 dB(A)
Sound power level: 111 dB(A)
Vibration value left: 5.2 m/s²
Vibration value right: 5.5 m/s²
Chain pitch: 3/8" P
Tank capacity: 0.25 l
Speed at Pmax: 10,000 rpm
Chain oil tank capacity: 145 cm³

EQUIPMENT

STIHL 2-MIX engine

The STIHL 2-MIX engine is powerful and economical at the same time. The separation of exhaust gases from inert gas minimizes unburned particle emissions, increasing performance and saving on consumption.

Single-lever control

All functions such as starting, operation, and stopping can be controlled with one hand.

Compensator

Allows for a constant fuel-air mixture even when the air filter becomes dirtier.

Anti-vibration system

Special damping zones precisely positioned reduce the transmission of vibrations from the engine and chain to the handle and grip.

Ematic chain lubrication system

Depending on the type of bar and wood, the STIHL Ematic system reduces chain oil consumption by up to 50%. It consists of an Ematic bar, Oilomatic chain, and an oil pump with adjustable and reduced flow. The lubricant is thus delivered precisely and with minimal loss exactly where it is needed.
