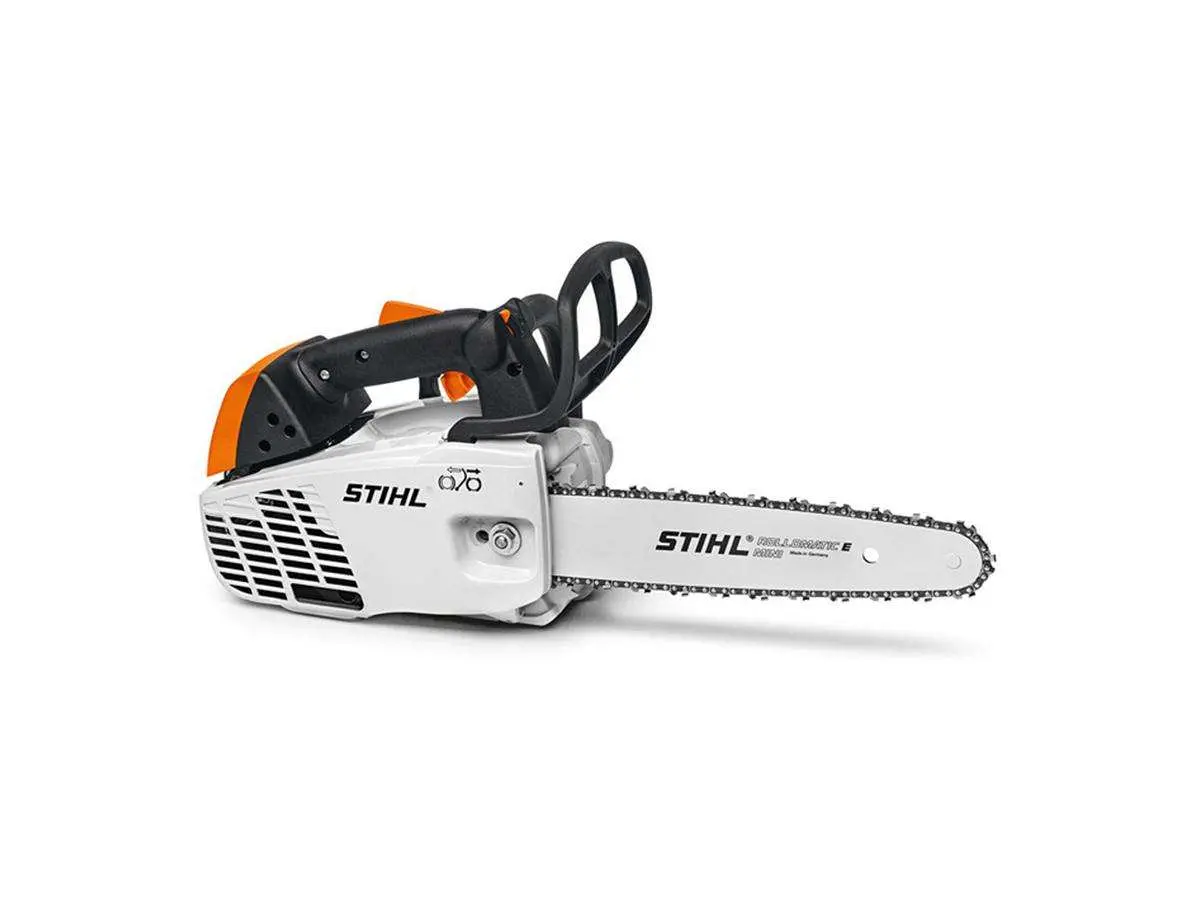

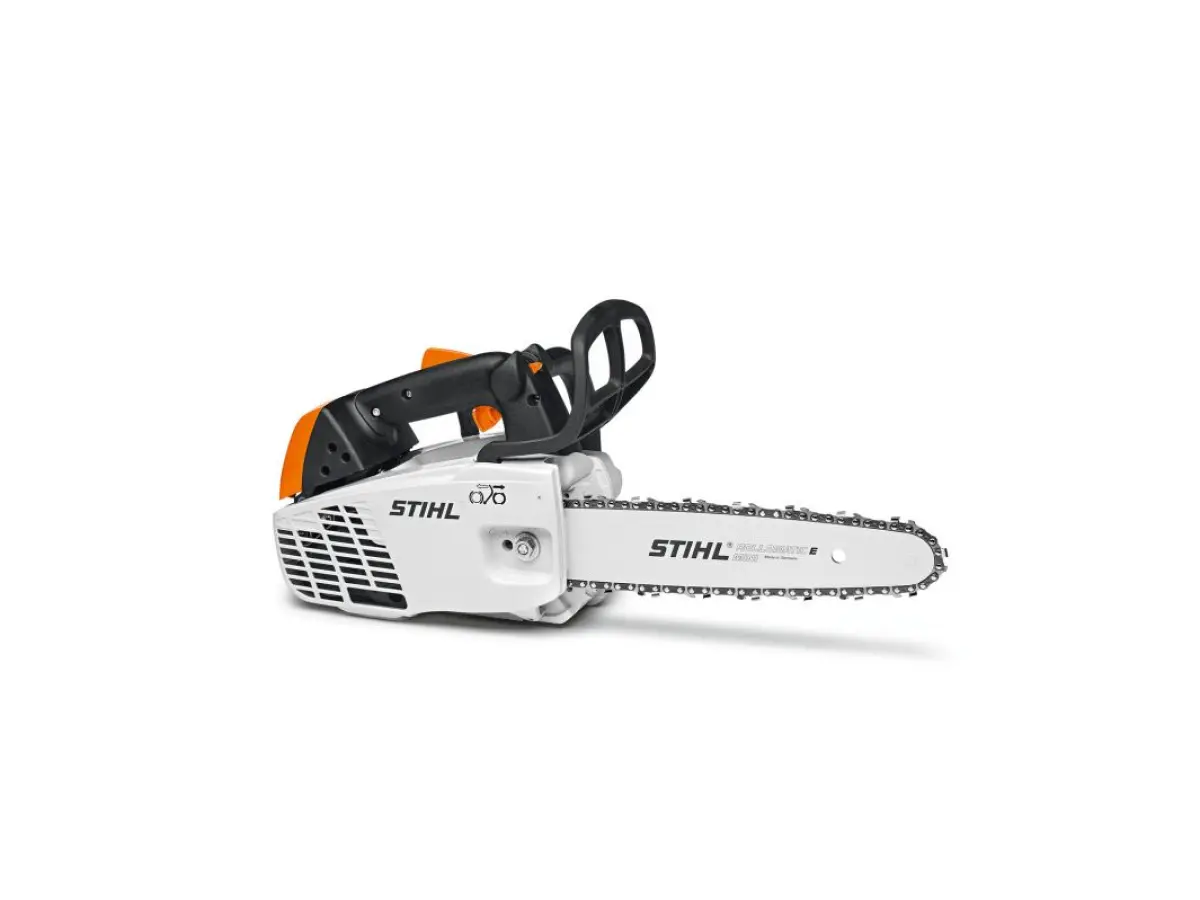

Stihl Chainsaw MS 194 TC-E

• Versatile Stihl chainsaw for tree care
• Perfect for various tasks, such as crown pruning, removal of dead branches or from stumps and trunks
• Equipped with a 3/8" PMM3 chain for precise cuts
• Superior cutting performance thanks to the new 2-Mix engine
• Bar length: 30/35 cm
• Weight: 3.3 Kg
• Displacement: 31.8 cm³
• Power: 1.9 HP

30 cm bar and 3/8" P chain included
ROLLOMATIC E MINI LIGHT chainsaw bar 30 cm 3/8 P 1.1 mm 44 links
PM3 chainsaw chain 30 cm 3/8 P 1.1 mm 44 links

35 cm bar and 3/8" P chain included
ROLLOMATIC E MINI LIGHT chainsaw bar 35 cm 3/8 P 1.1 mm 50 links
PM3 chainsaw chain 35 cm 3/8 P 1.1 mm 50 links

TECHNICAL DATA

Displacement: 31.8 cm³
Power: 1.9 HP
Pitch: 3/8" P
Tank volume: 220 cm³
Weight: 3.3 Kg (without fuel, bar, and chain)
Sound pressure level: 100 dB(A)
Sound power level: 112 dB(A)
Vibration value left: 3.6 m/s²
Vibration value right: 3.6 m/s²
Tank capacity: 0.27 l
Max rpm: 10. 500
Chain oil tank capacity: 220 cm³

EQUIPMENT

Long-life air filter with pre-filtering
This innovative system allows for a significantly longer filter life. In fact, thanks to the pre-filtering, it removes coarser dirt particles, reducing the workload of the actual filter. The chainsaw can operate longer without needing the filter to be cleaned compared to a chainsaw without this type of filter.

Single-lever control
All functions such as starting, operation, and stopping can be controlled with one hand

STIHL 2-MIX engine
The STIHL 2-MIX engine is powerful and economical at the same time. The separation of exhaust gases from inert gases minimizes unburned particle emissions, increasing performance and saving fuel

Compensator
Ensures a constant fuel-air mixture even when the air filter becomes dirtier

QuickStop (Q) chain brake
Precisely positioned damping zones reduce the transmission of vibrations from the engine and chain to the handle and grip

Ematic chain lubrication system
Depending on the bar type and wood type, the STIHL Ematic system reduces chain oil consumption by up to 50%. It consists of an Ematic bar, Oilomatic chain, and an adjustable low-flow oil pump. The lubricant is delivered precisely and with minimal loss exactly where it is needed

Anti-vibration system
Special cushioning zones placed with precision reduce the transmission of vibrations from the engine and chain to the handle and grip

Tool-free tank cap
Special caps for the fuel tank and oil tank allow easy opening and closing without difficulty.

Side chain tensioner
The chain is tensioned laterally through the sprocket. This prevents any contact between the operator’s hand and the sharp chain

HD2 filter
Keeps even the finest dust away from the engine, ensuring particularly long durability. It can be easily cleaned with water

STIHL ErgoStart (E)
Easy starting. STIHL ErgoStart halves the force needed to start the machine and reduces the starting speed by two thirds.

Manual fuel pump (Purger)
Thanks to the manual pump, fuel is directed to the carburetor, facilitating re-ignition after a long work break
