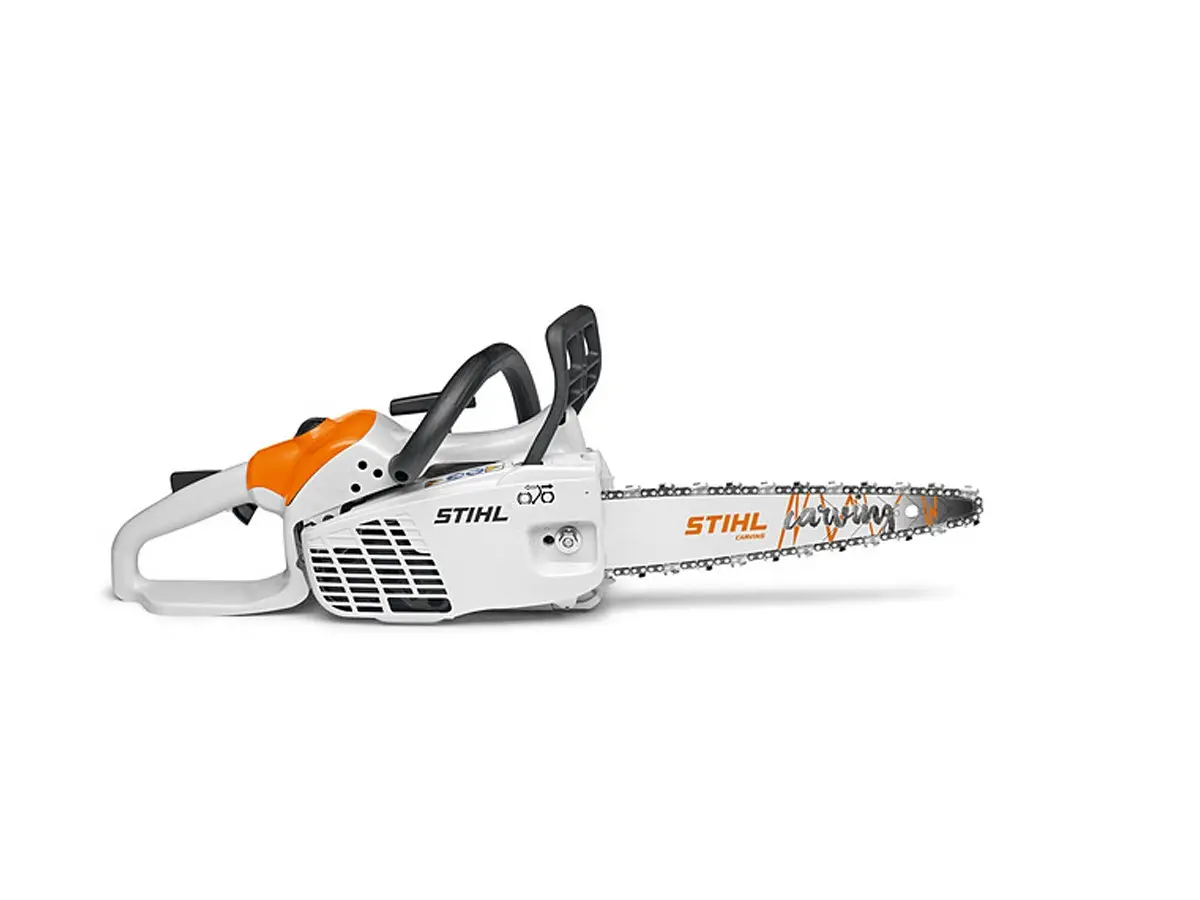

Stihl Chainsaw MS 194 C-E

• Compact Carving Chainsaw
• STIHL ErgoStart and fuel pump ensure easy and effortless starting
• Equipped with a 1/4" Carving RMS bar and chain for precise and safe work
• Equipped with a 3/8" bar and chain in the version suitable for firewood and thinning
• Superior cutting performance thanks to the STIHL 2-MIX engine
• Displacement: 31.76 cm³
• Power: 1.4 HP
• Weight: 3.6 kg

30 cm 1/4" P Carving bar included
CARVING 30 cm 1/4 1.3 mm 64-link chainsaw bar
CARVING RMS 30 cm 1/4 1.3 mm 64-link chainsaw chain

30 cm 3/8" P bar included
ROLLOMATIC E MINI 30 cm 3/8 P 1.1 mm 44-link chainsaw bar
PM3 30 cm 3/8 P 1.1 mm 44 Links Chainsaw Chain


TECHNICAL DATA

Displacement: 31.76 cm³
Power: 1.4 HP
Weight: 3.6 Kg
Power-to-weight ratio: 2.6 kg/kW
Total weight: 4.1 kg
CO2: 896 g/kWh
Sound pressure level: 101 dB(A)
Sound power level: 114 dB(A)
Vibration value left/right: 3.6/3.6 m/s²
Chain pitch: 1/4" or 3/8"

EQUIPMENT

Anti-loss nuts
When mounting the chain sprocket cover, the nuts are always positioned correctly, with no risk of tilting – only a few adjustments are needed. Each nut can be tightened independently of the others

Compensator
Ensures a constant fuel-air mixture even when dirt increases in the air filter

STIHL 2-MIX Engine
The two-stroke engine with STIHL 2-MIX technology enables up to 20% fuel savings and reduces harmful emissions by up to 70% compared to STIHL two-stroke engines of the same power without 2-MIX technology

STIHL ERGOSTART
Easy starting. STIHL ErgoStart halves the force needed to start the machine and reduces the starting speed by two thirds. A spiral spring, between the recoil starter spool and the crankshaft, compensates for force peaks to prevent them from being transmitted to the rope

1-in-4 STIHL Port Technology
1-in-4 channel technology – high torque across a wide range of speeds

Side Chain Tensioner
The chain is tensioned laterally through the sprocket.

Air Filter
Direct access to the filter – carburetor body cover removable without tools
