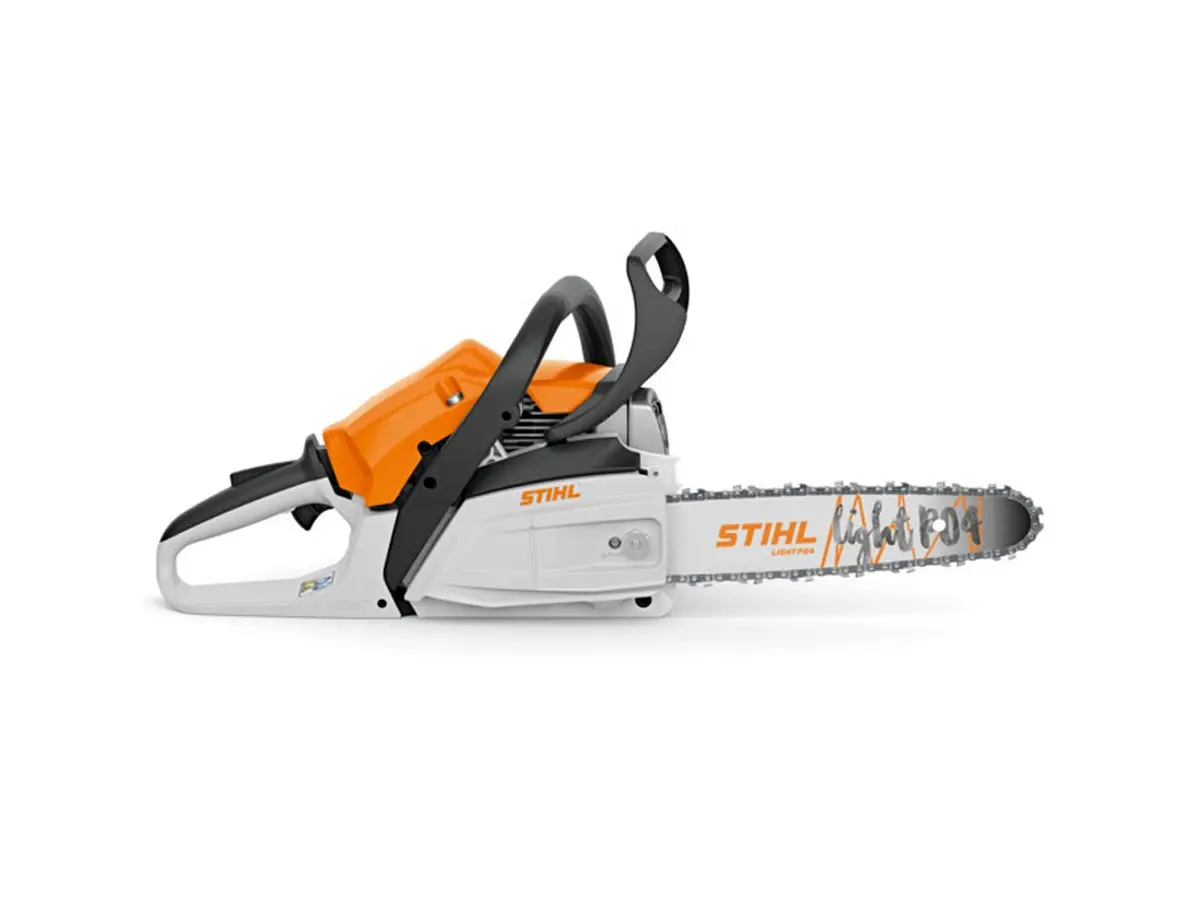

Stihl Chainsaw MS 172

• Compact model for hobbyists, with excellent basic equipment
• Ideal for cutting firewood and small woodworking tasks
• Also suitable for felling trees with a diameter up to 30/35 cm
• Bar length: 30/35 cm
• Weight: 4.5 Kg
• Displacement: 31.8 cm³
• Power: 1.9 HP

35 cm bar and chain included
Rollomatic E 35 cm 3/8″P 1.3 mm bar
PM3 chain 35 cm 3/8″P 1.3 mm

40 cm bar and chain included
Rollomatic E 40 cm 3/8″P 1.3 mm bar
PM3 Chain 40 cm 3/8″P 1.3 mm

TECHNICAL DATA

Displacement: 31.8 cm³
Power: 1.9 HP
Tank volume: 250 cm³
Weight: 4.5 Kg (without fuel, bar and chain)
Complete weight: 4.98/5.05 Kg (without fuel, with bar and chain)
Power-to-weight ratio: 3.3 kg/kW
Sound pressure level: 101 dB(A)
Sound power level: 114 dB(A)
Vibration value left: 3.5 m/s²
Vibration value right: 3.2 m/s²
Chain pitch: 3/8 ”P

EQUIPMENT

Combined lever with stop function
EASY TO USE. The combined lever requires only one start position. After switching off, the control lever automatically returns to the operating position thanks to the stop function. If the engine is still warm, it can be restarted directly.

Lateral chain tensioning
SIMPLE AND SAFE TENSIONING. The side chain tensioner allows easy, quick, and safe chain tensioning and replacement. The tensioning screw is operated laterally through the sprocket cover.

STIHL 2-MIX engine
PARTICULARLY ENERGY EFFICIENT. Thanks to the STIHL 2-Mix engine, it is possible to reduce not only exhaust emissions but also fuel consumption and operating costs. This 2-stroke engine requires little maintenance and uses fuel efficiently even at high performance. The fuel consists of a mixture of gasoline and engine oil. The STIHL 2-Mix engine complies with the strict European Stage V emission directive

Anti-vibration system
MORE PLEASANT WORK ENVIRONMENT. The power delivery of the tool generates vibrations that are mainly felt in the handle area. The dampers and compensating elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle and thus to the user's body. As a result, the device can be held more comfortably and allows for less tiring work

Compensator
REDUCED MAINTENANCE. By compensating pressure, a regulation system inside the carburetor called the compensator ensures that despite increased air filter contamination, engine power, exhaust gas quality, and fuel consumption remain almost constant for a long period. Therefore, the air filter only needs to be cleaned when a noticeable drop in performance is observed. This allows for extended work without maintenance interruptions

Transparent oil tank
EASE OF LEVEL CHECKING. Being transparent, the oil tank allows for a simple and quick check of the chain oil level.

STIHL 1-in-4 channel technology
1-in-4 channel technology - high torque across a wide range of speeds
