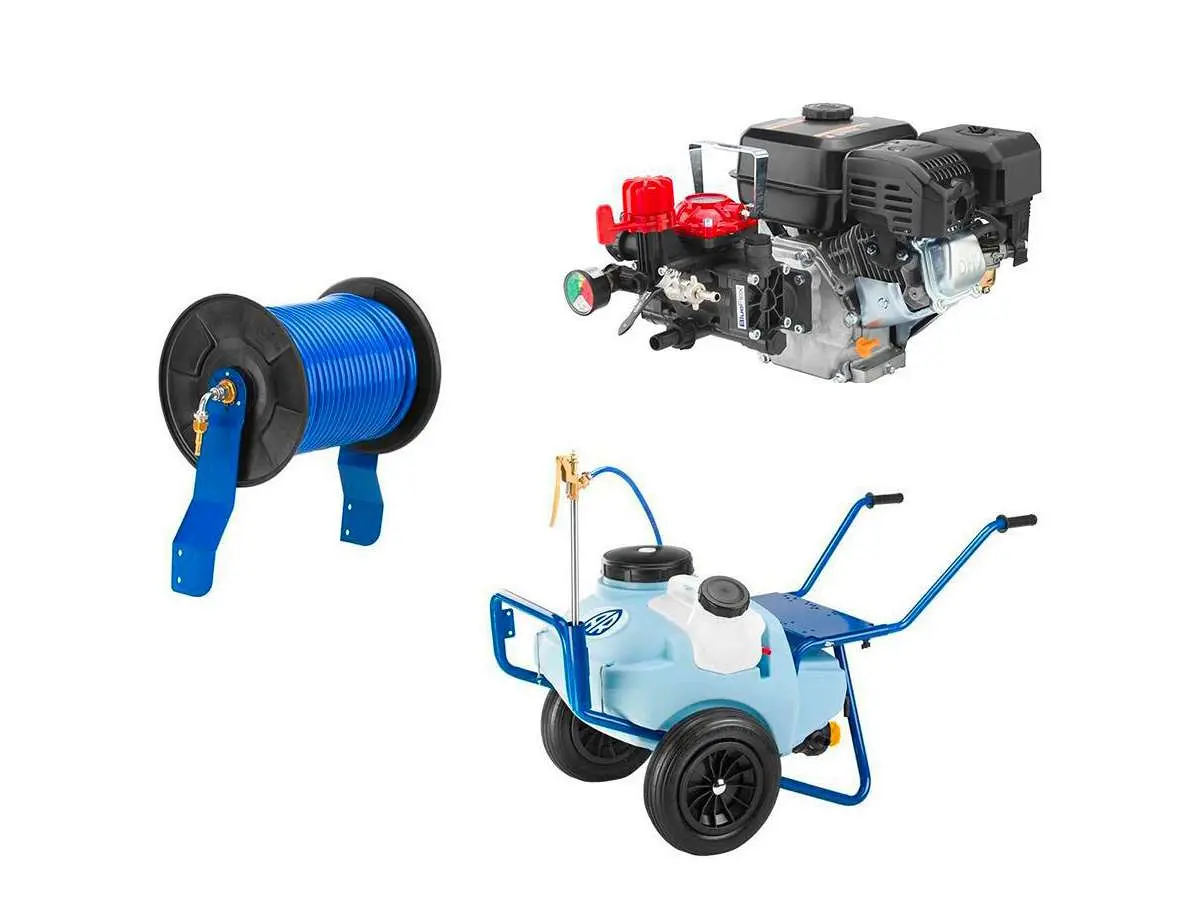

Annovi reverberi 130 l Spraying Kit with Electric Motor - Annovi Reverberi

• Single-phase 2-pole electric pump 220/240volt 50Hz
• Max flow rate: 246 l/min
• Power: 1.5 Hp
• Motor base equipped with switch, cable, and plug
• The AR252 2-diaphragm pump is equipped with a pressure adjustment knob from 0 to 25 bar and an integrated stop
• It also features a glycerin-filled pressure gauge for monitoring pressure and a discharge control valve

TECHNICAL DATA

Version:

AR 252 EM
No. of diaphragms: 2
Max flow rate: 246 l/min
Max flow rate: 6.5 gpm
Max pressure: 25 bar
Max pressure: 362 psi
Power: 1.5 Hp
RPM: 2800 Rpm
Weight: 18 Kg
Suction: ø 20 mm
Discharge: ø 10 mm
Max temperature: 60 C°

PUMP

Type: AR 252 AP
Version: SP SGC
No. of diaphragms: 2
Flow rate: 24.6 l/min
Flow rate: 6.5 gpm
Pressure: 25 bar
Pressure: 362 Psi
Power: 1.42 Hp
RPM: 650 rpm
