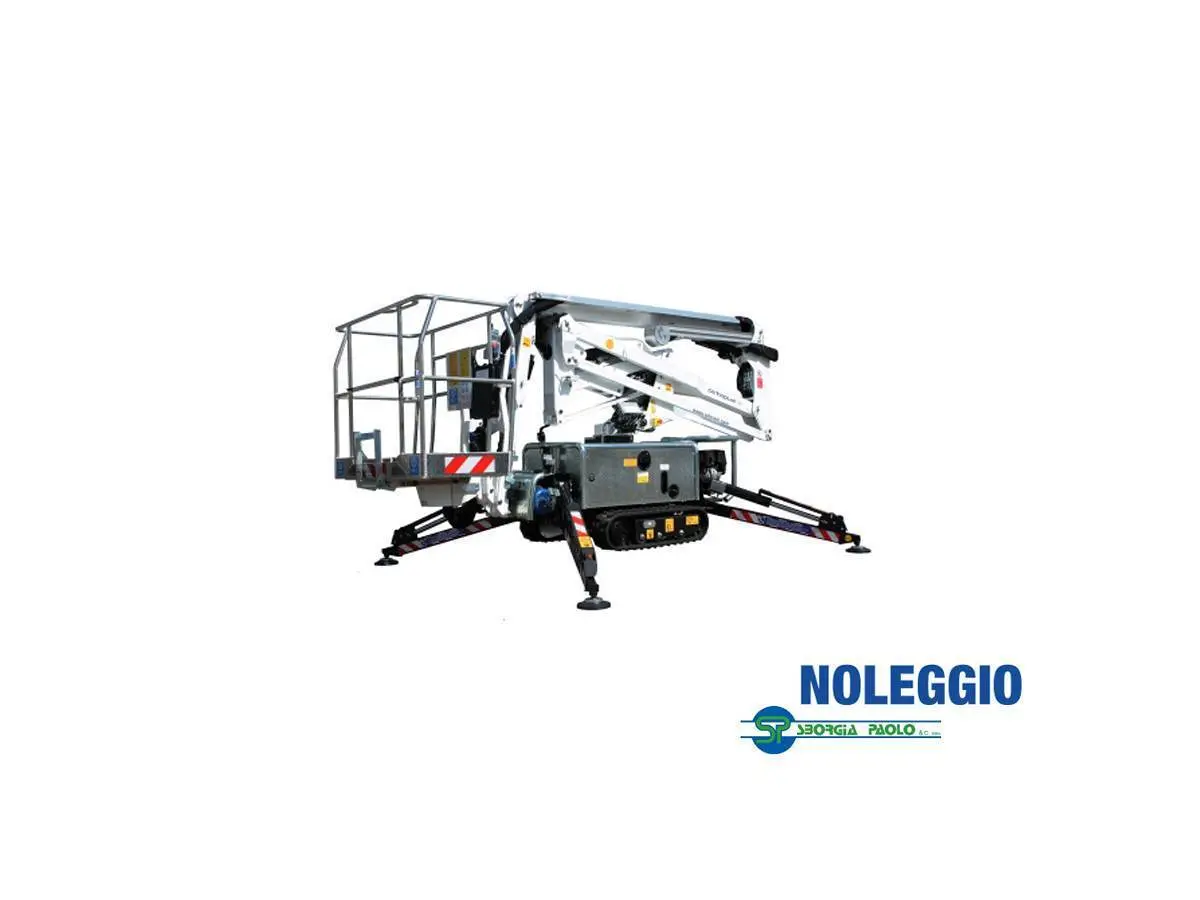

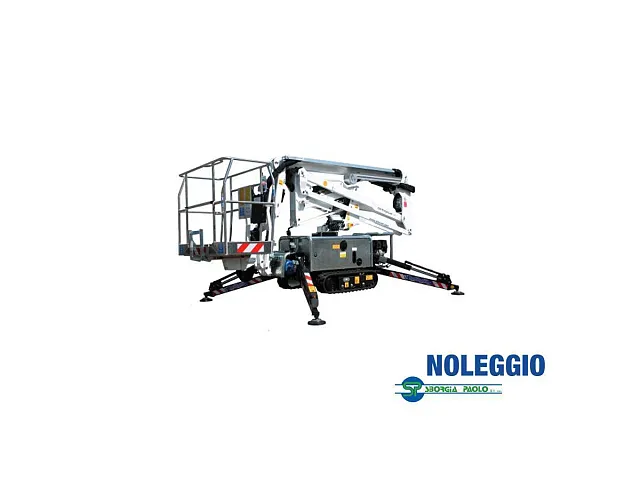

Noleggio OCTOPUSSY 1412 crawler platform - RENTAL
Code: CUS-483
Other information
- TWO-SEATER PLATFORMS
Octopussy 1412 TWIN is the best choice for two operators who need to perform height interventions together - This model is equipped with a special load limiter with a digital display that allows the operator, before lifting, to select the work area for one or two operators
- This device ensures absolute safety during work at height
TECHNICAL DATA
Capacity 1 Operator:
120 Kg
Max working height: 14 m
Platform height: 11.9 m
Max working outreach: 6.4 m
Capacity 2 Operators: 200 Kg
Max working height: 12.3 m
Platform height: 10.3 m
Max working outreach: 5.7 m
Superstructure rotation: 300°
Removable platform: 1400 x 700 x h1100 mm (ALUMINUM)
Controls: hydraulic
Stabilization: fold-down hydraulic
Height at rest: 1960 mm
Length at rest: 4000 mm
Width in motion: 780 mm
Engine: silenced single-cylinder Honda / electric 220V
Machine weight: 1630 Kg
