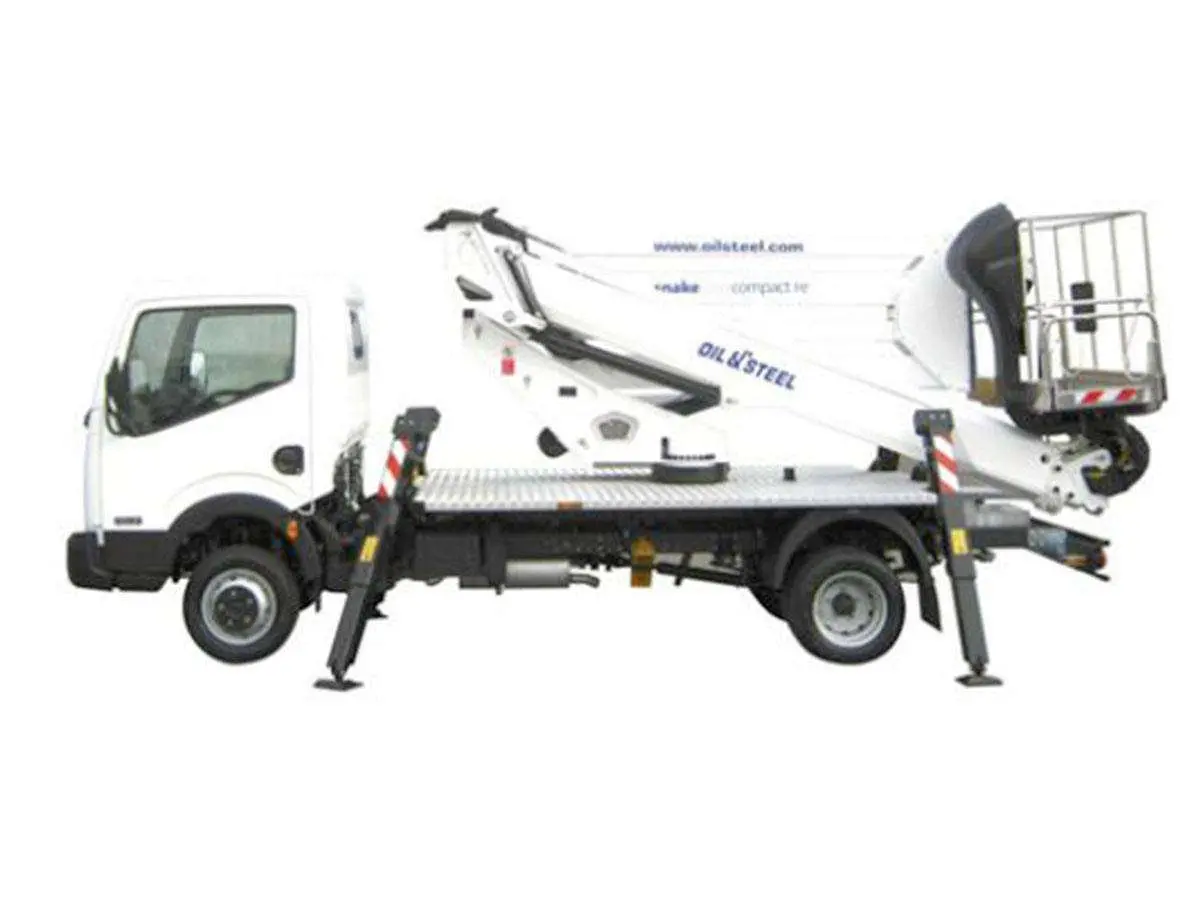

Noleggio Nissan CABSTAR 20MT platform - RENTAL
Code: CUS-484
Other information
- The articulated platform stands out for its maximum reachable height, which is 25 meters on a B LICENSE vehicle, as well as for its ease of use and the “A” type stabilization; in fact, the stabilizer outriggers can be extended or retracted, thus allowing for different working areas
- The lower telescopic arm gives the machine the ability to raise the articulation hinge of the working arm to height and therefore to overcome obstacles at height: it is distinguished by its total full load weight (only 3,500 kg) and by the smallest overall dimensions of the truck in motion
- Proportional hydraulic control with speed regulation of all movements both from the basket and from the ground
• Hydrostatic parallelism of the basket.
• Hydraulic outlet for the telescopic extensions of the arm.
• Pipes and cables installed inside the arm.
• Lock valves on every movement.
• Emergency hand pump
• Engine stop button in case of failure
• Engine start and stop from the basket
• Device preventing telescopic extension and turret rotation with arm at rest
• Automatic arm centering device for resting position
TECHNICAL DATA
Max working height:
20 m
Basket floor height: 20 m
Max working outreach: 9.20 m (200 kg) - 12.20 m (80 kg)
Turret rotation: 400°
Telescopic arm stroke: 11.80 m
Max basket dimensions: 1.40x0.70x1.10 m
Basket capacity: 200/80 kg
Hydraulic basket rotation: 90°+ 90°
Permissible slope: 1°
Stabilization: EX: hydraulically extended lateral stabilizers
