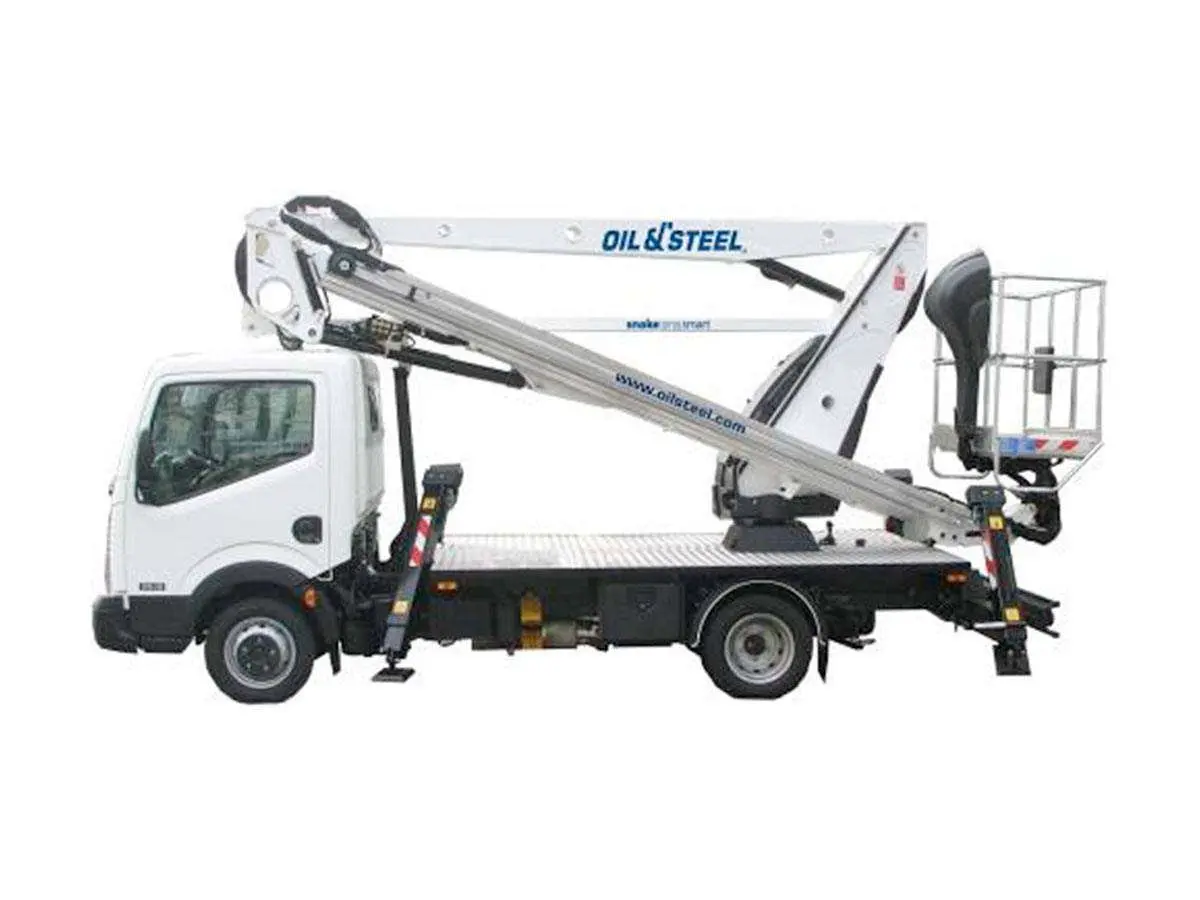

Noleggio Nissan CABSTAR 18MT platform - RENTAL
Code: CUS-482
Other information
ACCESSORIES
TECHNICAL DATA
Max working height:
- 220 V single-phase AC generator, 380 V three-phase AC at 8 K with hydraulic coupler and column distribution panel (with auxiliary engine)
- 60 W lighting spotlight on the platform powered by the truck batteriesSingle-phase 220 / 110 V AC socket with differential switches
- 12V DC socket on the basketAdhesive lettering on the boom (customer logo, please send the file in jpg format)12V electric pump for emergency descent
- 12V yellow magnetic rotating beaconFRP basket replacing the standard size 1400X700X1100h mm
- FRP basket replacing the standard size 1400X700X1100h with 1000 V insulation
- Hydraulic oil heat exchanger for hot climates
- Non-standard painting (white RAL 9016)
- Cold climate painting (white RAL 9016)
- Cold climate painting different from standard (white RAL 9016)
- Machine waxing for sea transport
- White/red retroreflective strips for truck
- Automatic stabilization with wired remote control
- Structural transport frameLoad distribution plates
- Max working height 2 operators (m) 17.8
- Platform height 2 operators (m) 15.8
- Max working outreach 2 operators (m) 8.7
- Capacity 2 operators (kg) 225
- Superstructure rotation 400°
- Platform 1400x700x h1100 mm - Aluminum
- Controls Proportional hydraulic type
- Platform rotation 90° right + 90° left
- Scissor lift Double steel bar
- A-type stabilizers
- Minimum installation (t) 5
TECHNICAL DATA
Max working height:
18.00 m
Total weight: 3500 kg
Max working outreach With 200 Kg in the basket: 9.8 m ± 5%
With 80 Kg in the basket: 12.9 m ± 5%
Max basket capacity: 200 kg
Overall dimensions Length: 6.8 m
Height: 2.8 m
Width: 2.1 m
Width with stabilizers: 3.5 m
