Other information

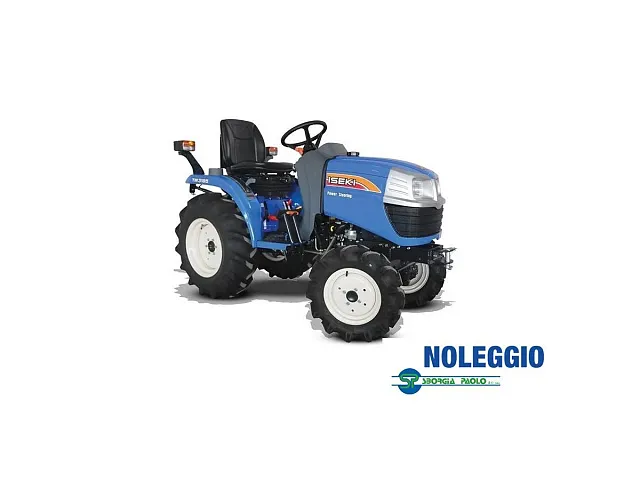

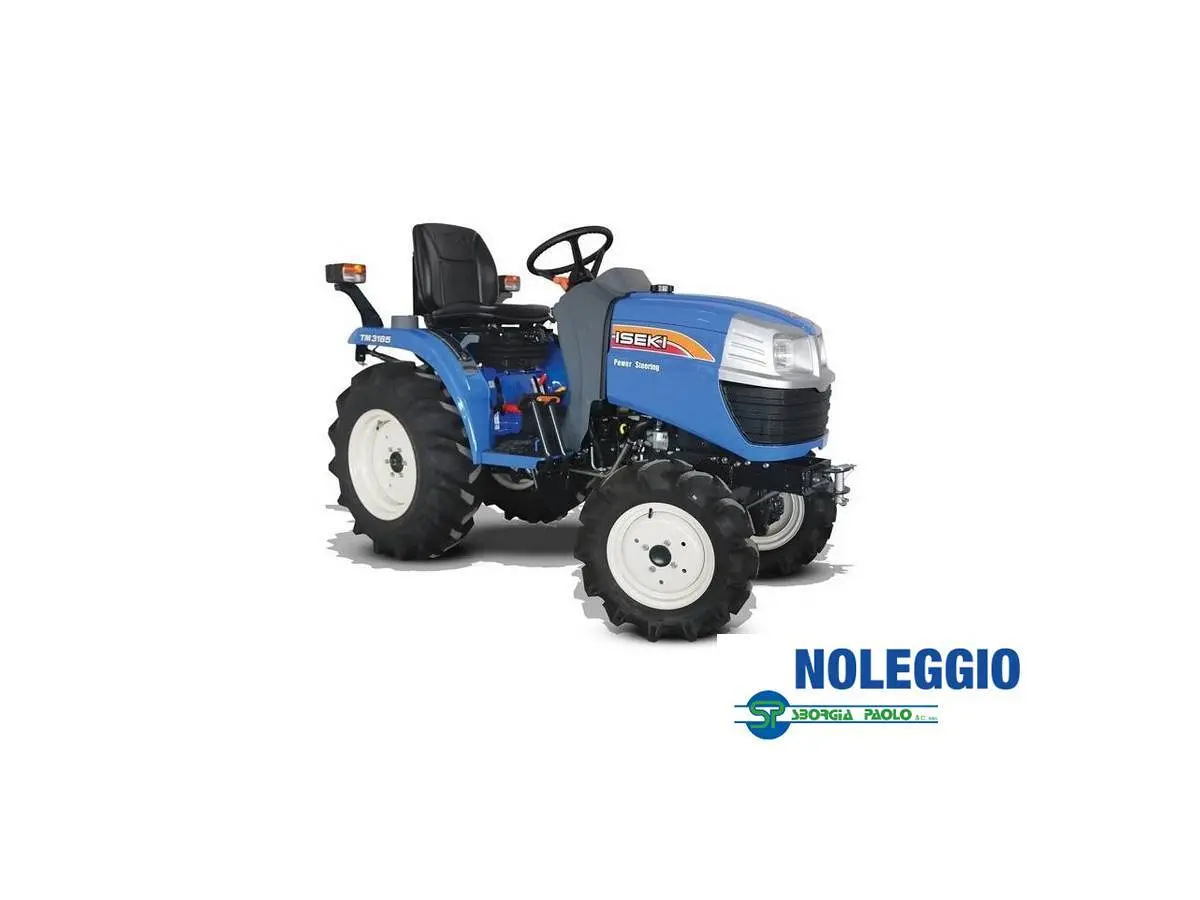

- TM 3185 is highly intuitive
- The multicolored control levers ensure order and clarity to guarantee easy machine operation
- You will also appreciate the comfort of the soft rubber mat covering the platform
- The pedals are also covered; the high-quality rubber used makes them non-slip to ensure the stability of distraction-free work
- The tractor is equipped with a brand-new control panel that informs the operator of all the main driving parameters through the timeless analog device: DIGITAL HOUR METER, ENGINE TEMPERATURE, AND DISPLAY WITH WARNING LIGHTS
TECHNICAL DATA
Engine:
3-cylinder Diesel, water-cooled
Power: 11.6 kW @ 2,700 rpm
Maximum power: 18HP
Displacement: 761 cm^3
Tank capacity: 14 liters
Main Clutch: Single-disc clutch
Number of Gears: 6 forward / 2 reverse
PTO: Rear 540 rpm - Front 2000 rpm (optional)
Differential lock: standard on rear axle
Brakes: Mechanical - multi-disc oil bath
Maximum speed: 22.1 km/h forward / 11.4 km/h reverse
Four-Wheel Drive (4WD): standard with engagement
Third Pedal: Mechanical
Hydraulic System: 13.5 l/min (working hydraulics)
Rear lift load capacity: 500 kg at the hitch points
Three-point hitch: Adjustable
Towing hook: STD standard / CUNA optional for agricultural approval
Headlights: Road-approved standard
Onboard voltage: 12 volts
Total length: 2450 mm
Wheelbase: 1270 mm
Minimum turning radius: 2400 mm
Weight: 485 kg empty / 530 kg with ROPS
Towing capacity: 1500 kg (with brake) / 750 kg (without brake)
