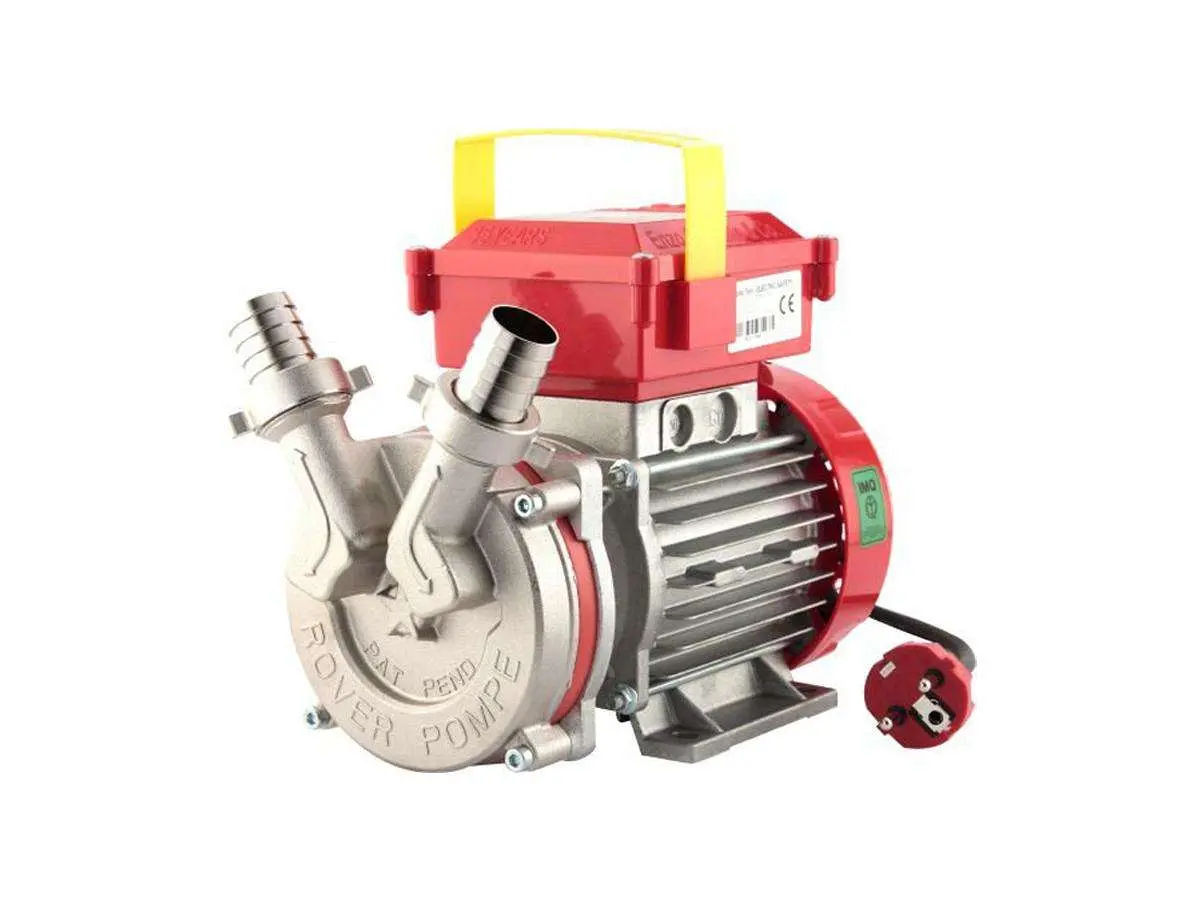

Rover NOVAX 25 M OIL Self-Priming Electric Pump - Rover
Code: ELRVOL25
Fast delivery with value insured
Secure payments
Other information
- Semi-professional self-priming liquid ring pump, with star-shaped impeller geometry
- Equipped with standard reversible rotation, featuring a high-efficiency motor designed for continuous operation.
- Suitable for use with all types of common clean liquids, which must not be chemically aggressive or abrasive
- Motor: 0.6 hp
- Diameter Ø: 25 mm
- Weight Kg. 6
- Dimensions 250 x 120 h 190 mm
- Mounting hole spacing: 80 x 100 mm
- Angle between hose connectors: 60°
- Hose connector diameter: 25 mm
- Hose connector thread: 1" GAS BSP
WHAT IT IS
The special hydraulic geometry allows the pump to operate even in the presence of air bubbles in the suction liquid. It is manufactured using our special NOVAX™ technology, thanks to which all surfaces are treated specifically for temporary contact with food liquids, ensuring greater chemical and wear resistance. For IMQ-certified pumps, electrical safety is also guaranteed by permanent monitoring from www.imq.it
HOW IT WORKS
The liquid ring pump achieves suction capability simply by filling the pump body through one of the hose connectors. The suction capability is active in both directions of rotation.
WHICH LIQUIDS IT CAN TRANSFER
The pump can be used to transfer all types of common clean liquids, which must not be chemically aggressive or abrasive. Some examples: water, wine, milk, vinegar, low-viscosity oily solutions, neutral fluid detergents, diesel fuel. The liquid viscosity must not exceed 4 cps for continuous operation with free discharge, and must not exceed 20 cps for intermittent operation with free discharge and operator supervision.
MAINTENANCE
Regular maintenance requires few and simple actions, similar to a common household appliance. After use, clean water must be transferred to rinse the internal surfaces of the pump. The electric motor requires no maintenance, and there are no parts to lubricate. External parts should be cleaned with a slightly damp sponge, then immediately dried with a cloth.
