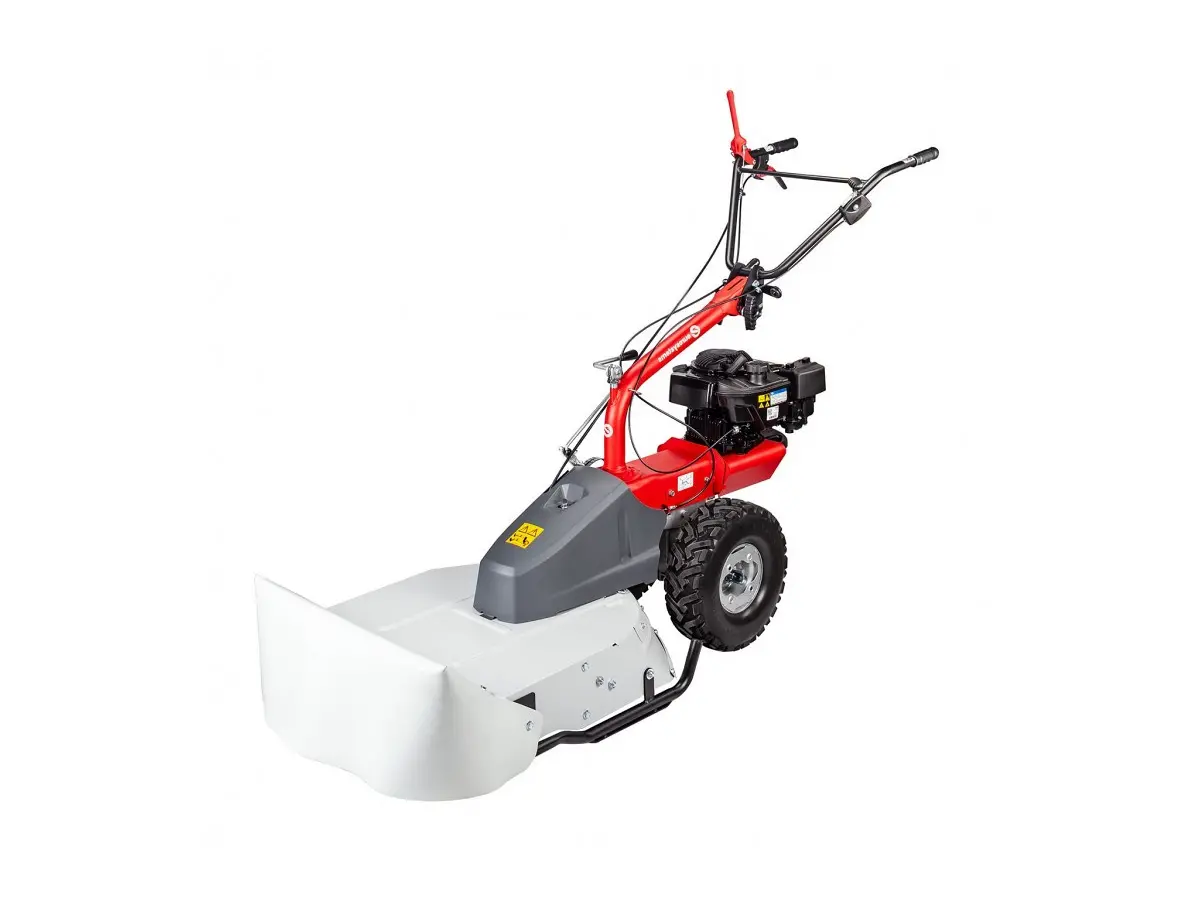

Eurosystems P70 EVO Mower with Loncin Engine

• Evolution of the original P70 launched in 2009, this machine features the widest range of semi-professional tools on the market and can be used in all 4 seasons
• The P70 EVO is extremely robust and reliable, offers high work performance on medium-sized plots, and is capable, thanks to a special kit, of operating safely even on steep terrain with a maximum slope of 45°: undoubtedly one of the greatest successes in the history of EUROSYSTEMS

TECHNICAL DATA

TOOL
Transmission: gears and worm screw in oil bath and belts
Gearbox: front tool 3 FW + 2 RW, 3 forward gears and 2 reverse gears, rear tool 2 FW + RW, 2 forward gears and 1 reverse gear
Speed: rear tool: FW 2.1 – 1.1 Km/h, RW 1.1 Km/h
front tool: FW 3.5 – 2.5 – 1.1 Km/h, RW 2.1 – 1.1 Km/h
Handlebar: vertically and laterally adjustable yoke, reversible
Control levers: ergonomic with integrated safety system
PTO: vertical, belt-driven; quick coupling system
Drive wheels: tractor, pneumatic 15×6.00-6"
Weight: 58-61 Kg
Dimensions: 57x135x110(h) cm

ENGINE
Engine: Loncin 224 OHV
Fuel: gasoline
Starting system: pull start
Displacement: 224 cc
Power: 4.4 kW
Tank capacity: 1.4 liters

EQUIPMENT

MOWER DECK
Operation: cross rotor, 6 pivoting blades
Frame: sheet metal
Working width: 63 cm
Adjustments: cutting height 5 or 8 cm, fixed positions
RPM: 2300 - 2400
Other: sheet metal side skids, sheet metal bumper and front protective cover
Recommended use: up to 5,000 sqm
Net weight: 25 Kg
Dimensions: 68 x 92 x 48 cm

TILTING ENGINE KIT
11 Kg ballast with support
Use: system to allow the engine to work laterally on slopes up to 45°
